Chapter 2: Jumpers and Connectors

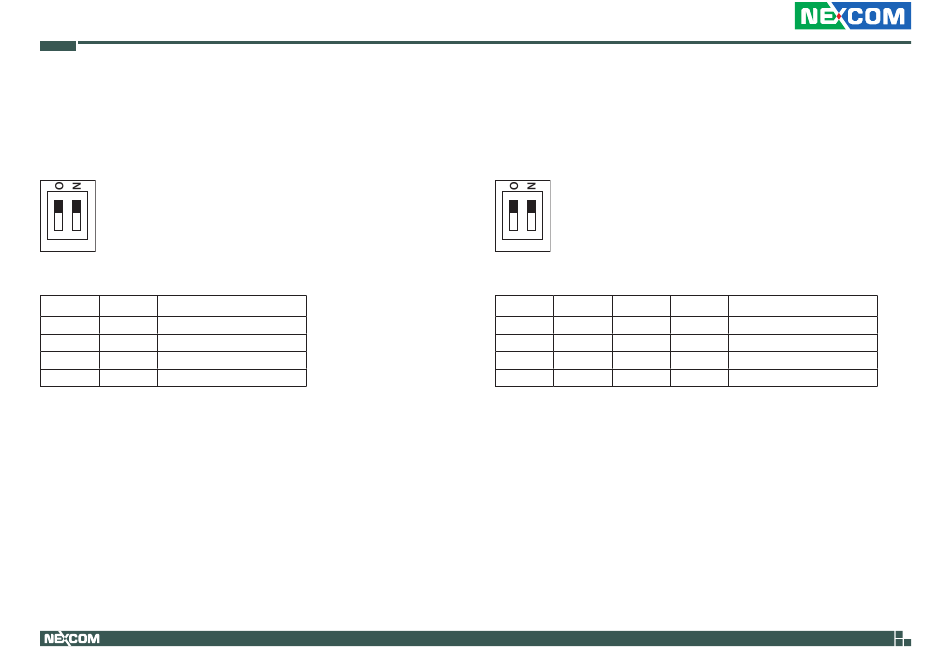

LVDS Resolution Select
Connector type: 2-pin DIP switch
Connector location: SW5
1 2
SW5-1
SW5-2
Resolution
OFF
OFF
1024 x 768
ON
OFF
1280 x 1024
OFF
ON
1366 x 768
ON
ON
1920 x 1080
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
PWN Reverse/Function Key Dimming Select
Connector type: 4-pin DIP switch
Connector location: SW6
1 2
SW6-1
SW6-2
SW6-3
ON
OFF
X
OFF
ON
X
X
X
ON
X
X
OFF
42
SW6-4
Settings
X
PWN Dimming
X
PWN Dimming Reverse
OFF
IPPC Dimming
ON
MPPC Dimming
IPPC 1560T/1960T/2160P Series and APPC 1560T User Manual
