Chapter 2: Jumpers and Switches

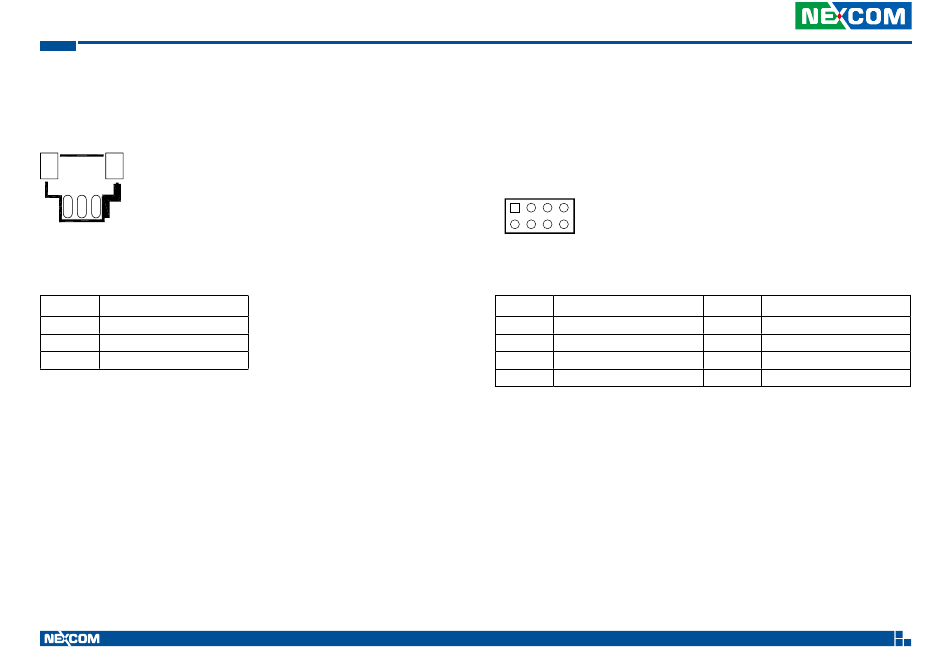

MCU DEBUG Port
Connector size: 1 x 3 = 3-pin header
Connector location: JP1
3
1
Pin
Definition
1
MCU-TX2
2
GND
3
MCU-RX2
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
MCU Download Port
Connector size: 2 x 4 = 8-pin header
Connector location: JP2
1
7
2
8
Pin
Definition
1
+V3.3ALW
3
GND
5
MCU_SWCLK
7
NC
26
Pin
Definition
2
MCU_NRST
4
NC
6
MCU_SWDIO
8
GND
VTC 210 Series User Manual
