Chapter 2: Jumpers and Connectors

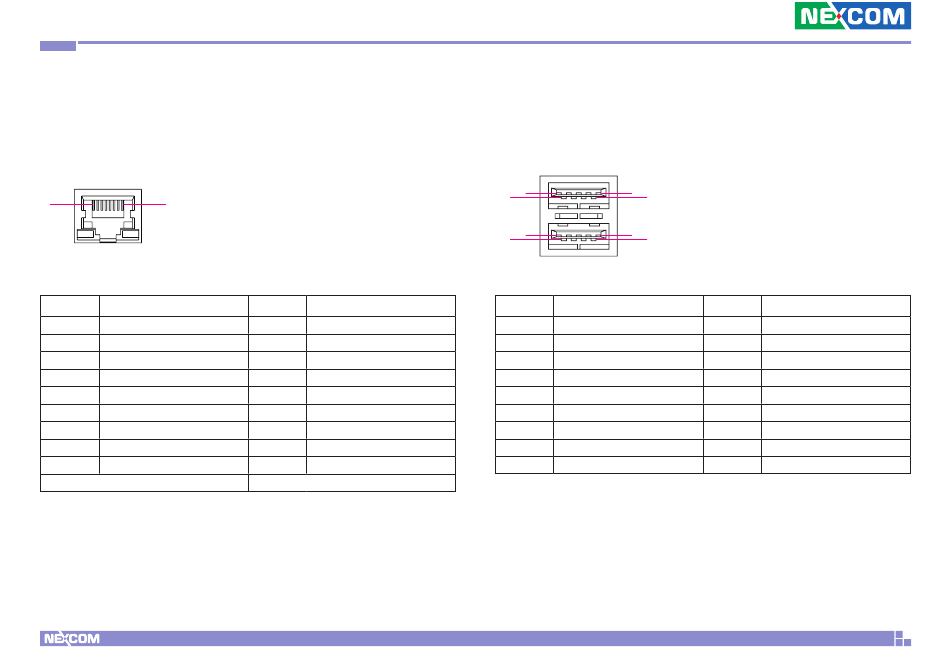

LAN Connector

Connector type: RJ45 port with LEDs
Connector location: CON1
1 8
Pin Definition
1 TCT
3 TD4+
5 TD3+
7 TD2+-
9 TD1+-
11 LED_Y+
13 LED_O-
NH1 NH1
MH1 MH1
Left-LED: Link/Active:Green
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 TD4-
4 TD3-
6 TD2-
8 TD1-
10 TCTG
12 LED_Y-
14 LED_G-
NH2 NH2
MH2 MH2
Right-LED: 1G/100:Green/Orange

USB 3.0 Connectors

Connector type: USB 3.0 port, Type A
Connector location: USB1 and USB2
18 14
10
9 5
1
Pin Definition
1 VCC
3 USB0_P
5 USB3_RX0_N
7 GND
9 USB3_TX0_P
11 USB1_N
13 GND
15 USB3_RX1_P
17 USB3_TX1_N
11
13
4
Pin Definition
2 USB0_N
4 GND
6 USB3_RX0_P
8 USB3_TX0_N
10 VCC
12 USB1_P
14 USB3_RX1_N
16 GND
18 USB3_TX1_P
