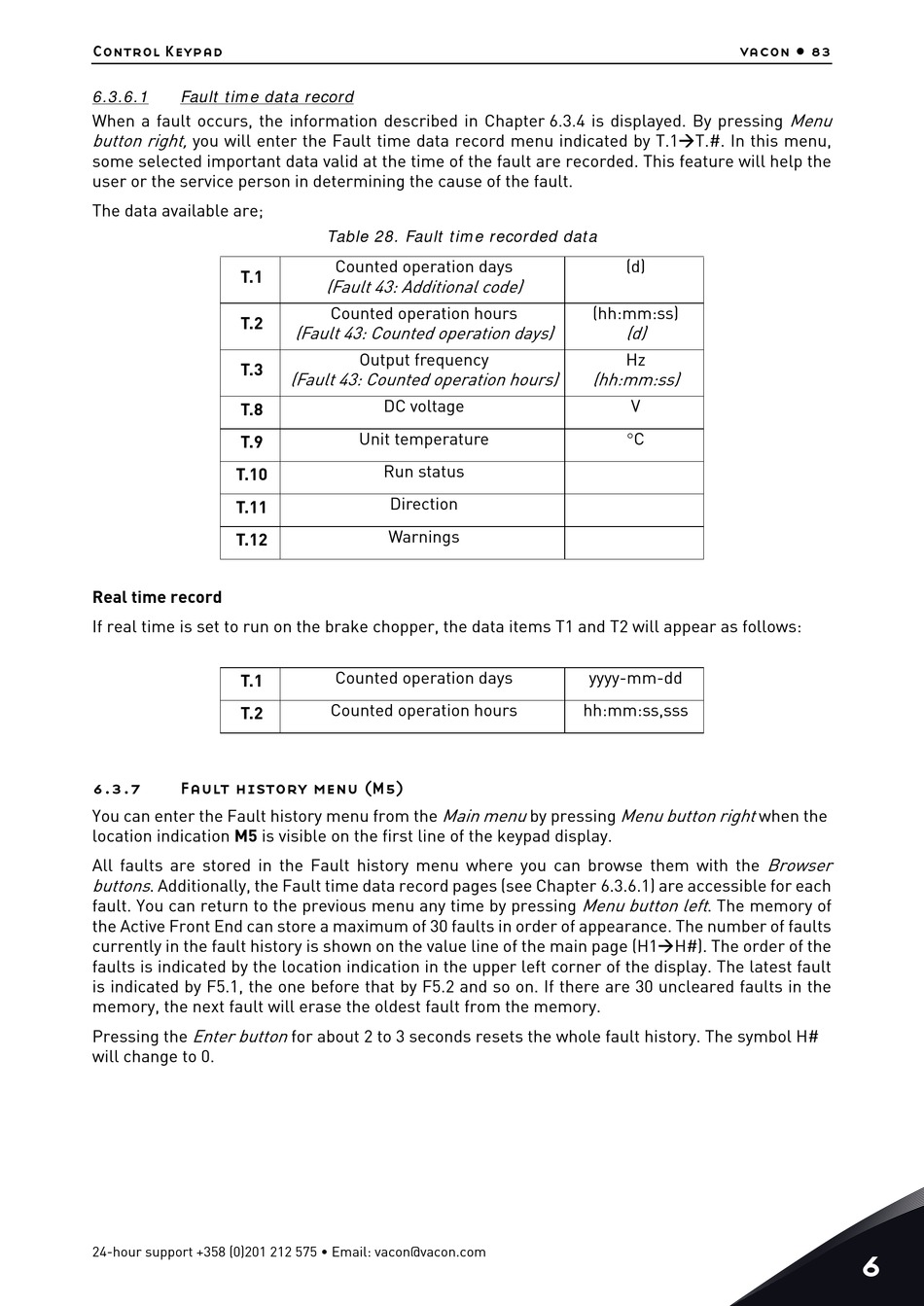

6.3.6.1 Fault time data record
When a fault occurs, the information described in Chapter 6.3.4 is displayed. By pressing
button right, you will enter the Fault time data record menu indicated by T.1T.#. In this menu,
some selected important data valid at the time of the fault are recorded. This feature will help the
user or the service person in determining the cause of the fault.
The data available are;
T.1
T.2
T.3
T.8
T.9
T.10
T.11
T.12
Real time record
If real time is set to run on the brake chopper, the data items T1 and T2 will appear as follows:
T.1
T.2
6.3.7

Fault history menu (M5)

You can enter the Fault history menu from the
location indication M5 is visible on the first line of the keypad display.
All faults are stored in the Fault history menu where you can browse them with the
buttons . Additionally, the Fault time data record pages (see Chapter 6.3.6.1) are accessible for each
fault. You can return to the previous menu any time by pressing
the Active Front End can store a maximum of 30 faults in order of appearance. The number of faults
currently in the fault history is shown on the value line of the main page (H1H#). The order of the
faults is indicated by the location indication in the upper left corner of the display. The latest fault
is indicated by F5.1, the one before that by F5.2 and so on. If there are 30 uncleared faults in the
memory, the next fault will erase the oldest fault from the memory.
Enter button
Pressing the
will change to 0.
