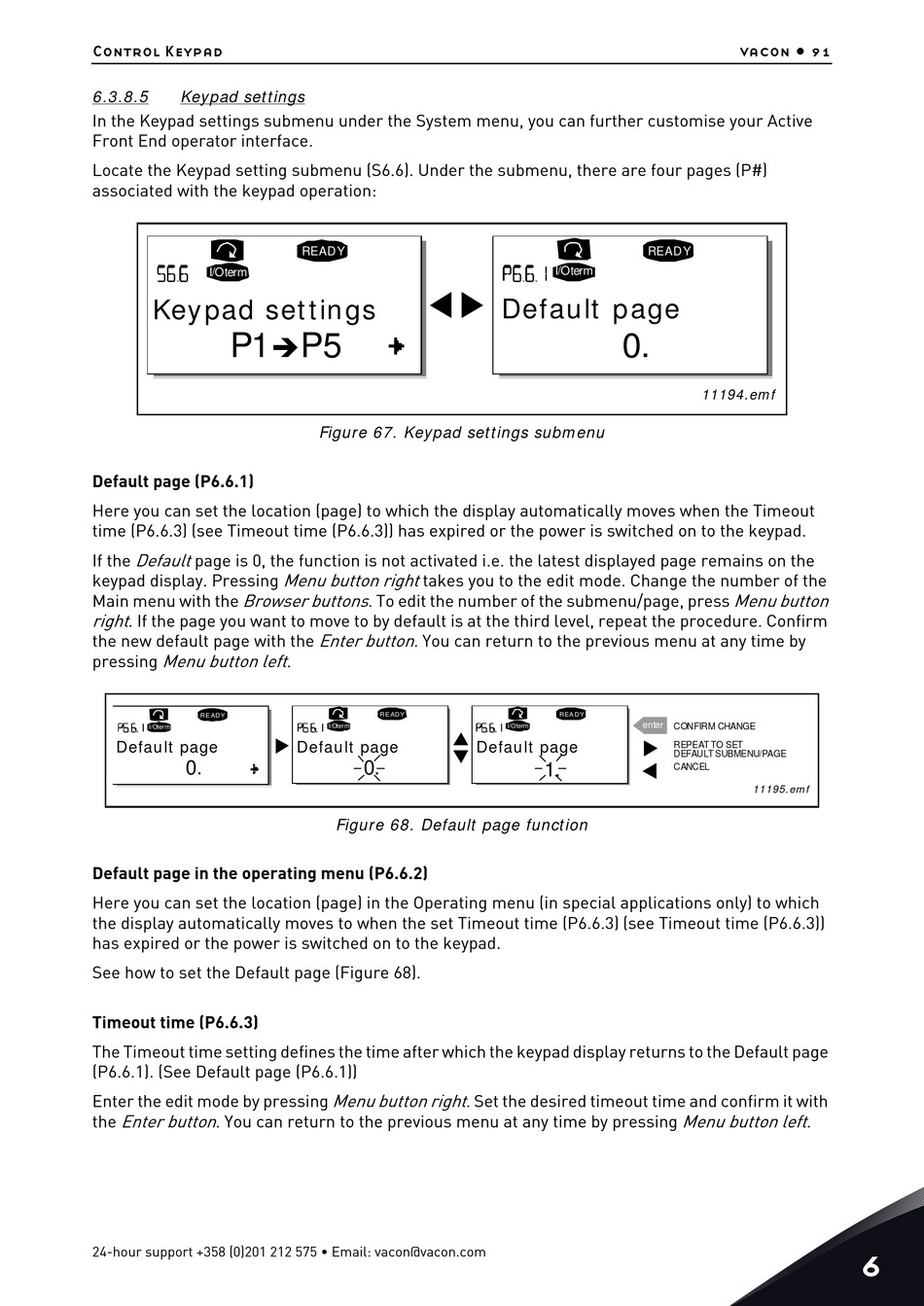

Vacon NX Active Front End User Manual page 93

Control Keypad
6.3.8.5 Keypad settings
In the Keypad settings submenu under the System menu, you can further customise your Active
Front End operator interface
Locate the Keypad setting submenu (S6.6). Under the submenu, there are four pages (P#)
associated with the keypad operation:
I/Oterm
Keypad settings
P1
Default page (P6.6.1)
Here you can set the location (page) to which the display automatically moves when the Timeout
time (P6.6.3) (see Timeout time (P6.6.3)) has expired or the power is switched on to the keypad.
Default
If the page is 0, the function is not activated i.e. the latest displayed page remains on the
keypad display. Pressing
Main menu with the Browser buttons
right
. If the page you want to move to by default is at the third level, repeat the procedure. Confirm
the new default page with the
Menu button left
pressing
RE ADY
I/Oterm
Default page
0.
Default page in the operating menu (P6.6.2)
Here you can set the location (page) in the Operating menu (in special applications only) to which
the display automatically moves to when the set Timeout time (P6.6.3) (see Timeout time (P6.6.3))
has expired or the power is switched on to the keypad.
See how to set the Default page (Figure 68).
Timeout time (P6.6.3)
The Timeout time setting defines the time after which the keypad display returns to the Default page
(P6.6.1). (See Default page (P6.6.1))
Enter the edit mode by pressing
Enter button
the . You can return to the previous menu at any time by pressing
