vacon • 74
6.2

Keypad push-buttons

The Vacon NX alphanumeric control keypad has 9 push-buttons that are used for controlling
®
Vacon NX Active Front End, setting parameters, and monitoring values.
6.2.1

Buttons descriptions

= This button is used to reset active faults. See Chapter 6.3.4.
reset
=
select
=
enter
=
+
-
=

=

=
=
=
6
reset
sele ct

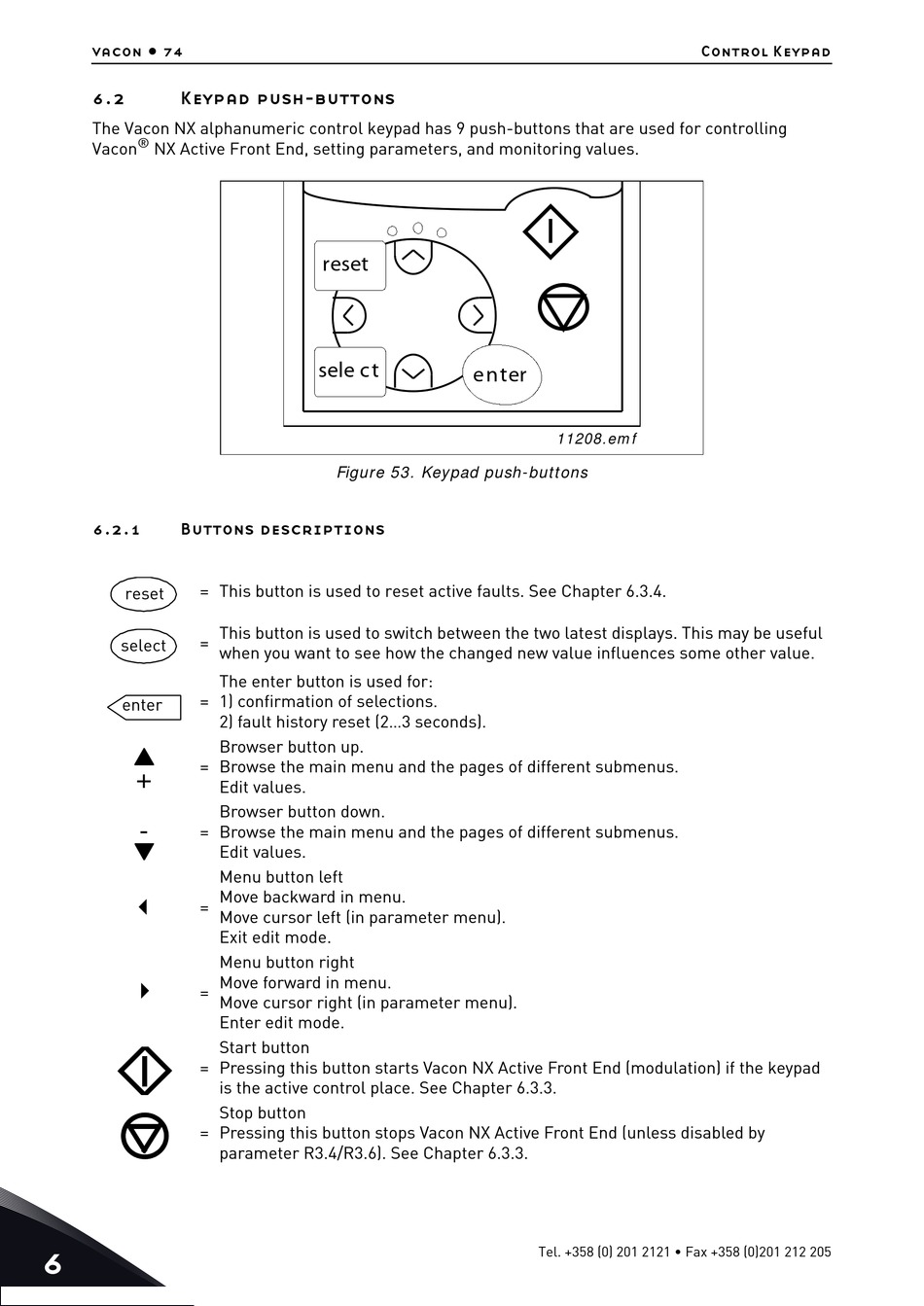

Figure 53. Keypad push-buttons
This button is used to switch between the two latest displays. This may be useful
when you want to see how the changed new value influences some other value.
The enter button is used for:
1) confirmation of selections.
2) fault history reset (2...3 seconds).
Browser button up.
Browse the main menu and the pages of different submenus.
Edit values.
Browser button down.
Browse the main menu and the pages of different submenus.
Edit values.
Menu button left
Move backward in menu.
Move cursor left (in parameter menu).
Exit edit mode.
Menu button right
Move forward in menu.
Move cursor right (in parameter menu).
Enter edit mode.
Start button
Pressing this button starts Vacon NX Active Front End (modulation) if the keypad
is the active control place. See Chapter 6.3.3.
Stop button
Pressing this button stops Vacon NX Active Front End (unless disabled by
parameter R3.4/R3.6). See Chapter 6.3.3.
enter
11208.emf
