Control Keypad vacon • 75
6.3

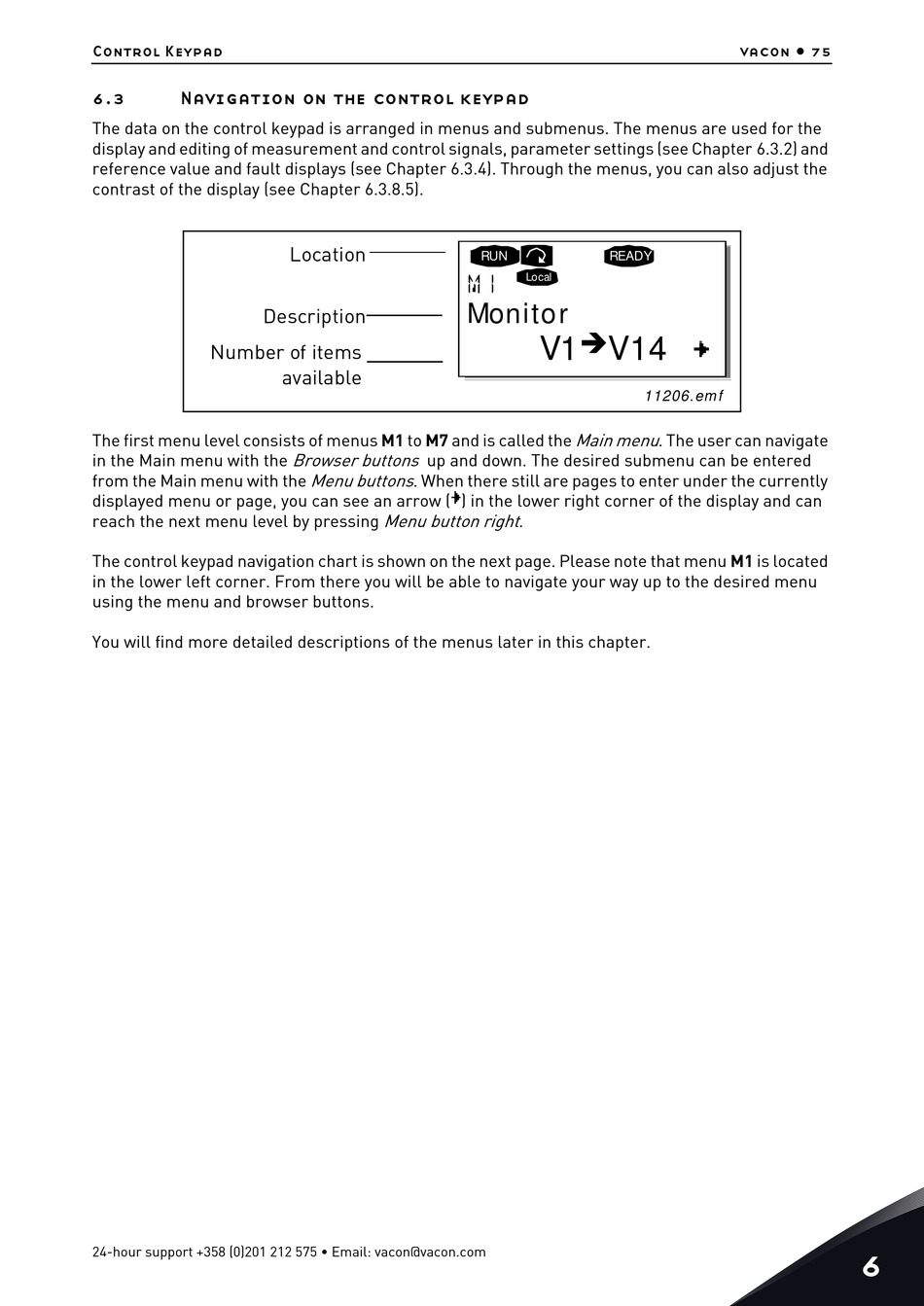

Navigation on the control keypad

The data on the control keypad is arranged in menus and submenus. The menus are used for the
display and editing of measurement and control signals, parameter settings (see Chapter 6.3.2) and
reference value and fault displays (see Chapter 6.3.4). Through the menus, you can also adjust the
contrast of the display (see Chapter 6.3.8.5).
Location
RUN READY
Local
Monitor
Description

V1 V14
Number of items
available
11206.emf
The first menu level consists of menus M1 to M7 and is called the Main menu . The user can navigate
Browser buttons
in the Main menu with the up and down. The desired submenu can be entered
Menu buttons
from the Main menu with the . When there still are pages to enter under the currently
displayed menu or page, you can see an arrow ( ) in the lower right corner of the display and can
reach the next menu level by pressing Menu button right .
The control keypad navigation chart is shown on the next page. Please note that menu M1 is located
in the lower left corner. From there you will be able to navigate your way up to the desired menu
using the menu and browser buttons.
You will find more detailed descriptions of the menus later in this chapter.
