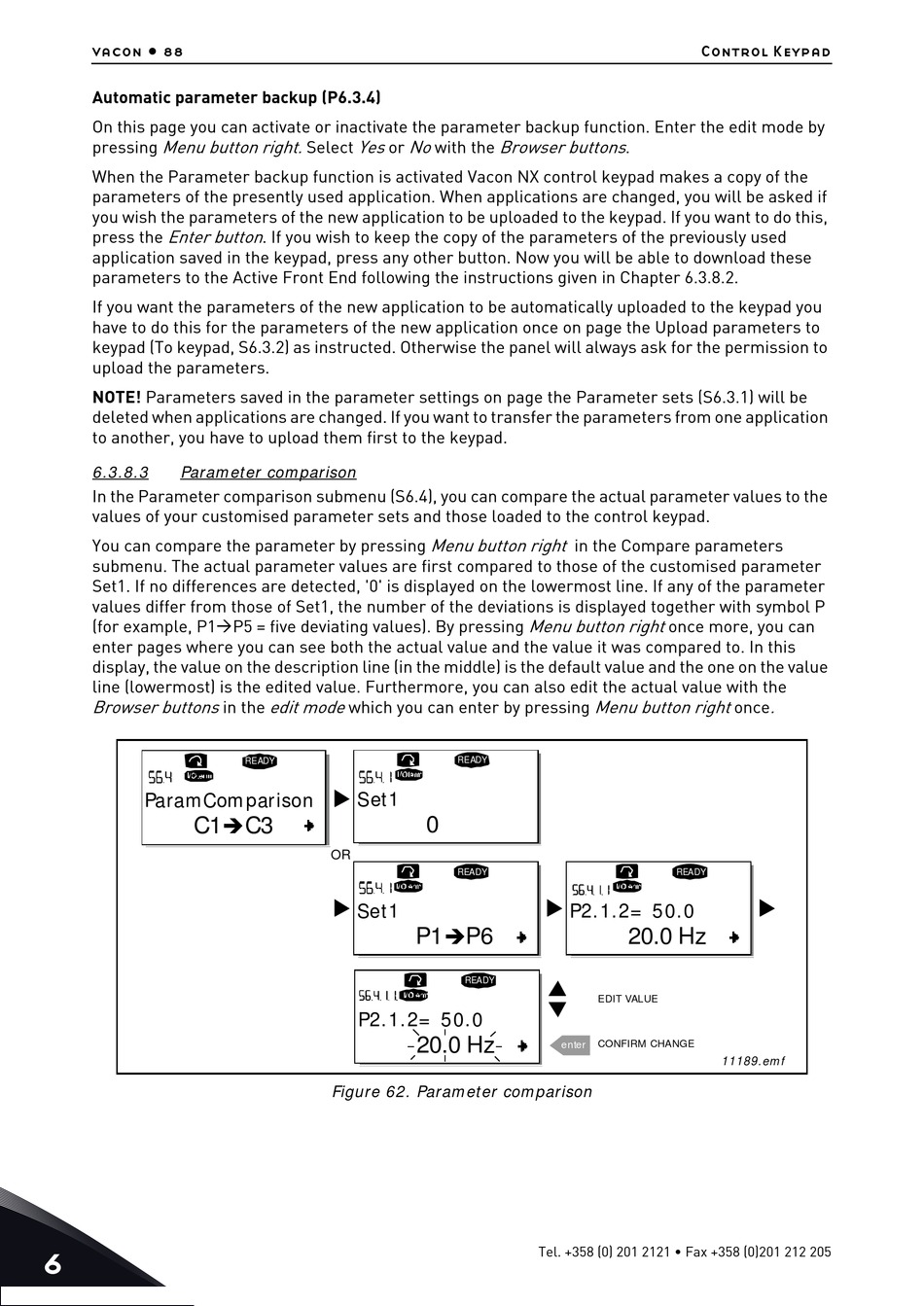

Vacon NX Active Front End User Manual page 90

vacon • 88
Automatic parameter backup (P6.3.4)
On this page you can activate or inactivate the parameter backup function. Enter the edit mode by
Menu button right.
pressing
When the Parameter backup function is activated Vacon NX control keypad makes a copy of the
parameters of the presently used application. When applications are changed, you will be asked if
you wish the parameters of the new application to be uploaded to the keypad. If you want to do this,
Enter button
press the
application saved in the keypad, press any other button. Now you will be able to download these
parameters to the Active Front End following the instructions given in Chapter 6.3.8.2.
If you want the parameters of the new application to be automatically uploaded to the keypad you
have to do this for the parameters of the new application once on page the Upload parameters to
keypad (To keypad, S6.3.2) as instructed. Otherwise the panel will always ask for the permission to
upload the parameters.
NOTE! Parameters saved in the parameter settings on page the Parameter sets (S6.3.1) will be
deleted when applications are changed. If you want to transfer the parameters from one application
to another, you have to upload them first to the keypad.
6.3.8.3 Parameter comparison
In the Parameter comparison submenu (S6.4), you can compare the actual parameter values to the
values of your customised parameter sets and those loaded to the control keypad.
You can compare the parameter by pressing
submenu. The actual parameter values are first compared to those of the customised parameter
Set1. If no differences are detected, '0' is displayed on the lowermost line. If any of the parameter
values differ from those of Set1, the number of the deviations is displayed together with symbol P
(for example, P1P5 = five deviating values). By pressing
enter pages where you can see both the actual value and the value it was compared to. In this
display, the value on the description line (in the middle) is the default value and the one on the value
line (lowermost) is the edited value. Furthermore, you can also edit the actual value with the
Browser buttons
ParamComparison
C1
6
Yes
Select or
. If you wish to keep the copy of the parameters of the previously used
edit mode
in the which you can enter by pressing
READY
Set1

C3
OR
Set1
P2.1.2= 50.0
Figure 62. Parameter comparison
No Browser buttons
with the
Menu button right
in the Compare parameters
Menu button right
READY
0
READY
P2.1.2= 50.0

P1 P6
READY
20.0 Hz
enter
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205
Control Keypad
.
once more, you can
Menu button right
once
READY
20.0 Hz
EDIT VALUE
CONFIRM CHANGE
11189.emf
.
