Lifting the modules

The modules can be lifted by the holes on top. Place the lifting hooks symmetrically in at least four
holes. The maximum allowed lifting angle is 45º. For frames FI9 and FI10, see Figure 3 and for the
frame FI13, see Figure 4.
The lifting equipment must be able to carry the weight of the module.
45
11179.emf

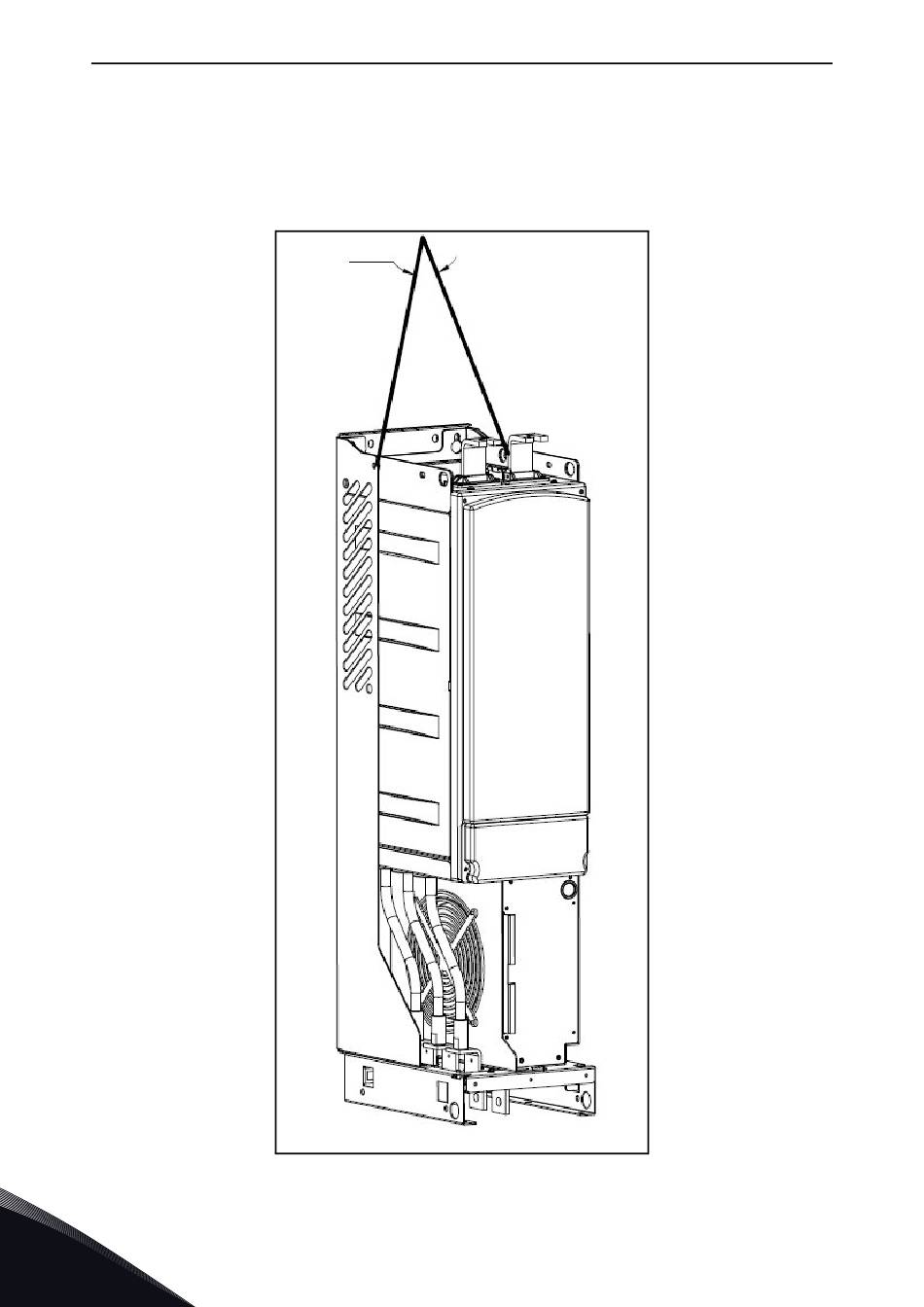

Figure 3. Lifting points for FI9 and FI10 modules
