vacon • 16 Receipt of delivery
3.7

Lifting the LCL filters

The modules can be lifted by the holes on top. Place the lifting hooks symmetrically in two holes in
the FI9 and FI10 LCL filters and four holes in the FI13 LCL filter. The maximum allowed lifting angle
is 45º. For the FI9 and FI10 LCL filter, see Figure 5 and for the FI13 LCL filter, see Figure 6.
45
11177.emf

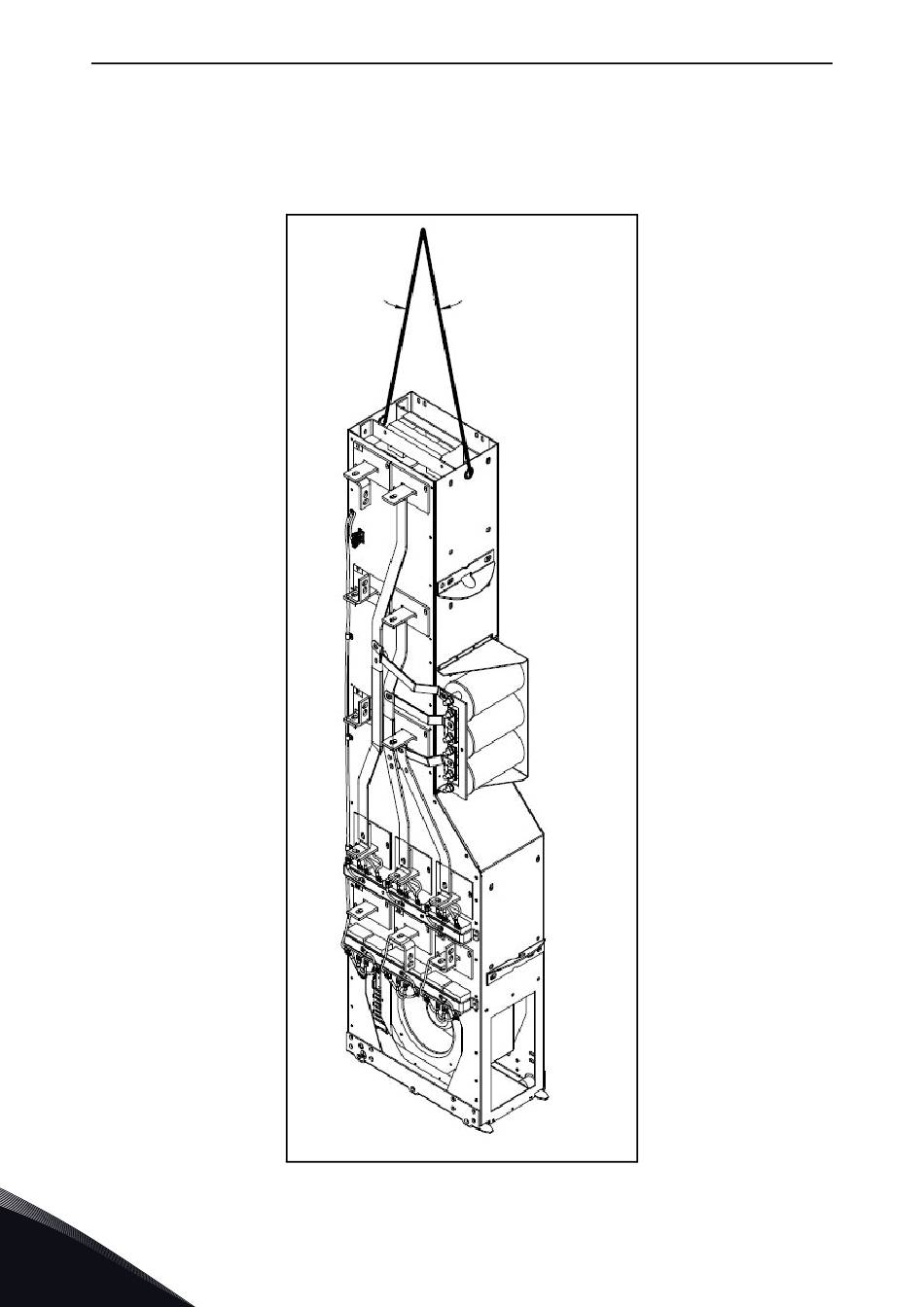

Figure 5. Lifting points for FI9 and FI10 LCL filter
