Active Front End (AFE)
Derating as a function of installation altitude
120
100
80
60
40
20
0
0 500

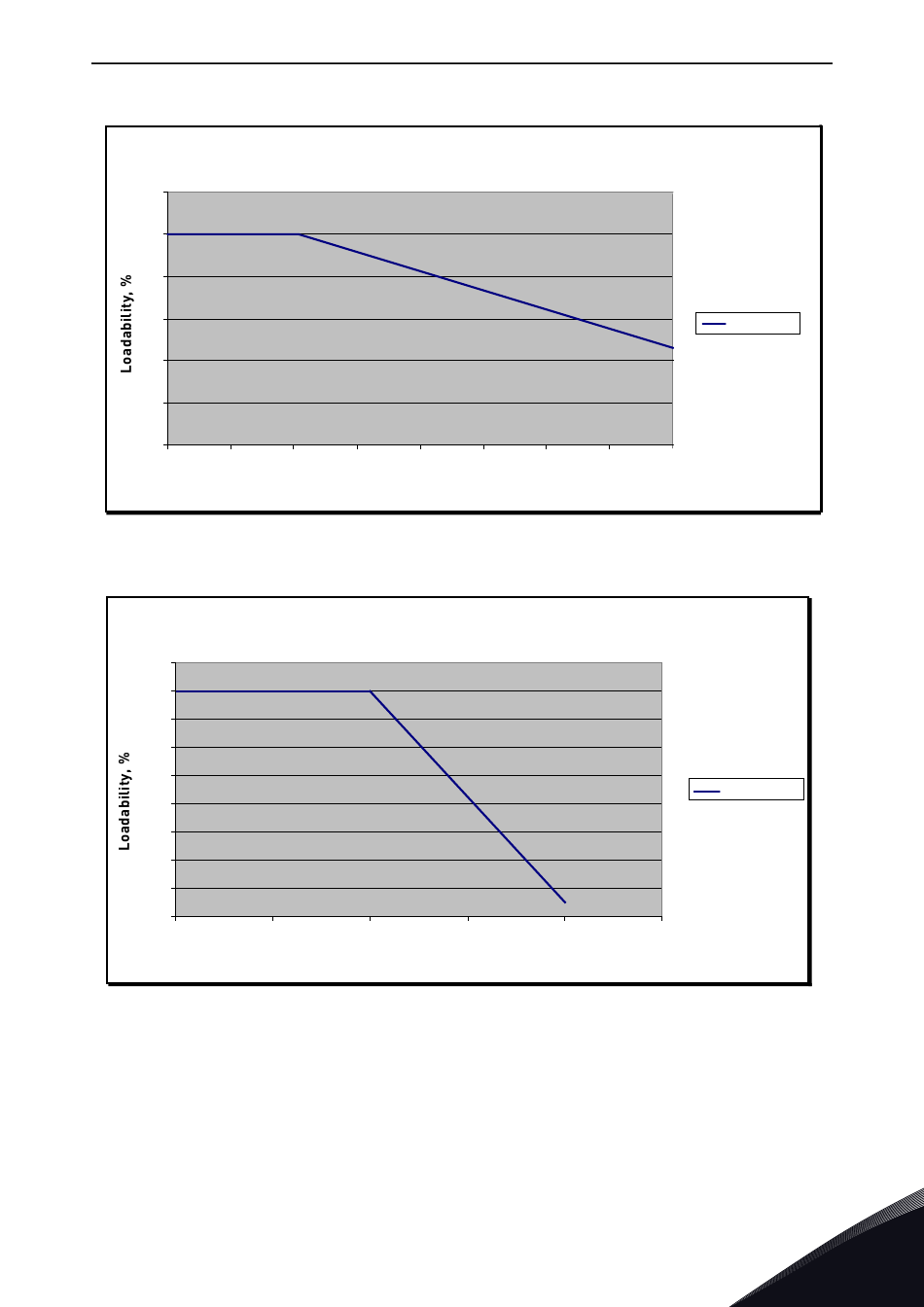

Figure 24. Derating as the installation altitude 380-500 V
Derating as a function of installation altitude
102
100
98
96
94
92
90
88
86
84
0 500
Figure 25. Derating as the installation altitude 525-690 V
NOTE! If higher installation altitude is considered please contact Your nearest Vacon office.
