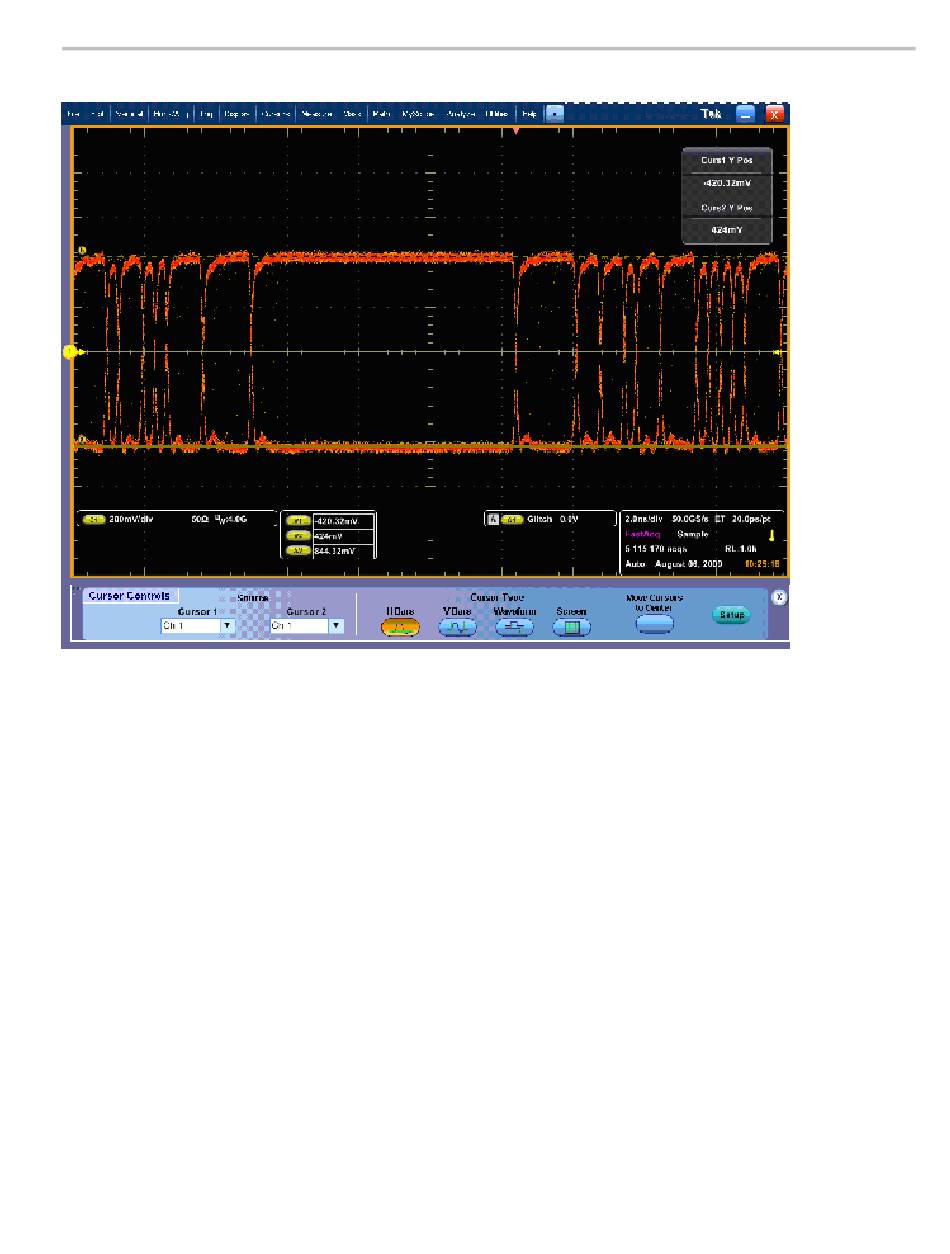

Figure 3: Serial Output at 3 Gb/s, using Glitch Trigger mode

15. Record the amplitude (ΔV) in the test record for 3 Gb/s. Amplitudes between
745 mV and 849 mV are acceptable.
