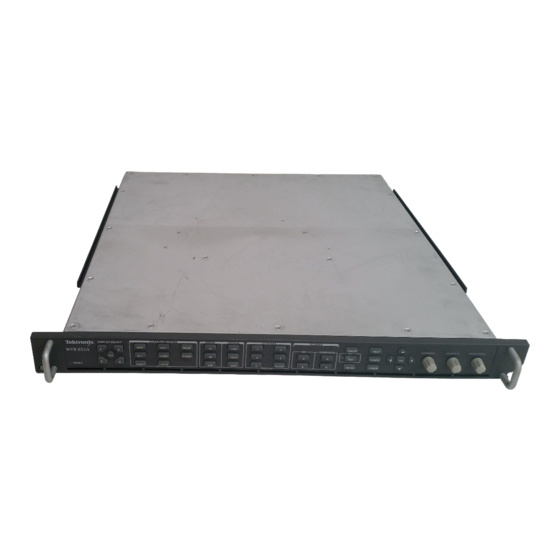

Service Manual
WVR610A & WVR611A
Waveform Rasterizers
071-1243-01
This document applies to firmware version 1.1X
and above.
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com

Advertisement

Table of Contents
loading

Related Manuals for Tektronix WVR610A

Summary of Contents for Tektronix WVR610A

  • Page 1 Service Manual WVR610A & WVR611A Waveform Rasterizers 071-1243-01 This document applies to firmware version 1.1X and above. Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so.
  • Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077...
  • Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 5: Table Of Contents

    ........2- - 44 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 6 ..........5- -1 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 7 ........10- - 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 8 Figure 2- -34: Rear-panel connectors ......2- -28 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 9 ....8- -5 Figure 8- -6: High-level fault and fan block diagram ... . . 8- -6 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 10 ....10- -15 Figure 10- -7: Analog audio breakout cable assembly ... . . 10- -16 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 11 ........1- -24 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 12 ......4- -26 Table 4- -3: Required Audio Test Equipment ....4- -41 viii WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 13 Table 7- -1: Power cord identification ......7- -2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 14 Table of Contents WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 15: General Safety Summary

    Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 16 CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: CAUTION WARNING Protective Ground Refer to Manual High Voltage (Earth) Terminal WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 17: Service Safety Summary

    Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. xiii WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 18 Service Safety Summary WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 19: Preface

    Preface This is the service manual for the WVR610A & WVR611A Waveform Rasteriz- ers. Read this preface to learn how this manual is structured, what conventions it uses, and where you can find other information related to servicing these products.

  • Page 20: Related Documents

    This document is provided as a standard accessory when you order a new instrument. If you upgrade your instrument firmware from the Tektronix, Inc. website, an updated version of this document is provided. Related Reference Documents The following related reference documents are available at the Tektronix, Inc.

  • Page 21: Contacting Tektronix

    6:00 a.m. - - 5:00 p.m. Pacific Standard Time This phone number is toll free in North America. After office hours, please leave a voice mail message. Outside North America, contact a Tektronix sales office or distributor; see the Tektronix web site for a list of offices. xvii...
  • Page 22 Preface xviii WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 23: Specifications

    Specifications...

  • Page 25: Electrical Specifications

    Specifications The tables in this appendix list the specifications for the Tektronix WVR610A & WVR611A Waveform Rasterizers. Items listed in the Performance Requirement column are generally quantitative, and are either tested by the Performance Verification procedure in the Service Manual or are guaranteed by design. Items listed in the Reference Information column are useful operating parameters that have typical values;...

  • Page 26: Table 1- 2: Serial Digital Video (Sdi Inputs A And B) Interface Physical Layer Characteristics

    Table 1- 3: Composite analog input waveform vertical characteristics Characteristic Performance requirement Reference information Displayed Vertical Gain Accuracy Measured using graticules 1% all Gain settings Variable Gain Range, Typical 0.25X to 10.0X Frequency Response flat to 5.75 MHz, 1- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 27: Table 1- 4: Composite Analog Inputs A And B Physical Layer Characteristics

    40 dB to 6 MHz, power on 35 dB to 6 MHz, power off for standard amplitude video Video Input Cross-talk Between Channels 60 dB to 6 MHz Loopthrough Isolation 70 dB to 6 MHz 1- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 28 Can correct signals with backporch within 1 V of ground. Sync AFC Speed User selectable setting of Fast or Slow response to line rate variations. Typical bandwidth of 600 Hz (Fast) and 10 kHz (Slow) 1- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 29: Table 1- 5: External Reference Characteristics

    Sync AFC Speed User selectable setting of Fast or Slow response to line rate variations. Typical bandwidth of 600 Hz (Fast) and 10 kHz (Slow) 1- 5 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 30: Table 1- 6: Waveform Sweep (Horizontal) Characteristics

    Any portion of the synchronized sweep can be positioned on screen in all sweep modes. Any portion of the sweep can be set to the middle of the screen in non-mag mode. 1- 6 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 31: Table 1- 7: Waveform Mode Filter Characteristics

    Display to Graticule Registration Boxes are 2% targets. Centered in target, 0.25 box diameter at 1X gain, 0.1 box diameter at 5X gain. Bandwidth, typical 800 kHz, meets STD- - 205. 1- 7 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 32: Table 1- 9: Composite Vector Mode Characteristics

    If the transition bends in toward black, the color-difference signal is delayed with respect to luma. If the transition bends out toward white, the color-difference signal is leading the luma signal. 1- 8 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 33: Table 1- 11: Rgb Gamut Error Indication (Diamond Displays)

    High 90 to 108% Low +5 to - - 6% 0.5% steps Default is nominally 103% and - - 1%. Luma Limit Detection Level Accuracy Detection level = 7mV of cursor level 1- 9 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 34: Table 1- 13: Program Error Alarms And "Background Measurement Alarms

    Signal Loss Alarm Reports absence of video signal for the cur- rently selected input and External Reference if it is enabled. LTC and VITC Warns that a break or discontinuity has occurred. 1- 10 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 35: Table 1- 14: Miscellaneous Measurements And Displays

    Composite picture with blanking displayed does not show sync and burst but does show vertical interval signals such as VITS, teletext and closed caption. 1- 11 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 36: Table 1- 16: Measure Display

    100 mV LTC Waveform Time Base, Typical 3 ms/division for NTSC, 4 ms/div for PAL Runs in 2-field sweep mode only, triggered by field one to allow verifying audio to video synchronization. 1- 12 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 37: Table 1- 18: Audio Bar Displays

    Speed 18 averages over 6.5 s. Speed 19 averages over 7.0 s. Speed 20 averages over 7.5 s. Metering Ballistics Selectable from True Peak, PPM Type 1, PPM Type 2, and Extended VU. 1- 13 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 38 Off or 1 to 30 seconds selectable. Indica- tion and alarm will not be asserted until threshold has been exceeded for the set number of seconds. Factory default is set to 10. 1- 14 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 39: Table 1- 19: Audio Bar And Lissajous Displays

    - - 40 to 0 dB level transition. Manual Scaling When AGC is off, level at perimeter of display follows Program level on Bar display. 1- 15 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 40: Table 1- 20: Audio Text Displays

    32 kHz, 44.1 kHz, 48 kHz, and 96 kHz Input Lock Range 5%. This means that exceeding 5%, the instrument may search again for a new lock point. Typically stays locked to 12.5% 1- 16 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 41: Table 1- 22: Aes Audio Outputs

    Up to 8 channels Output Format Stereo Output, 48 kHz, 20 bit, Meets requirements of SMPTE 276M- - 1995 (AES 3- - ID) Output Connector BNC, terminated, unbalanced. Output Impedance 75Ω 1- 17 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 42: Table 1- 23: Embedded Audio Extraction And Monitoring On Status Bar

    Number of Channels Monitored for 16 channels are monitored for presence. Presence Audio Levels Bars display signals up to 0dBFS. Must not exceed max power specification on analog outputs. Configure output attenuation if necessary. 1- 18 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 43: Table 1- 24: Analog Audio Inputs

    +24 dBu referenced to level Meter Accura- Must not exceed max power specification cy over Frequency above. on analog outputs. Configure output attenuation if necessary. Resolution Sampling, Nominal 24 bits at 48 kHz 1- 19 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 44: Table 1- 25: Analog Audio Outputs

    Number of Channels Provides up to 6 channels. Output Connections Balanced, unterminated connector located on rear panel. Use 37 pin, 2 row, DSUB connector. Ground negative output to support unbal- anced mode. 1- 20 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 45 RMS power is less than 25 mW averaged over any 10 second period. Exceeding this limit at high ambient temperature may cause the output circuit to overheat and damage the instrument. 1- 21 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 46: Table 1- 26: Ground Closure Remote/Ltc Input

    RJ-45 LAN connector supporting 10/100 BaseT. Table 1- 28: XGA Picture monitor output Characteristic Performance requirement Reference information Amplitude Can switch between 1 V and 0.7 V. Resolution 1024 x 768. Timings are typical. 1- 22 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 47: Table 1- 29: General Characteristics

    625), NTSC (1 to 1050), PAL (1 to 2500). Fields greater than 1 display the line number in the field and the line number in the frame or color frame. 1- 23 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 48 Supply Type Single phase. Supply Connection Detachable cord set with lock. Power Consumption, Typical 90 VA (50 Watts) Fuse UL/IEC127 F3.15A H, Not operator replaceable. 250 VAC ( 5 x 20 mm) 1- 24 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 49: Physical Specifications

    Do not operate with visible moisture on the circuit boards. Exceeds Mil-PRF-28800F for a class 5 product. Vibration Tektronix Class 5 Random Vibration Operating Test: For Laboratory / Benchtop Products (instrument meets brief operational performance checks at these levels): Power Spectral Density of: 0.00015 g...
  • Page 50 Meets International Safe Transit Association Test Procedure 1A, April 1996, Category II for Vibration, Impact (24 inch drop), and Compression. Altitude Operating: Up to 3000 meters (10,000 feet). Non-operating: Up to 12,192 meters (40,000 feet). 1- 26 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 51: Certifications And Compliances

    Standard for electrical measuring and test equipment. Testing Laboratory Listing Canadian Certification CAN/CSA C22.2 No. 1010.1 Safety requirements for electrical equipment for measurement, control, and laboratory use. Use only high-quality shielded cables. 1- 27 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 52 Pollution Degree 4 Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Equipment type Test and Measurement Safety Class Class I Overvoltage Category CAT II 1- 28 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 53: Operating Information

    Operating Information...

  • Page 55: Operating Basics

    This chapter provides basic operating information for the WVR610A & WVR611A Waveform Rasterizers. Overview The WVR610A & WVR611A use a flexible, tiled display. The waveform rasterizer can display four tiles at one time. Each tile can display a different measurement, effectively creating four independent instruments. See Figure 2- -1.

  • Page 56: Figure 2- 2: A Tile In Full-Screen Mode

    The only measurement that cannot be displayed in more than one tile is the Audio measurement. It can be displayed in only one tile at a time. Figure 2- 3: A display with multiple Status screens 2- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 57: Three Levels Of Control

    Instrument-wide settings. The parameters in the Configuration menu are instrument-wide settings. The configuration menu controls settings that are changed only occasionally, such as changing waveform color or setting the network address. 2- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 58: Tile Settings

    Exceptions are the Input buttons, and all audio features, both of which are global. Front-Panel Controls The following sections describe the front panel controls of the WVR610A & WVR611A. Tile Settings Each tile maintains its own settings independent of the other tiles, including GAIN and SWEEP, and display type among others.

  • Page 59: Figure 2- 6: Measure Select Buttons

    Sets the active tile to 5X Gain Sets the active tile to Variable Gain. Gain is set using the GENERAL knob. Figure 2- 7: Gain buttons NOTE. The Gain controls are not enabled for all measurements. 2- 5 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 60: Figure 2- 8: Sweep Buttons

    NOTE. The Sweep controls are not enabled for all measurements. Recall and sets the Recall and sets the designated preset designated preset Recalls the Factory preset Figure 2- 9: Presets buttons 2- 6 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 61: Figure 2- 10: Input Select Buttons

    Enables and disables Displays the cursors. the Line Select Mode Figure 2- 11: General function buttons Used to navigate menus and make selections Figure 2- 12: Arrow keys and SEL button 2- 7 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 62: Pop-Up Menus

    The pop-up menu will appear, unless it is not appropriate for the current setting of the waveform rasterizer (for example, trying to display the Gamut menu when viewing a composite input signal). 2- 8 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 63: Figure 2- 14: The Wfm Pop-Up Menu With Display Mode Set To Ypbpr

    Figure 2- -14 Y, Pb, and Pr are in the menu when the display mode is set to YPbPr. But the menu changes when the display mode is set to RGB. See Figure 2- -15. Figure 2- 15: The WFM pop-up menu display mode set to RGB 2- 9 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 64: Configuration Menu

    The Status Bar appears at the bottom of the waveform rasterizer display. The Status Bar provides a number of text and icon elements to give you an easily viewed guide to the status of the instrument and the monitored signal. Table 2- -1 2- 10 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 65: Figure 2- 17: Elements Of The Status Bar

    Because RGB and Composite Gamut messages appear on the same line in the display, if both RGB and Composite Gamut errors are present at the same time, the message “RGB and Cmpst Gamut” will appear. 2- 11 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 66: Waveform Display

    You can also display an SDI input as though it were a composite signal. Figure 2- -18 identifies the elements of the Waveform display and Table 2- -3 describes the meaning of the elements of the Waveform display. 2- 12 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 67: Vector Display

    Vector Display The Vector display provides two display types: Vector and the Tektronix proprietary Lightning display (SDI signals only). The Vector display shows a plot of the R-Y signal on one axis and the B-Y signal on the other. It is useful for looking at hue and saturation of the colors, but does not show luminance information.

  • Page 68: Figure 2- 19: Vector Display Elements

    Pressing the MAG buttons enables you to adjust the horizontal gain using the GENERAL knob. Display type The selected display, either Lightning or Vector. Bar target setting The bar target setting, either 75% or 100%. Phase Appears in Composite Vector display only. 2- 14 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 69: Measure Display

    Pressing the MEAS button displays a Tektronix proprietary display that greatly simplifies measuring the timing difference between two signals as the timing is corrected. Using the Tektronix Timing display enables you to easily compare and correct the timing between two digital signals.

  • Page 70: Picture Display

    This behavior may be evident on a sweep signal on 525 mode. Audio Display The Audio display provides level meters and a phase display for monitoring audio signals. The Audio display always shows the level meters and correlation 2- 16 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 71: Figure 2- 22: Audio Display With Phase Display

    By default, the zero dB mark is at digital full scale, and units are in dB relative to full scale (dBFS). You may also set the 0 dB mark to either the Peak Program level or the Test level. 2- 17 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 72: Above-Bar Warning Messages

    Operating Basics Above-bar Warning The WVR610A & WVR611A display warning messages above the level meter Messages bars. The warning messages that can appear above the bars are shown below. CLIP. The number of consecutive samples is at or exceeds the # Samples for Clip setting.

  • Page 73: Other Display

    Vertical scale in dBu Alternate graticule with vertical scale in dBu Gamut Display The Gamut display provides three proprietary Tektronix displays to enable you to easily and quickly check the gamut of an SDI signal. You can choose from the 2- 19...

  • Page 74: Figure 2- 24: Gamut Display Elements

    Text showing the currently specified low threshold (Diamond Low). Gamut display type The selected Gamut display type: Diamond, Split Diamond, or Arrowhead. Threshold indicators Blue dashed lines indicating the threshold settings. 2- 20 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 75: Status Display

    See Figure 2- -25. Figure 2- 25: A STATUS display in all four tiles For detailed information on the elements of the various Status displays, see Configuring Alarms and Viewing Status in the WVR610A & WVR611A Waveform Rasterizers User Manual. 2- 21...

  • Page 76: Navigating Menus

    4. If the knob icon appears next to a selection, you use the GENERAL knob to change that selection. See Figure 2- -27. You can also use the up and down-arrow keys, but the knob is usually faster. 2- 22 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 77: Setting The Active Tile

    The tiles are numbered 1, 2, 3, and 4, corresponding to the numbered Display Select front-panel buttons. See Figure 2- -28. Figure 2- 28: Tile positions in the display 2- 23 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 78: Figure 2- 29: Identifying The Active Tile

    H Press the numbered Display Select button of the tile you wish to make the active tile. See Figure 2- -30. Figure 2- 30: Press a numbered button to set the active tile 2- 24 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 79: Displaying A Tile In Full-Screen Mode

    Figure 2- 31: Full-screen mode While in the full-screen mode, if you press another DISPLAY SELECT button, the waveform rasterizer will display the contents of the selected tile in full-screen mode. 2- 25 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 80: Selecting A Measurement For The Active Tile

    5X gain. Or you can display multiple STATUS screens all at the same time. The exception is the AUDIO measurement; only one instance of the AUDIO tile can be displayed at a time. 2- 26 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 81: Using Online Help

    Operating Basics Using Online Help The WVR610A & WVR611A online help is a quick reference to instrument operation. The online help is context sensitive, and the topic displayed depends on what is displayed in the active tile when the online help is selected.

  • Page 82: Rear Panel Connections

    (such as phase-to-phase in multiphase systems) are not recommended as power sources. The power source frequency is 50 or 60 Hz. The operating voltage range is continuous from 100 to 240 VAC. 2- 28 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 83: Table 2- -9: Aes Connectors 2

    Configuration menu, AES output of embedded audio channels AES B 7-8 I/O Input / Output AES channels 7 and 8, or when configured from the Configuration menu, AES output of embedded audio channels 2- 29 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 84: Figure 2- -35: Analog I/O Connector Pin Diagram 2

    Balanced differential analog audio output: Left, negative, Pair 2 ANA_OUT_RN2 Balanced differential analog audio output: Right, negative, Pair 2 ANALOG_INPUT_LN0_A Balanced differential analog audio input: Left, negative, Pair 0, Line A 2- 30 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 85: Table 2- -11: Channel Pair To Analog Input Mapping 2

    1 to 6. Table 2- -11 maps the left/right pairs to the analog input number used in the interface and on the breakout cable. Table 2- 11: Channel pair to analog input mapping Pair label Analog input 2- 31 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 86: Figure 2- -36: Xga Output Connector Pin Diagram 2

    See Figure 2- -36. Figure 2- 36: XGA output connector pin diagram Table 2- 12: XGA connector pin-out Description Notes Red Video Green Video Blue Video Not connected Ground Red Ground Green Ground 2- 32 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 87: Figure 2- -37: Remote Connector Pin Diagram 2

    Reserved for future use - - - - Reserved for future use - - - - Preset 1 Recall Preset 1 +Time Code LTC (longitudinal time code) input. - - Time Code 2- 33 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 88: Figure 2- -38: Rj-45 Ethernet Connector 2

    The connector includes two LEDs for indicating status. See Table 2- -14. Table 2- 14: Ethernet connector LEDs LED color Meaning Green Connection is active Yellow ON = 100 Mb transmission rate OFF = 10 Mb transmission rate 2- 34 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 89: Table 2- -15: Ethernet Connector Pin-Out 2

    Transceive Data+ TX_D1- - Transceive Data- - RX_D2+ Receive Data+ BI_D3+ Bi-directional Data+ BI_D3- - Bi-directional Data- - RX_D2- - Receive Data- - BI_D4+ Bi-directional Data+ BI_D4- - Bi-directional Data- - 2- 35 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 90 Operating Basics 2- 36 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 91: Changing Instrument Settings

    Determines whether the EAV and SAV timing references or the ancillary data, such as audio, are visible in the Waveform display. Since these data values are not band limited, they usually ring when displayed through the video waveform filters. 2- 37 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 92: Composite Input Settings

    This setting is useful when you occasionally changes the input format. If you always monitor the same signal format, you can specify NTSC or PAL. 2- 38 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 93: External Reference Setting

    H Select Fast when you want to remove the effects of hum and offset from the signal. NTSC Setup The NTSC Setup setting optimizes the operation of the WVR610A & WVR611A for NTSC signals with and without set up. For example, this setting changes the scaling of the vector bar targets.

  • Page 94: Analog Audio Displays Settings

    2. Select Analog Audio Displays. Use the right-key to change to menu focus to the Analog Audio Displays submenu. 3. Select the desired setting and change the setting as desired. 4. After changing the setting, press CONFIG to remove the Configuration menu. 2- 40 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 95: Table 2- -19: Analog Audio Display Settings 2

    Range: 24 to - - 6 dB Default: 10 dB Duration for Over Range: 0 to 30 seconds Default: 1 second Error Hold Time Range: 0 to 30 seconds Default: 2 seconds 2- 41 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 96 When the zero mark is set to either Peak Program or Test level, the scale units are dBr, relative to the 0 dB level; units above the selected 0 dB mark are positive, while units below it are negative. 2- 42 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 97: Table 2- -20: Characteristics Of Meter Types 2

    Duration for Silence Specifies how long the audio level must be below the Silence Level before an alarm is triggered. Setting the duration to “0” seconds disables the alarm. 2- 43 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 98: Digital Audio Displays Settings

    2. Select Digital Audio Displays. Use the right-key to change to menu focus to the Digital Audio Displays submenu. 3. Select the desired setting and change the setting as desired. 4. After changing the setting, press CONFIG to remove the Configuration menu. 2- 44 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 99: Table 2- -21: Digital Audio Display Settings 2

    Range: - - 20 to 0 dBFS Default: - - 8 dB Duration for Over Range: 0 to 30 seconds Default: 1 second Error Hold Time Range: 0 to 30 seconds Default: 2 seconds 2- 45 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 100 When the zero mark is set to either Peak Program or Test level, the scale units are dBr, relative to the 0 dB level; units above the selected 0 dB mark are positive, while units below it are negative. 2- 46 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 101 Specifies how long the audio level must be above the Over Level before an alarm will be triggered. Error Hold Time Specifies the length of time the in-bar error messages are displayed after the error has been removed. 2- 47 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 102: Audio Inputs/Outputs 2

    For units with digital audio capability, there are four AES pair inputs in the “A” bank and four in the “B” bank. Four pairs of audio signals can also be extracted (de-embedded) from the active serial video input. The “B” input bank can be 2- 48 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 103: Table 2- -22: Audio Inputs And Outputs 2

    Analog B / Embedded / None SDI B AES A /AES B / Analog A / Analog B / Embedded / None Cmpst A AES A /AES B / Analog A / Analog B / None 2- 49 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 104: Figure 2- -39: Mapping Inputs To Bars 2

    Bar Format setting. See Figure 2- -39 Bar labels when Bar Format is set to Pairs Bar labels when Bar Format is set to Surround Figure 2- 39: Mapping inputs to bars 2- 50 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 105: Figure 2- -40: Analog Out Map 2

    1. Press CONFIG to display the Configuration menu. 2. Select Audio Inputs/Outputs to display the submenu. Select the input to be configured. See Figure 2- -41. Figure 2- 41: Configuring audio inputs 2- 51 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 106: Figure 2- -42: Bar To Input Mapping 2

    2. Select Video to Audio Map to display the submenu. 3. Select a video input, then select the audio input that you want to be active when this video input is active. See Figure 2- -44. 2- 52 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 107: Figure 2- -44: Video To Audio Mapping 2

    BNC corresponding to the lowest numbered bar pair will be active. To set up the AES B connectors as outputs: 1. Press CONFIG to display the Configuration menu. 2- 53 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 108: Gamut Thresholds Menu 2

    1. Press CONFIG until the menu appears. 2. Use the GENERAL knob or the up/down arrow keys to select Gamut Thresholds. 3. Use the navigation keys to change the menu focus to the Gamut Thresholds submenu. 2- 54 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 109: Table 2- -23: Gamut Thresholds 2

    Range: 90 - - 108% Default: 103% Luma Area Range: 0 - - 10% Default: 1% Reset Luma Defaults Press SEL to reset Reset to EBU-R103 Defaults Press SEL to reset 2- 55 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 110 Luma Area Specifies the percentage of the total image pixels (up to 10%) that can be outside the current Luma limits, yet not be reported as a Luma error. 2- 56 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 111: Display Settings Menu 2

    Table 2- 25: Display settings Setting Choices / Range Readout Intensity 0 - - 100% Default: 50% Readout Color Gold / Blue / Red Waveform Intensity - - 50 - - +50 Default: 0 2- 57 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 112 Picture Refresh Mode The Picture Refresh Mode allows you to optimize the picture mode display for different types of monitors and applications. The three possible values for this configuration item are: 2- 58 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 113 There are two controls for the front-panel backlight. One control turns the backlight on and off (Panel Backlight) and the other control sets the intensity or brightness of the backlight (Panel Backlight Intensity). 2- 59 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 114: Ltc / Vitc Menu

    4. Select the desired setting and change the setting as needed. 5. After changing the setting, press CONFIG to remove the Configuration menu. Table 2- 27: Readout settings Setting Choices / Range Waveform On / Off Vector On / Off 2- 60 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 115: Graticules Menu 2

    Displays a cursor in the PICTURE display that tracks the selected line when any tile has LINE SEL mode turned on. This feature enables you to see which line in the picture is displayed in the tile in LINE SEL mode. 2- 61 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 116: Network Settings 2

    WVR610A & WVR611A. If your network does not use DHCP, you will have to manually enter the address for the WVR610A & WVR611A. To get an address, talk to your LAN adminis- trator.

  • Page 117: Figure 2- -46: Setting Ip Address 2

    The IP (Internet Protocol) address is the network address of the WVR610A & WVR611A. If you plan to use your WVR610A & WVR611A on a network (for example, for using the web interface), you may need to set this address depend- ing on how your network assigns addresses.

  • Page 118: Figure 2- -47: Setting Subnet Mask 2

    The Subnet Mask is part of the network address of the WVR610A & WVR611A. If you plan to use your WVR610A & WVR611A on a network (for example, for using the web interface), you may need to set this parameter depending on how your network assigns addresses.
  • Page 119 3. Read the MAC address at the right of View MAC Address. Instrument Name The WVR610A & WVR611A allows you to name the instrument for identifica- tion across a network. The instrument name is a 15-character string made up of alphanumeric text.

  • Page 120: Figure 2- -48: Setting The Instrument Name 2

    1. Press CONFIG to display the Configuration menu. 2. Select Network Settings and press the right-arrow key to change the menu focus to the submenu. 3. Select SNMP Enable. 4. Press SEL to change the setting. 2- 66 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 121: Figure 2- -49: Setting The Snmp Public Community String 2

    Cancel box and press SEL. 7. After changing the setting, press CONFIG to remove the Configuration menu. SNMP Private Community This setting specifies the string that SNMP commands must include to have read/write access. 2- 67 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 122: Figure 2- -50: Setting The Snmp Private Community String 2

    1. Press CONFIG to display the Configuration menu. 2. Select Network Settings and press the right-arrow key to change the menu focus to the submenu. 3. Select SNMP Trap Enable. 4. Press SEL to change the setting. 2- 68 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 123: Figure 2- -51: Setting The Snmp Trap Address 2

    Web Enable This setting allows you to allow or deny web browser access to the waveform rasterizer. To set the Web Enable setting: 1. Press CONFIG to display the Configuration menu. 2- 69 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 124: Utilities Menu 2

    Press SEL Calibration Press SEL to Start Run Power Up Diags Press SEL Run Advanced Diags Press SEL View Diagnostic Log Press SEL Diag Log Mode Circular / Stop when full 2- 70 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 125: Figure 2- -52: Viewing Hw/Sw Version Numbers 2

    4. Use the left/right arrow keys to move the highlight to each box in the time and date fields. Use the up/down arrow keys to change the value in each box as required. 2- 71 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 126: Figure 2- -53: Setting The Internal Clock 2

    2. Select Utilities and press the right-arrow key to change the menu focus to the submenu. 3. Select CPU Color Palette Check. 4. Press SEL to display the color palette. See Figure 2- -54. 5. Press CONFIG to remove the Config menu. 2- 72 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 127: Figure 2- -54: Cpu Color Palette 2

    The System Upgrade selection is used to upgrade the system software of the WVR610A & WVR611A. The upgrade is performed access an Ethernet network using a PC to transfer the new software to the WVR610A & WVR611A. For the procedure to upgrade the system firmware, refer to Upgrading the Waveform Rasterizer Firmware on page 2- -79.

  • Page 128: Troubleshooting 6

    If your waveform rasterizer does not pass the power-up diagnostics, see the WVR610A & WVR611A Waveform Rasterizers Service Manual for information on troubleshooting. If you wish to return the waveform rasterizer to Tektronix for servicing, see page xvii for information on how to contact Tektronix.

  • Page 129: Figure 2- -56: Advanced Diagnostics Dialog Box 2

    If the waveform rasterizer does not pass the Advanced Diagnostics, see Troubleshooting on page 6- -5 for information on troubleshooting. If you wish to return the waveform rasterizer to Tektronix for servicing, see page xvii for information on how to contact Tektronix.

  • Page 130: Figure 2- -57: Diagnostics Log 2

    The name of the diagnostic routine. Additional Information Details about the diagnostic routine; entries are: NPass - - Number of passes NTotal - - Number of times the routine was run 2- 76 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 131 3. Press the right-arrow key to change the menu focus to the submenu. 4. Press Diag Log Mode from the submenu. 5. Press SEL to change the setting between Circular and Stop when full. 6. Press CONFIG to remove the menu. 2- 77 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 132 Changing Instrument Settings 2- 78 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 133: Updating The Waveform Rasterizer Firmware 2

    PC System Requirements Before you download the WVR610A & WVR611A firmware-upgrade package, verify that your PC meets these requirements. The data-transfer utility for upgrading the WVR610A & WVR611A runs on the following PC systems: H Windows 98 H Windows NT 4.0...

  • Page 134: Firmware Package Download 2

    Updating the Waveform Rasterizer Firmware Firmware Package Download You can download the latest version of the WVR610A & WVR611A firmware from the Tektronix website at the following URL: http://www.tek.com/Measurement/video_audio From there, follow the links to Software & Drivers, and then to Video Test to locate the waveform rasterizer firmware-upgrade package.

  • Page 135: Figure 2- -59: Transfer Utility Window 2

    To stop the firmware update, you can press any MEASURE button on the front-panel of the waveform rasterizer before the transfer utility begins erasing the flash ROM. Once the words Erasing Flash... appear in the transfer utility window, you cannot stop the update. 2- 81 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 136: Upgrading Multiple Instruments 2

    You can upgrade several instruments in in one session, one at a time. To do this, use the Windows Command Prompt. Enter the following line in a Command Prompt window (substituting the addresses of your machines): transfer.exe 192.181.115.1 192.181.115.2 192.181.115.3 Separate the addresses with a space. 2- 82 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 137: Verifying The Upgrade 2

    Configuration menu and instrument-mode settings are preserved. To verify the functional performance of your instrument, perform the procedures located in Performance Verification beginning on page 4- -1. 2- 83 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 138 Updating the Waveform Rasterizer Firmware 2- 84 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 139 Theory of Operation...

  • Page 141: Serial Digital Input 3

    Theory of Operation The WVR610A & WVR611A Waveform Rasterizers have serial digital and optional analog composite inputs. Optionally, they can also have analog only, digital only, or digital and analog audio capability. All models use an external XGA monitor for the display. This section covers the full capability, so some portions may not apply to a model with fewer features.
  • Page 142 This results in a display that is bright where the signal is most of the time and dim where it has only passed only once or a few times. For any 3- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 143: Recursion And Picture Processing Engine 3

    If selected by the user, the decoded time values can be displayed on the XGA monitor and used to time stamp alarm log entries. 3- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 144: Options 7

    Audio DSP chips. A 96 kHz rate AES signal is not up-sampled. Analog inputs are digitized at 48 kHz and then go through the same up-sampling by the FPGA and processing by the DSP chips as the AES inputs. 3- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...

  • Page 145: Diagrams 8

    Faults are usually also sent independently to the control processor. For details about the circuits that can assert the fault light and their associated local LEDs, refer to the Troubleshooting on page 6- -5. 3- 5 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 146 Theory of Operation Power Supply and Distribution The power supply for the WVR610A & WVR611A has a universal AC input that enables it to accommodate 100 to 264 VAC without any user range switching. The output is 5 V DC, which is then converted to all the other necessary supply voltages by circuits at the point of usage.
  • Page 147 Performance Verification...
  • Page 149 Performance Verification This section contains a collection of manual procedures for checking that the WVR610A & WVR611A Waveform Rasterizers perform as warranted. The procedures are arranged in two basic sections: Incoming Inspection Procedures and Performance Verification Procedures. They check all the characteristics that are designated as checked in Specifications.
  • Page 150 Performance Verification WVR610A & WVR611A Waveform Rasterizer Functional Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Functional Test (Incoming Inspection) Incoming Outgoing Comments Basic Turn On and Self Test Front Panel LEDs POST Front Panel Test...
  • Page 151 Performance Verification WVR610A & WVR611A Waveform Rasterizer Functional Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Functional Test (Incoming Inspection) Incoming Outgoing Comments Digital Audio Output AES B 1- - 2 Audio Output...
  • Page 152 Composite Analog Line Rate Tilt - - 0.5% +0.5% (- - 3.5mv) (+3.5mv) Composite Analog Input Return Loss, A and B Inputs Input A - - 40 dB Input B - - 40 dB 4- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 153 Composite Analog Input DC Offset with Restore Off - - 20mv 20mv Composite Analog Input Clamp Off Check Pass/Fail Composite Analog Input DC Restore Hum Attenuation Fast Mode (0mv) (35mv) Slow Mode 110% (643mv) (785mv) 4- 5 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 154 Performance Verification WVR610A Waveform Rasterizer Video Performance Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum SDI Input Level Low and High SDI Input low level SDI Input high level...
  • Page 155 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DA Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum AES Audio Return Loss AES A 1- - 2 In...
  • Page 156 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DA Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum AES Audio Output Jitter AES B 1- - 2 I/O...
  • Page 157 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DA Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum Analog Audio Level Meter Accuracy Over Frequency Analog Input A1 (100 Hz) - - 6.5dB FS...
  • Page 158 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DA Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum Analog Input B1 (19 kHz) - - 6.5dB FS - - 5.5dB FS...
  • Page 159 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DG Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum AES Audio Return Loss AES A 1- - 2 In...
  • Page 160 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option DG Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum AES Audio Output Jitter AES B 1- - 2 I/O...
  • Page 161 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option AN Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum Analog Audio Level Meter Accuracy Over Frequency Analog Input A1 (100 Hz) - - 6.5dB FS...
  • Page 162 Performance Verification WVR610A & WVR611A Waveform Rasterizer Audio Option AN Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: Performance Test Minimum Incoming Outgoing Maximum Analog Input B2 (19 kHz) - - 6.5dB FS - - 5.5dB FS...
  • Page 163 Performance Verification Incoming Inspection Procedures Use the following procedures to check the basic functionality of a WVR610A or WVR611A waveform rasterizer. The checks are arranged by model and option so that you can choose the sections that are appropriate for your instrument. The last two sections are for less critical waveform rasterizer features: the ground closure and Ethernet ports.
  • Page 164 8. After the diagnostics are finished, the instrument state will be restored. When the progress indicator in the lower-right part of the screen is finished, the instrument has finished initializing. Record Pass or Fail for the POST in the test record. 4- 16 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 165 8. Verify the XGA DAC is working by looking at the White and Red ramps at the top of the screen, and at the Green and Blue ramps at the bottom of the 4- 17 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 166 3. Press and hold WFM to bring up the WFM pop-up menu. 4. Use the arrow keys to select the Pr and Pb waveforms and turn them off. 5. Press the 5X gain button. 4- 18 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 167 10. Both WFM tiles should “unlock” and scroll. 11. The status bar in the lower left-hand corner of the display should display Ref: Ext. Missing. 12. Record Pass or Fail for Ref Missing in the test record. 4- 19 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 168 10. Record Pass or Fail in the test record. Analog Audio Output 1. Press FACTORY to restore the factory preset. 2. Press and hold the display select button 4 to display the AUDIO pop-up menu. 4- 20 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 169 4. In the Audio Input submenu, select AES A. 5. Connect the output of the digital audio generator to the AES A 1-2 input. 6. Verify that the first set of level meter bars indicates –6 dBFS. 4- 21 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 170 1 to 0 dB on channel 8. 20. Record Pass or Fail for Embedded Display in the test record. 21. Bring up the audio tile pop-up and set the phase pair to 1 & 2. 4- 22 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 171 3. Connect the TG2000 DVG1 SDI output to the SDI A input. Terminate the loopthrough. 4. Connect the TG2000 composite output to the video input of the Timecode generator. 5. Select any NTSC signal for the AVG1. 4- 23 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 172 14. Use the arrow keys to get to the top right corner of the SDI Input error check box, and press SEL to put an “X” in the box for the Ground Closure 4- 24 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 173 10. You should see a Web page that lists several options for accessing the waveform rasterizer from the PC. If this happens, then the Ethernet function is working. 11. Record Pass or Fail for Ethernet in the test record. 4- 25 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 174 Performance Verification Video and General Performance Verification Procedures This section applies to both the WVR610A & WVR611A. The first portion is applicable for both, the later portion is only needed for the WVR611A model. Some “common” tests are done differently for the two models. These exception cases are indicated as being only for one model or the other.
  • Page 175 013- - 0076- - 01 Note that the AVC1 is not available outside of Tektronix. Other equipment can be substituted but it might not have sufficient accuracy to guarantee the specifications. For Hum insertion, a general-purpose sine wave generator can be used to terminate and drive back into the video signal through appropriate impedance matching.
  • Page 176 5. Connect a cable to the Normal output from the TG2000 DVG (not the Opt S1 output). Typically the Normal output is the top BNC on the DVG1 module. 6. Connect the other end of the cable to the Faraday Cable clone. 4- 28 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 177 8. Connect the second DVG1 to one of the SDI Input B connectors. 9. Set the signal driving SDI Input B to 100% color bars. 10. Set the time base on the second signal to 1 ppm high. 4- 29 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 178 5. Terminate the other Reference connector. 6. Measure the Return loss from 300 kHz to 6 MHz. Record the lowest return loss value (the biggest reflection) over the frequency range in the test record. 4- 30 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 179 6. Increase the negative time base offset until the waveform rasterizer cannot sustain lock. Record the maximum offset capability in the log table. 7. Repeat steps 5 and 6 for positive time base offsets. 4- 31 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 180 3. Connect either a digital or composite signal from the TG2000 to the waveform rasterizer and select the appropriate input to display the signal. For a WVR610A you must use a digital signal; for a WVR611A you can use an analog signal for more sensitivity to external reference performance.
  • Page 181 RCA connector, and pin 6 is connected to the shield of the RCA connector. Pin 8 of the Remote connector is connected to the center pin of the BNC and pin 6 goes to the shield of the BNC. 4- 33 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 182 4. Connect the 10 kHz square wave source to the BNC on the remote cable. Set the square wave amplitude to 5 V. If necessary, use an oscilloscope to verify the amplitude is accurate. 4- 34 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 183 The variable gain readout indicates the error in the input circuit. A gain of 1.03 indicates the input gain error is –3%. Record the gain error in the test record. This completes the tests for the WVR610A. The following tests are for the WVR611A only.
  • Page 184 Follow the instructions at the bottom of the screen to Save and Exit calibration mode. Afterwards, repeat the above test for Analog Frequency Response and record the new value in the test record. 4- 36 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 185 10. Press MAG to expand the pulse horizontally. 11. Position the second cursor on the top of the pulse. 12. Record the cursor delta in the test record. 4- 37 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 186 Spectrum Analyzer, tracking generator, and return loss bridge to make this measurement. 1. Turn on the network analyzer and set it for Return loss, the S11 measure- ment. 4- 38 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 187 Follow the instructions at the bottom of the screen to Save and Exit calibration mode. Afterwards, repeat the above test for and record the new value in the test record. 4- 39 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 188 10. Select CONFIG > Composite Input > DC Restore > Slow. 11. Measure the peak-to-peak hum with the cursors. It should be between 90% and 110% of the measurement in step 6. 12. Record the value in the test record. 4- 40 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 189 012-1658-01 Calculator Logarithmic function The following tests verify that the Audio module for the WVR610A & WVR611A waveform rasterizers meets the warranted characteristics listed in the Specifications chapter. Characteristics with typical specifications (not warranted) are also checked with pass / fail criteria.
  • Page 190 NOTE. The reference level should be between 150 mV and 200 mV. Adjust the output level of the sine wave generator if necessary to obtain the correct output level. 8. Press and hold the display select button 4 to display the AUDIO pop-up menu. 4- 42 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 191 A 1- -2 In BNC connector using a 75 Ω cable. 3. Set the digital audio generator as follows: H Frequency 1 kHz H Output Level - -20 dB FS Audio Tone 4- 43 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 192 75 Ω cable. 6. Connect a 75 Ω terminator to the other SDI A Loopthrough connector. 7. Set the SD video generator for a 525- -format 100% color bars signal. 4- 44 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 193 6. Connect a 75 Ω terminator to the other SDI A Loopthrough connector. 7. Set the SD video generator for a 525-format 100% color bars signal. 8. Set the SD video generator for 2 groups of embedded audio, starting with group 1. 4- 45 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 194 8. Set the digital audio generator as follows: H Frequency 1 kHz H Output Level - -6 dB FS Audio Tone H Sample Frequency 48 kHz 9. Repeat steps 5 through 7. 4- 46 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 195 9. Repeat step 8 for the other five Input A XLR connectors. 10. Set the analog audio generator as follows: H Frequency 1 kHz H Output Level 18 dBu Audio Tone H Output Impedance 10 Ω 4- 47 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 196 24. Press and hold 4 to display the Calibration pop-up menu. 25. Select Exit to leave the calibration screen. 26. Check for an indication of –6 dB FS in the newly adjusted audio bar. 4- 48 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 197 13. Connect the analog audio break out cable to the Analog Audio I/O connector. 14. Connect the Output 1 XLR of the breakout cable to the analyzer balanced (BAL) analog input. 4- 49 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 198 Analog Output 0, Analog Output 1 and Analog Output 2. 6. Press CONFIG again to remove the Config menu. 7. Press and hold 4 to display the AUDIO pop-up menu. 8. In the Audio Input submenu, select Analog A. 4- 50 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 199 24. Check for an indication of –6 dB FS in the corresponding bar. 25. Connect the Output 1 XLR of the breakout cable to the analyzer balanced (BAL) analog input. 4- 51 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 200 42. Check for an RMS indication of 18 dBu ¦1.0 dB on the analog analyzer, and record the pass/fail result in the test record. 43. Repeat step 42 for Output 4 and Output 6. The completes the Performance Verification procedures. 4- 52 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 201 Adjustment Procedures...
  • Page 203 (WVR611A only), Composite Analog Input DC Offset Restore Off (WVR611A only), and Analog Audio Level Meter Accuracy Over Frequency (Options AN and DA only) procedures in Performance Verification for the adjustment procedures. 5- 1 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 204 Adjustments 5- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 205 Maintenance...
  • Page 207 4. Nothing capable of generating or holding a static charge should be allowed on the work station surface. 5. Handle circuit boards by the edges when possible. 6- 1 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 208 If any dirt remains, use a cloth or swab dipped in a 75% isopropyl alcohol solution. Use a swab to clean narrow spaces around controls and connectors. Do not use abrasive compounds on any part of the chassis that may damage the chassis. 6- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 209 If any circuit board is repaired or replaced, check Table 6- -2 in Section 5 to see if it is necessary to adjust the waveform rasterizer. CAUTION. To prevent damage from electrical arcing, ensure that circuit boards and components are dry before applying power to the waveform rasterizer. 6- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 210 5. Spray wash dirty parts with the isopropyl alcohol and wait 60 seconds for the majority of the alcohol to evaporate. 6. Dry all parts with low-pressure, deionized air. 6- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 211 AES Audio Signal Generator 48 kHz, 24 bit word length signals Rohde & Schwarz UPL06, Tektronix AM700 and AM70. Analog Audio Signal Generator Rohde & Schwarz UPL06, Tektronix AM700 and AM70. 6- 5 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 212 Review messages in diagnostic log (POST): Perform primary power supply checks TIMECODE_DECODER_COMM Perform secondary power supply checks SDI_GENNUM_COM Replace the main board SDI_CPLD_COMM SDI_ENCODER_COMM COMP_FPGA_COMM RASTER_FPGA_PROG RASTER_FPGA_COMM VGA_CLK_INIT WFM_FPGA_PROG WFM_FPGA_COMM COMP_VIP_COMM 6- 6 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 213 ADV_DIAG_LSS If only this test fails, then perform Isolating Advanced Diagnostic Lissajous Errors procedure to isolate the problem to main or audio board. 6- 7 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 214 If it does, then search for an intermittent problem in the audio board, cables, or main board. 6- 8 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 215 Detailed Troubleshooting Procedures The following tests should be run as indicated in the Symptom and Causes table above. The procedures check for specific problems or will help you isolate a 6- 9 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 216 LEDs associated with the circuit. See Figure 8- -1 on page 8- -1, Figure 8- -2 on page 8- -2, Figure 8- -3 on page 8- -3, and Figure 8- -4 on 6- 10 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 217 DSP. The following conditions can assert the FAULT LED from the DSP circuitry: H Over temperature 3.3 V supply H Over temperature 1.8 V supply H Over temperature 1.5 V supply 6- 11 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 218 If the Front panel asserts the Fault line, then replace the front panel board. The front-panel processor asserts the fault indicator for about 1 second during reset. If it does not finish initializing and running internal diagnostics, then the 6- 12 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 219 If the input voltage is correct while the output is not, replace the supply. If the input voltage is not correct replace the element in the chain that is not passing the AC input. 6- 13 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 220 Measure at +7.65 to 8.4 TP170 - - 8 - - 8.65 to - - 7.7 TP171 - - 5 - - 5.2 to –4.8 TP172 +5 “good” +4.75 to 5.25 TP173 6- 14 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 221 If not, suspect the front panel board. 5. If pin 3 of J390 is toggling and DS971 is not, then the RS232 receiver on the main board is not working. Replace the main board. 6- 15 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 222 This test isolates an audio POST failure to either the audio board, main board, or the cable between. 6- 16 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 223 Probe pins 15 and 18 on connector J750 during boot-up and verify that the signals toggle. If they don’t, suspect the main board. If they do, 6- 17 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 224 H Liss[0] Frequency : should be between 19.8 MHz and 20.1 MHz H Liss[1] Frequency : should be between 19.8 MHz and 20.1 MHz H Lissajous[0] Bus : pass/fail 6- 18 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 225 If the signal on pin 21 looks OK, put the scope probe on pin 23. Pin 23 is the data line and the signal will have a somewhat random look 6- 19 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 226 Verify that it is toggling and is ¶3 V p- - p If either signal is bad, suspect the cable, otherwise replace the main board. 6- 20 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 227 When repacking the instrument for shipment, use the original packaging. If the packaging is unavailable or unfit for use, contact your local Tektronix representa- tive to obtain new packaging. Refer to Contacting Tektronix on page xvii for the mailing address, the email address, and phone number.
  • Page 228 Repackaging Instructions 6- 22 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 229 Options...
  • Page 231 H Option DA. Both analog and digital capabilities installed. Service Options The following service options are available for the WVR610A & WVR611A: H Option R3. Extends the instrument warranty to 3 years. H Option R5. Extends the instrument warranty to 5 years.
  • Page 232 061-4260-XX. Power Cords All WVR610A & WVR611A Waveform Rasterizers are shipped with one of the following power cord options. Power cords for use in North America are UL listed and CSA certified. Cords for use in areas other than North America are approved by at least one authority acceptable in the country to which the product is shipped.
  • Page 233 Options and Accessories Optional Accessories The following items are optional accessories: H WVR610A & WVR611A Waveform Rasterizers Service Manual, Tektronix part number 071-1243-XX. H Analog/Audio Breakout Cable Assembly, Tektronix part number 012-1658-01. 7- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 234 Options and Accessories 7- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 235 Diagrams...
  • Page 237 DS880 Fan fault Power Front panel DSP fault J190 J581 J890 connector LEDs S770 F580, F581, Digital F680, F570 Figure 8- 1: Main board indicator LED, connector, and test point locations 8- 1 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 238 Diagrams Local fault LED Figure 8- 2: Audio board component side indicator LED, location 8- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 239 Diagrams Secondary supply test points Local fault Figure 8- 3: Audio board back side indicator LED and test point locations 8- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 240 Diagrams Local fault LED Global fault LED Figure 8- 4: Front panel board indicator LED locations (viewed from back side) 8- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 241 Figure 8- 5: High-level signal flow block diagram WVR610A & WVR611A Waveform Rasterizers Service Manual 8- 5...
  • Page 242 Figure 8- 6: High-level fault and fan block diagram WVR610A & WVR611A Waveform Rasterizers Service Manual 8- 6...
  • Page 243 Replaceable Electrical Parts...
  • Page 245 Section 10, Mechanical Parts List. Refer to that section for part numbers when using this manual. In general, circuit boards are exchanged when faulty, though there are a few individual components that can be replaced. 9- 1 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 246 Electrical Parts List 9- 2 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 247 Replaceable Mechanical Parts...
  • Page 249 Replaceable Parts This section contains a list of the replaceable modules for the WVR610A & WVR611A Waveform Rasterizers. Use this list to identify and order replacement parts. Note that not all parts listed in this section are present on every model. The parts present will depend on the model and options installed.
  • Page 250 Using the Replaceable Parts List This section contains a list of the mechanical and/or electrical components that are replaceable for the WVR610A & WVR611A Waveform Rasterizers. Use this list to identify and order replacement parts. The following table describes each column in the parts list.
  • Page 251 468 AMAPOLA AVE TORRANCE, CA 90501 TK0588 UNIVERSAL PRECISION PRODUCT 1775 NW CORNELIUS PASS RD HILLSBORO, OR 97124 TK0941 APPLIED INDUSTRIAL TECHNOLOGIES 5041 NW FRONT AVE PORTLAND, OR 97210- - 1702 10- 3 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 252 C/O TEK HOLLAND N.V.~PO BOX 526 HEERENVEEN 8440 AM, 60 TK2058 TDK CORPORATION OF AMERICA 1600 FEEHANVILLE DRIVE MOUNT PROSPECT, IL 60056 TK6565 WRICO STAMPING CO 1310 N HOBSON STREET GILBERT, AZ 85233- - 1207 10- 4 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 253 KNOB; SILVER GRAY, 0.420OD, 0.520H, PC/ABS BAYBLEND TK0JO FR110,F PANEL Note: 260-2774-XX is used on both the WVR610A and WVR611A. To use this part on the WVR610A, you must cut off the two buttons provided for the CMPST inputs. 10-1-20 260-2774-00 SWITCH,KEYPAD;ELASTOMERIC,F PANEL,PUSHBUTTON...
  • Page 254 200 0HM IMP, 20- - 300MHZ, 50V, 0.5A; 8 PIN SMD 10-2-46 131-7257-00 CONN,JACK; PCB/PNL,RJ45,CAT5,W/LEDS YELLOW & TK1898 RJMG-6312-71-01 GREEN,FEMALE,RTANG,8 POS,0.1 CTR,0.528 H X 0.138 TAIL 10-2-47 260-5015-00 SWITCH,PUSH;SPST,TACT;50MA,50V,MOMENTARY,SILVER 31918 KSC221GB CONTACTS;KSC221G,GULLWING SMD 10- 6 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 255 B011456 CKT BD ASSY; ANALOG AUDIO,389- - 3255- - 00, OPT AN 80009 671559802 WVR610A 671-5598-02 B011956 CKT BD ASSY; ANALOG AUDIO,389- - 3255- - 00, OPT AN 80009 671559802 WVR611A 10- 7 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 256 CONN,HDR; SMD,SYS50;MALE,STR,2 X 20,0.05 X 0.1 00779 147377-4 CTR,0.480H,SHRD/4,CTR PLZ,LATCHING,30 GOLD OPTION DG - - END OPTION DA - - START 10-3-1 671-5378-00 CKT BD ASSY; OPT AES/ANALOG AUDIO,389- - 3255- - 00 80009 671537800 10- 8 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 257 CTR,0.480H,SHRD/4,CTR PLZ,LATCHING,30 GOLD 10-7-2 200-4804-00 COVER; SHIELD,ELEC CONN,37 POS DSUB,ZINC 13509 17-1657-37 10-7-3 131-0422-00 CONN,DSUB; SLDR CUP/PNL;MALE,STR,37 POS,0.112 TK2006 11-2960 CTR,0.186 H X 0.126 TAIL,0.125 DIA THRU MTG OPTION DA - - END 10- 9 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 258 Replaceable Parts Figure 10- 1: Replaceable mechanical parts 10- 10 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 259 Replaceable Parts Figure 10- 2: Replaceable cables, connectors, and mechanical parts 10- 11 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 260 Replaceable Parts Figure 10- 3: Audio option boards and connectors 10- 12 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 261 U451 (heatsink only) U450 (heatsink only) S950 U560 (heatsink DS880 only) BT880 F790 J190 J581 J890 J390 S770 F580, F581, F680, F570 Figure 10- 4: Main board replaceable components and connectors 10- 13 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 262 E282, E285, E286, E287, E290, E291, E294, E295, E298, E299 JR170 E650, E750, E751, E850 J940 E210, E211, E220, E230, E231, E240, E250, E264 J400 Figure 10- 5: Audio board component-side components and connectors 10- 14 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 263 Replaceable Parts E0262, E0263, E0272, E0273, E0276, E0277, E0280, E0281, E0284, E0285, E0288, E0289, E0292, E0293, E0296, E0297, E0300, E0301 Figure 10- 6: Audio board back-side components 10- 15 WVR610A & WVR611A Waveform Rasterizers Service Manual...
  • Page 264 Replaceable Parts Figure 10- 7: Analog audio breakout cable assembly 10- 16 WVR610A & WVR611A Waveform Rasterizers Service Manual...

This manual is also suitable for:

Wvr611a

Table of Contents
