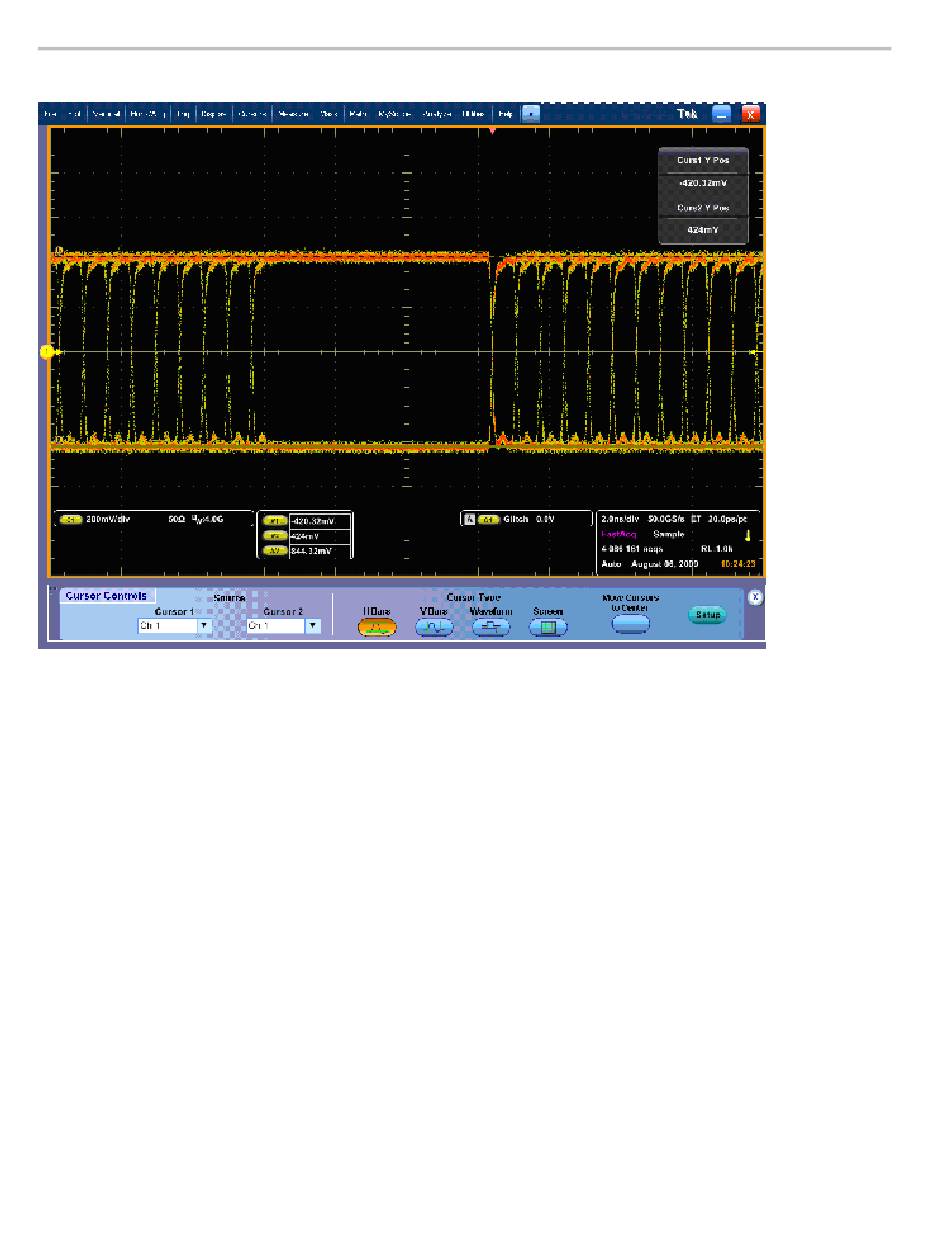

Figure 2: Serial Output at 1.5 Gb/s, using Glitch Trigger mode

11. Record the amplitude (ΔV) in the test record for 1.5 Gb/s. Amplitudes

between 745 mV and 849 mV are acceptable.

12. If your instrument has Option 3G, perform steps 13 through 15.

13. Move the cable connection from the TG700 HDVG7 to the HD3G7 SIGNAL

1 output. The waveform on the test oscilloscope will change, reﬂecting the

3 Gb/s serial rate. Select 100% color bars on the HD3G7.

14. Check the signal amplitude, using the 7 ns wide region without transitions.

The amplitude should be very similar to that observed in step 7. Outside

of the 7 ns region, check that the eye is open between transitions. See the

following ﬁgure.
