VLT
®
HVAC Drive Instruction Manual
4.1.25 Control Terminals
Drawing reference numbers:
1.
10-pole plug, digital I/O.
2.
3-pole plug, RS-485 bus.
3.
6-pole, analog I/O.
4.
USB connection.
4.1.26 Electrical Installation and Control Cables

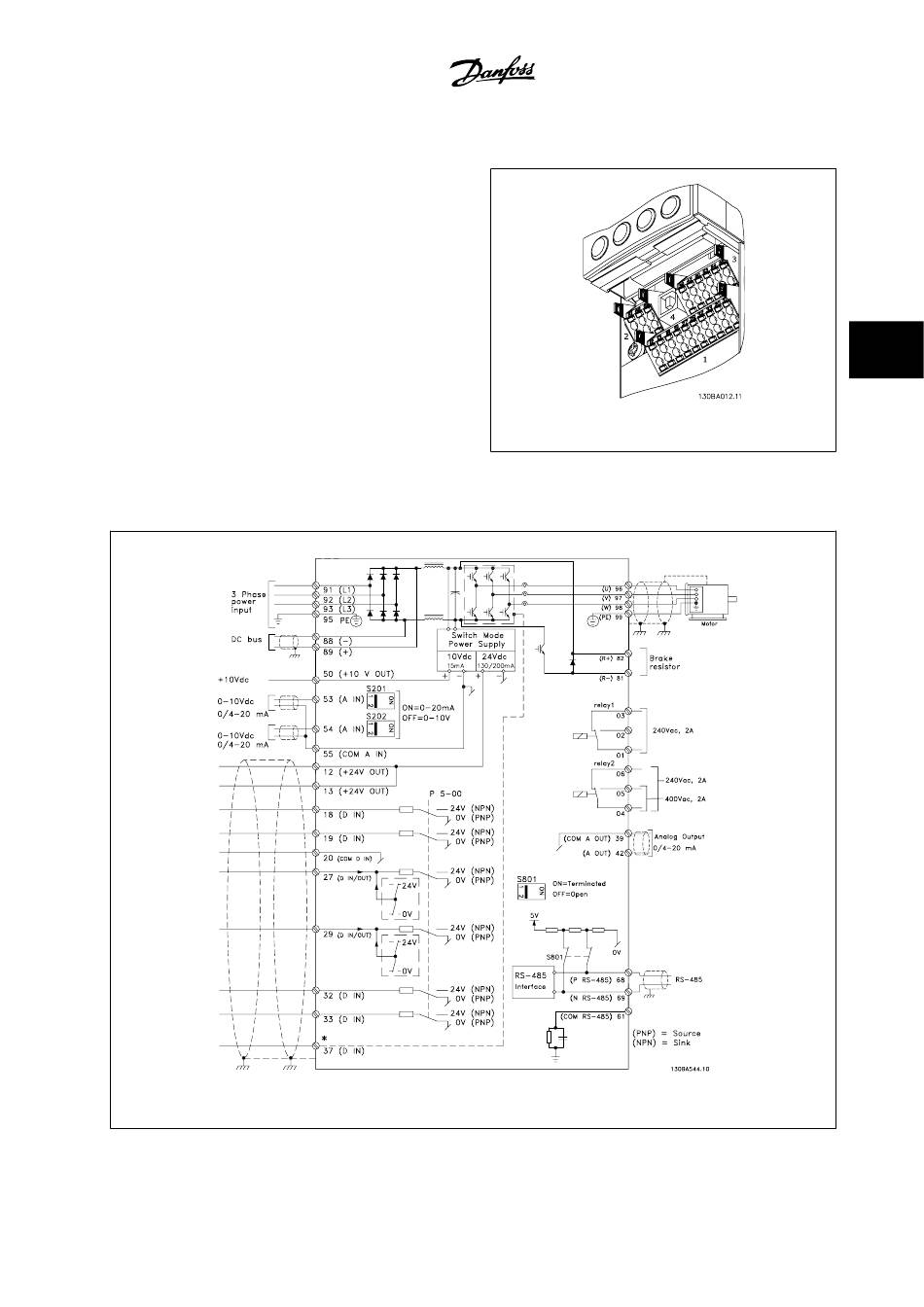

Figure 4.49: Diagram showing all electrical terminals. (Terminal 37 present for units with safe stop function only.)
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark
Figure 4.48: Control terminals (all enclosures)
4 Electrical installation
4
4-27
