VLT
®
HVAC Drive Instruction Manual

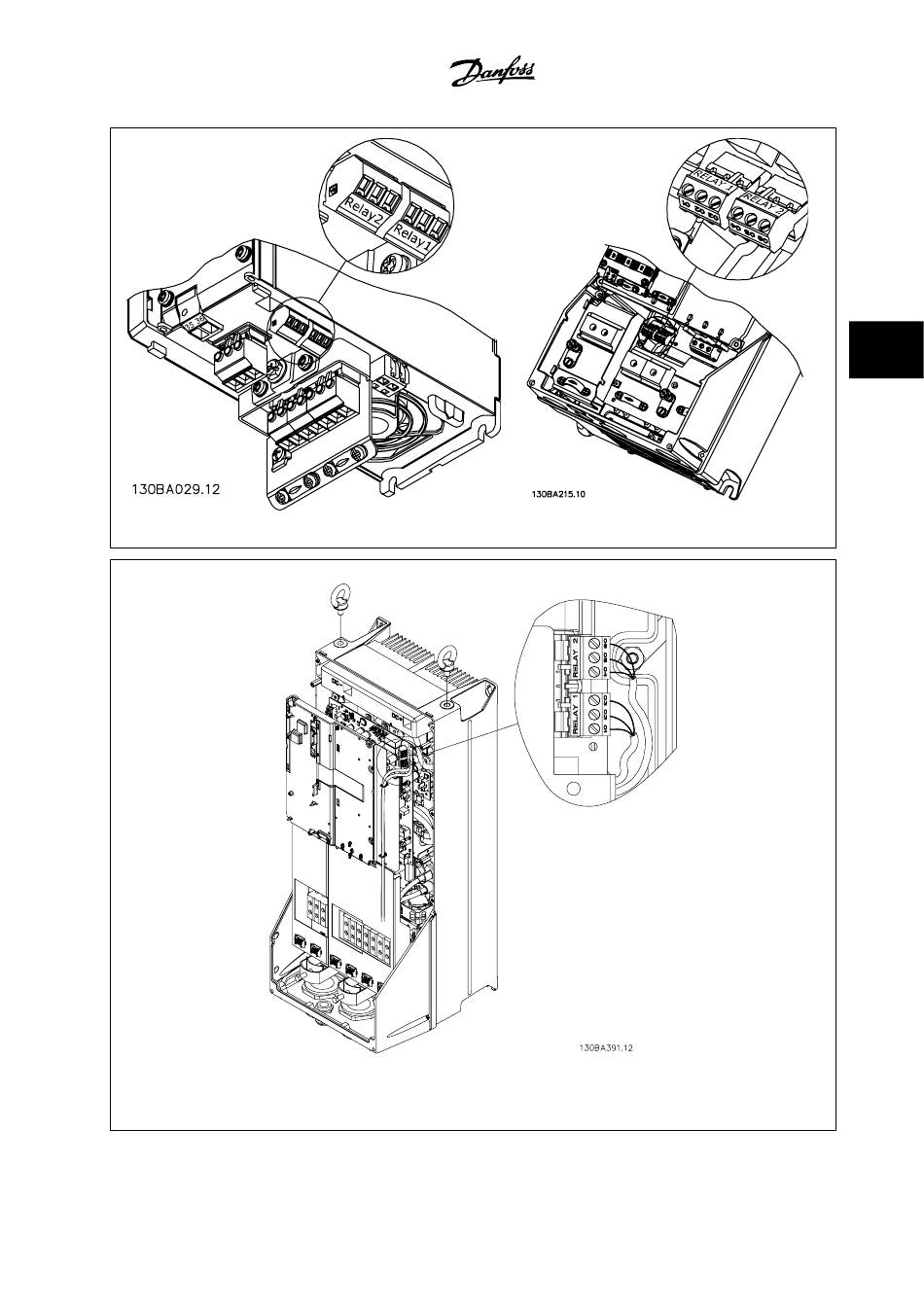

Terminals for relay connection
(A2 and A3 enclosures).
Figure 4.33: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the accessory bag) fitted.
Terminals for relay connection
(A5, B1 and B2 enclosures).
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark
