4 Electrical installation
4.1.15 Motor connection for B3 and B4
4

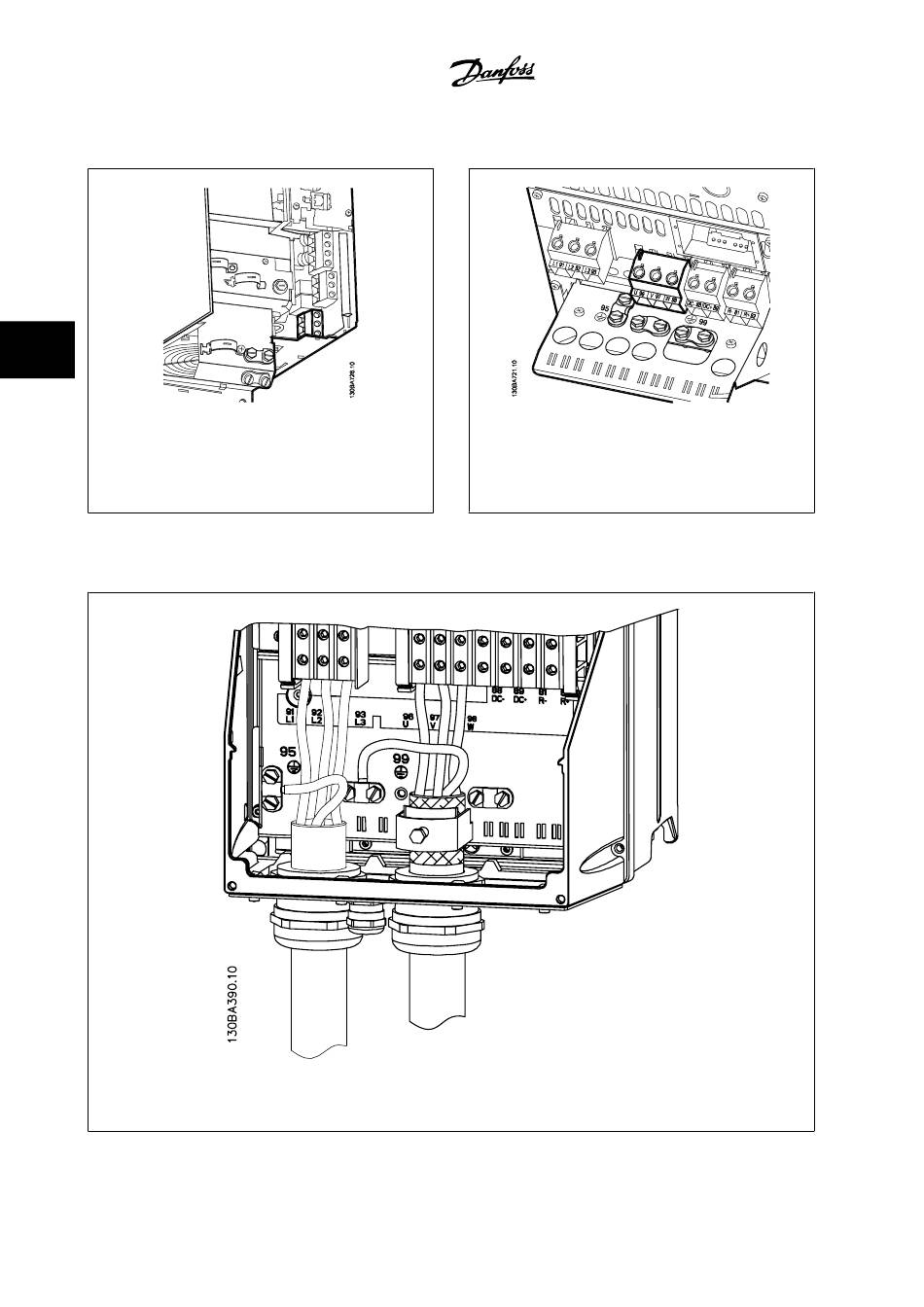

Figure 4.20: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
4.1.16 Motor connection for C1 and C2
Figure 4.22: First terminate the motor ground, then place motor U, V and W wires in the terminal and tighten them. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
4-16
Figure 4.21: First terminate the motor ground, then place
motor U, V and W wires in the terminal and tighten them.
Please ensure that the outer insulation of the motor cable is
removed under the EMC clamp.
MG.11.A9.22 - VLT ® is a registered Danfoss trademark
VLT ® HVAC Drive Instruction Manual
