VLT ® HVAC Drive Instruction Manual
4.1.13 Motor connection for A5

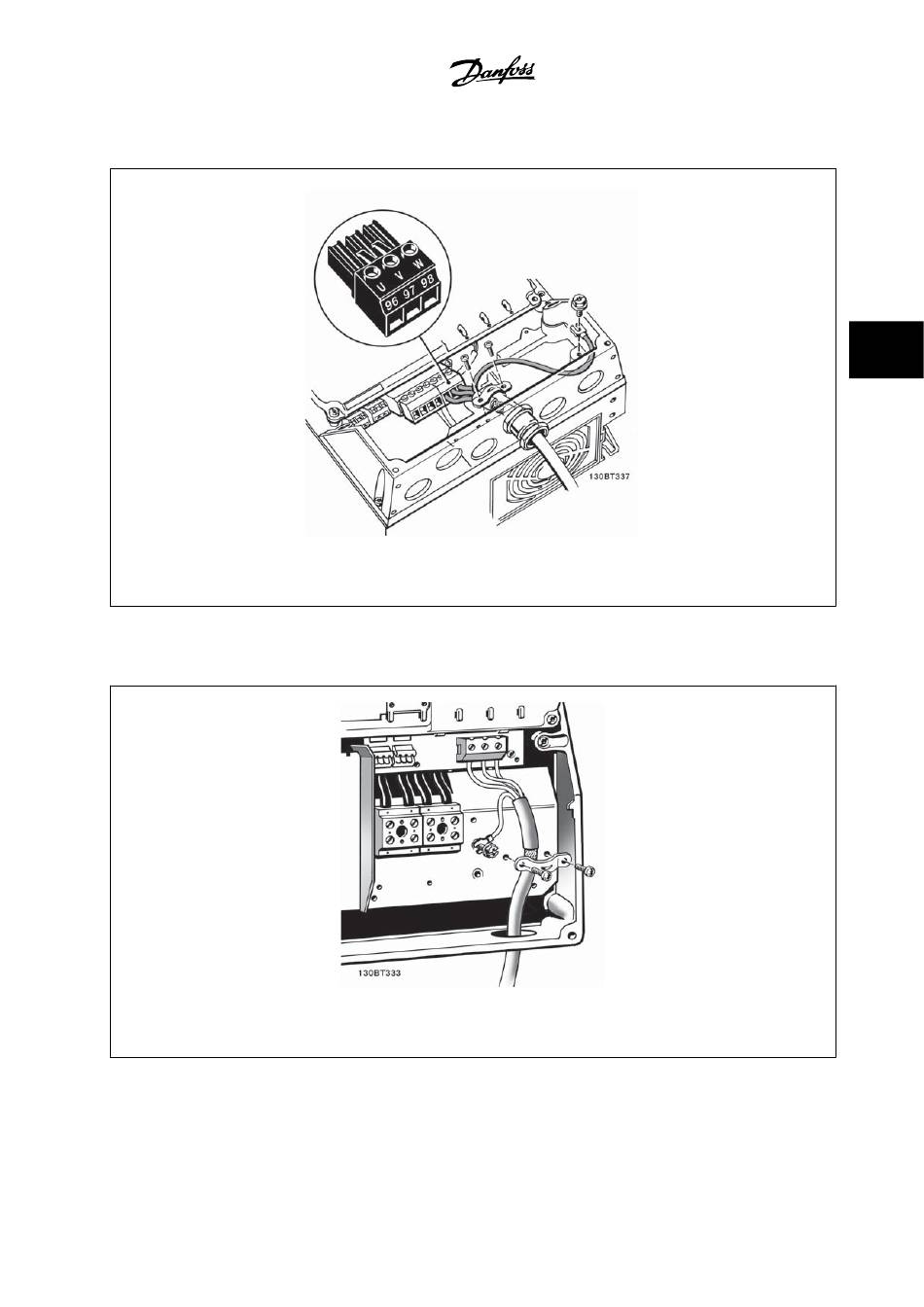

Figure 4.18: First, terminate the motor ground, then insert the motor U, V and W wires in the terminal and tighten them. Please ensure that
the outer insulation of the motor cable is removed under the EMC clamp.
4.1.14 Motor connection for B1 and B2
Figure 4.19: First terminate the motor ground, then place motor U, V and W wires in the terminal and tighten them. Please ensure that the
outer insulation of the motor cable is removed under the EMC clamp.
