VLT ® HVAC Drive Instruction Manual

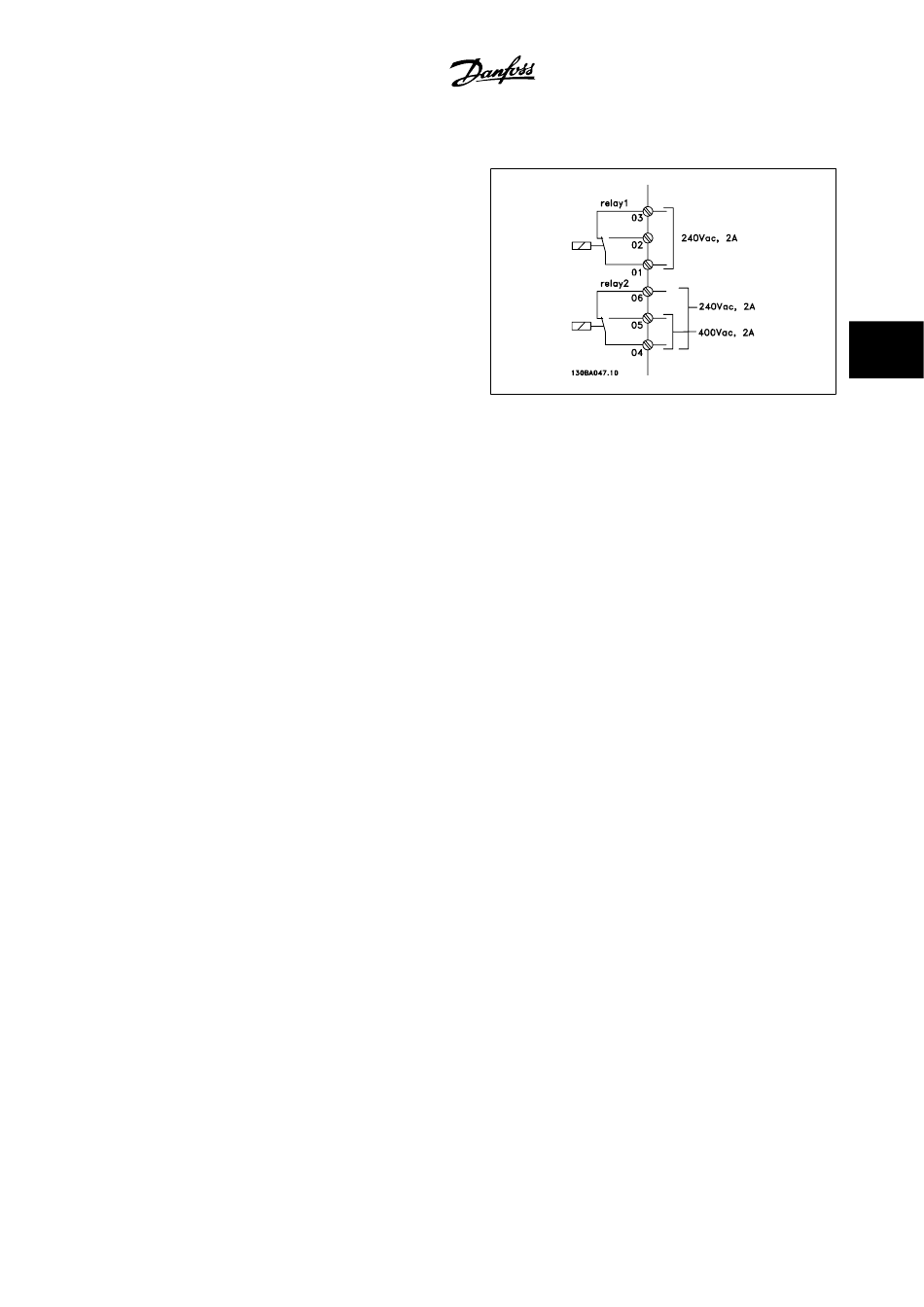

4.1.22 Relay Output
Relay 1
• Terminal 01: common
• Terminal 02: normal open 240 V AC
• Terminal 03: normal closed 240 V AC
Relay 2
• Terminal 04: common
• Terminal 05: normal open 400 V AC
• Terminal 06: normal closed 240 V AC
Relay 1 and relay 2 are programmed in par.5-40
On Delay, Relay
par. 5-41 , and par. 5-42
Additional relay outputs by using option module MCB 105.
Function Relay ,
Off Delay, Relay
.
MG.11.A9.22 - VLT ® is a registered Danfoss trademark
4 Electrical installation
4
4-23
