I/O Outlets

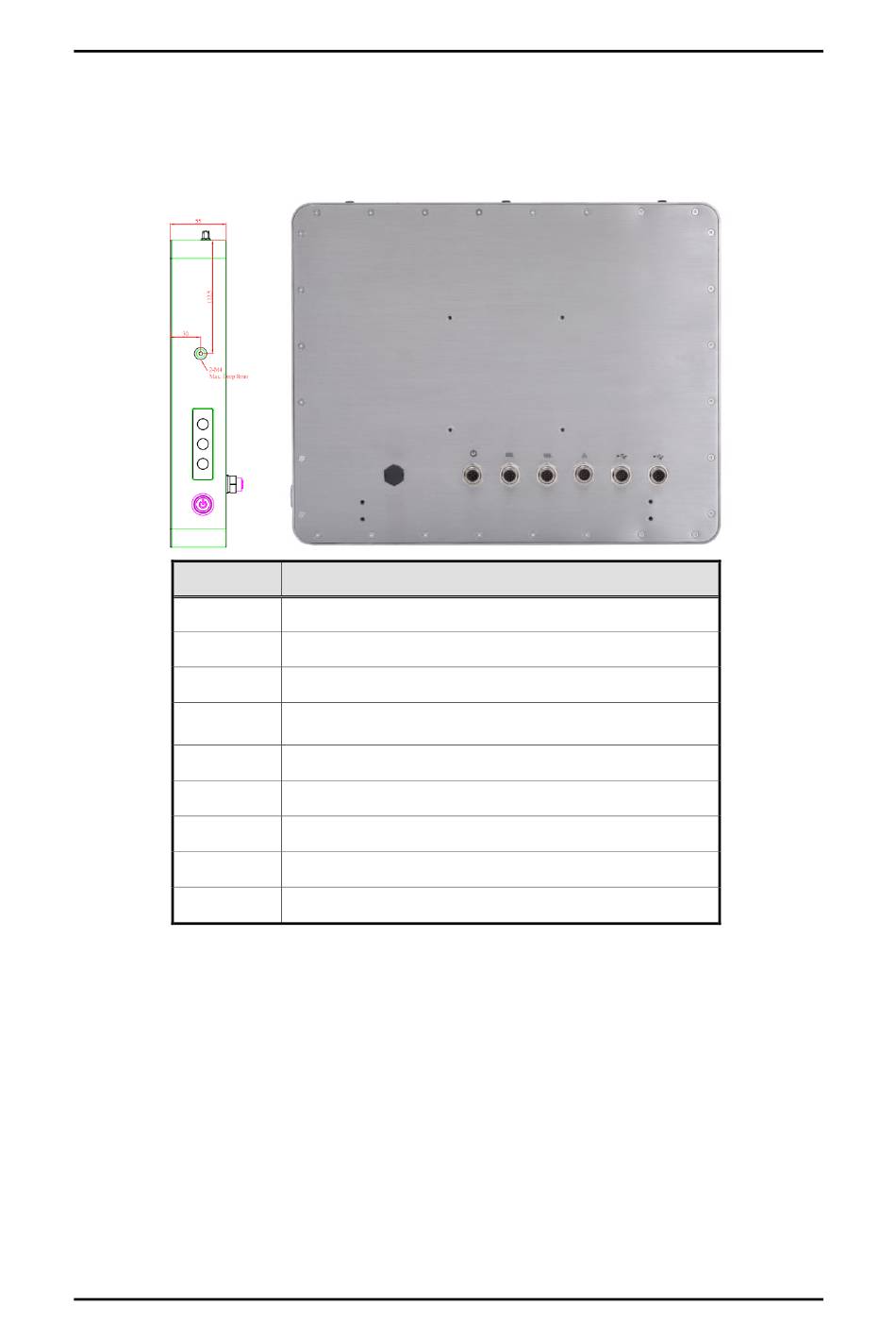

Please refer to the following illustration for I/O locations of the GOT817-834.
1
2
3
No
1
2
3
4
5
6
7
8
9
Introduction
Function
Backlight ON/OFF
Brightness Adjust
Power Switch(ATX)
DC power connector (A-coded)
COM1(configure RS422/485, default RS-232, A-coded)
COM2(configure RS422/485, default RS-232, A-coded)
Ethernet (X-coded)
USB2.0 × 2 (A-coded)
USB2.0 × 2 (A-coded)
