CDD-880 Multi Receiver Router
Ethernet-based Remote Product Management
6.3.2.4
Admin | Firmware
Chapter 4. UPDATING FIRMWARE
The Administrator must use this page to select which image (boot Slot #) is to be designated as
the active running firmware image – i.e., the version loaded for operation upon power-up or
soft reboot.
Firmware Information
This read-only status section displays the operating status for the CDD-880 FW-0000423
firmware versions loaded into Slot #1 and Slot #2.
Firmware Configuration
Use the Boot From: drop-down list to select Latest, Slot 1, or Slot 2. The default selection is
Latest, in which the unit will automatically select the image that contains the most current
firmware.
Click [Submit] to save. Note that the Firmware Information section, which in Figure 6-8 displays
Slot #1 as the designated active running firmware image, will not update until after the unit is
rebooted.
System Reboot
Click [Reboot] to reboot the CDD-880. Once the unit reboots, you must log in once again to
resume use of the HTTP Interface. See the Utility | Reboot page (Sect. 6.3.5.2) for full details
about the reboot process.

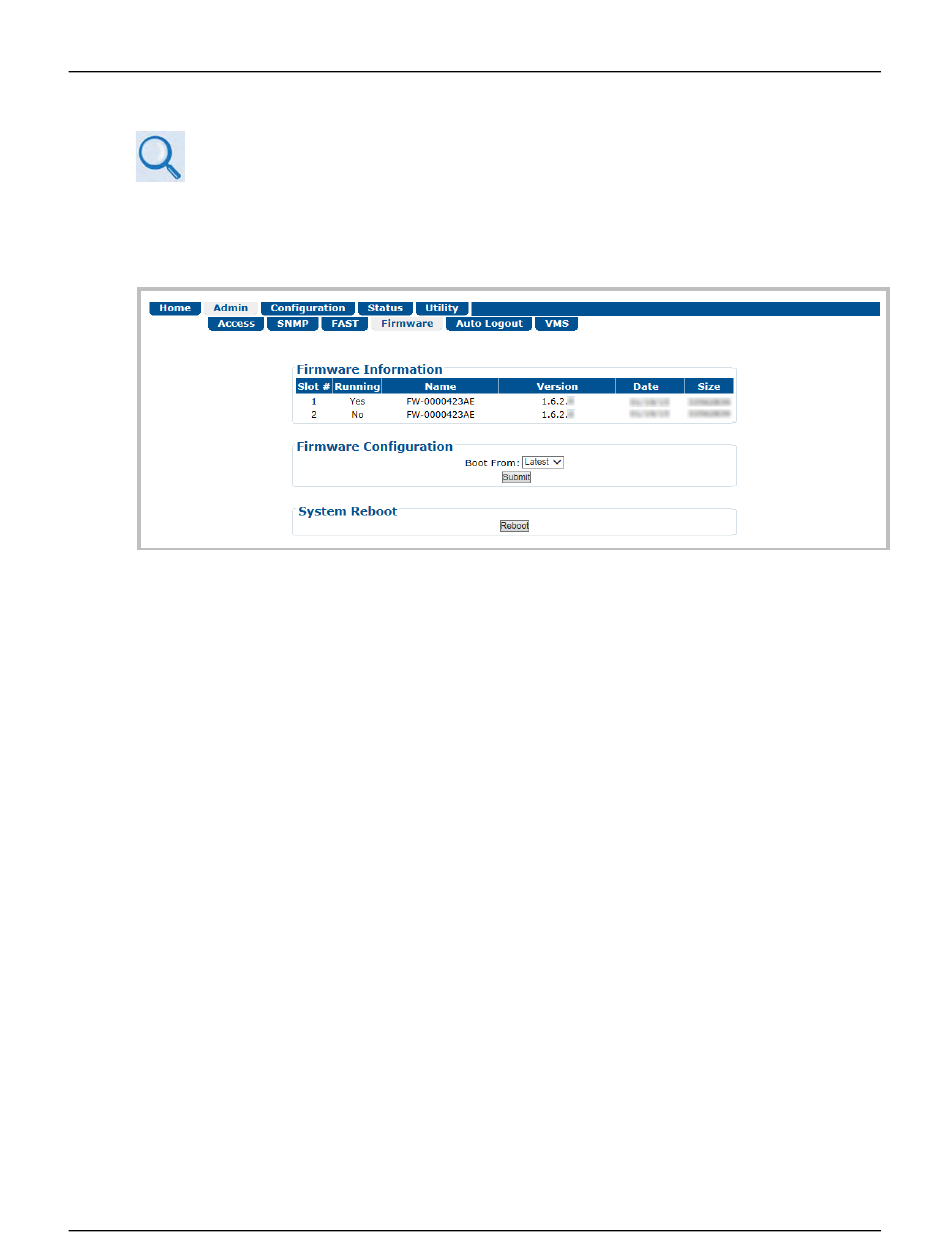

Figure 6-8. Admin | Firmware Page
6–14
MN-CDD880
Revision 2
