CDD-880 Multi Receiver Router
Ethernet-based Remote Product Management
6.3.3.2
Configuration | WAN Pages
Use the nested WAN pages to configure WAN-based operating parameters. Click the Demod,
ACM, or LNB tab to continue.
The LNB page is functional ONLY when this optional product is installed.
6.3.3.2.1
Configuration | WAN | Demod (Demodulator)
The upper range of Data and Symbol Rate selection requires activation of the optional
'RECEIVE SYMBOL RATE' FAST Feature.

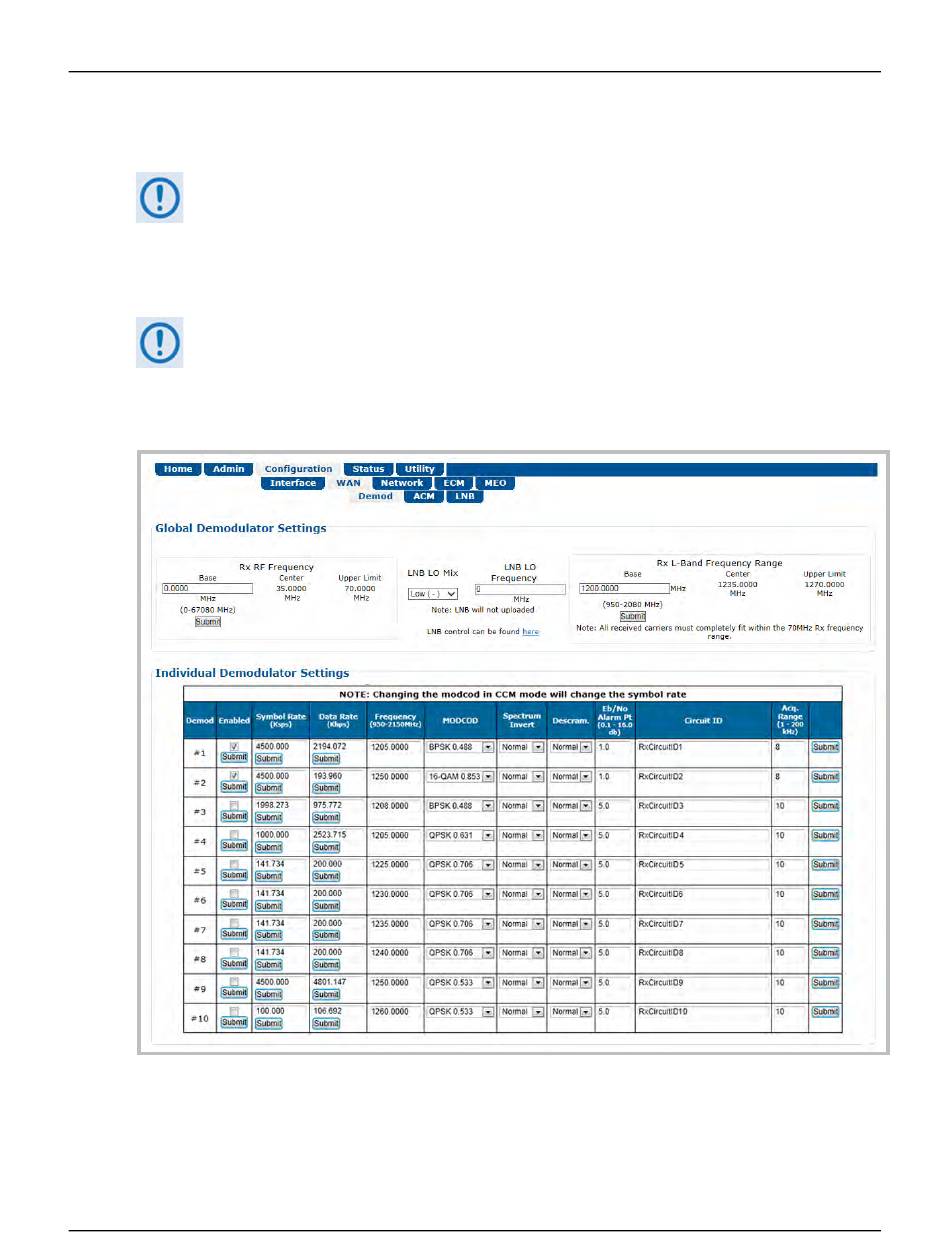

Use this page to configure the CDD-880 Rx demodulator operations. Figure 6-12 shows the page
appearance with the CDD-880 equipped with five dual demodulator cards.
Figure 6-12. Configuration | Demod Page
6–20
MN-CDD880
Revision 2
