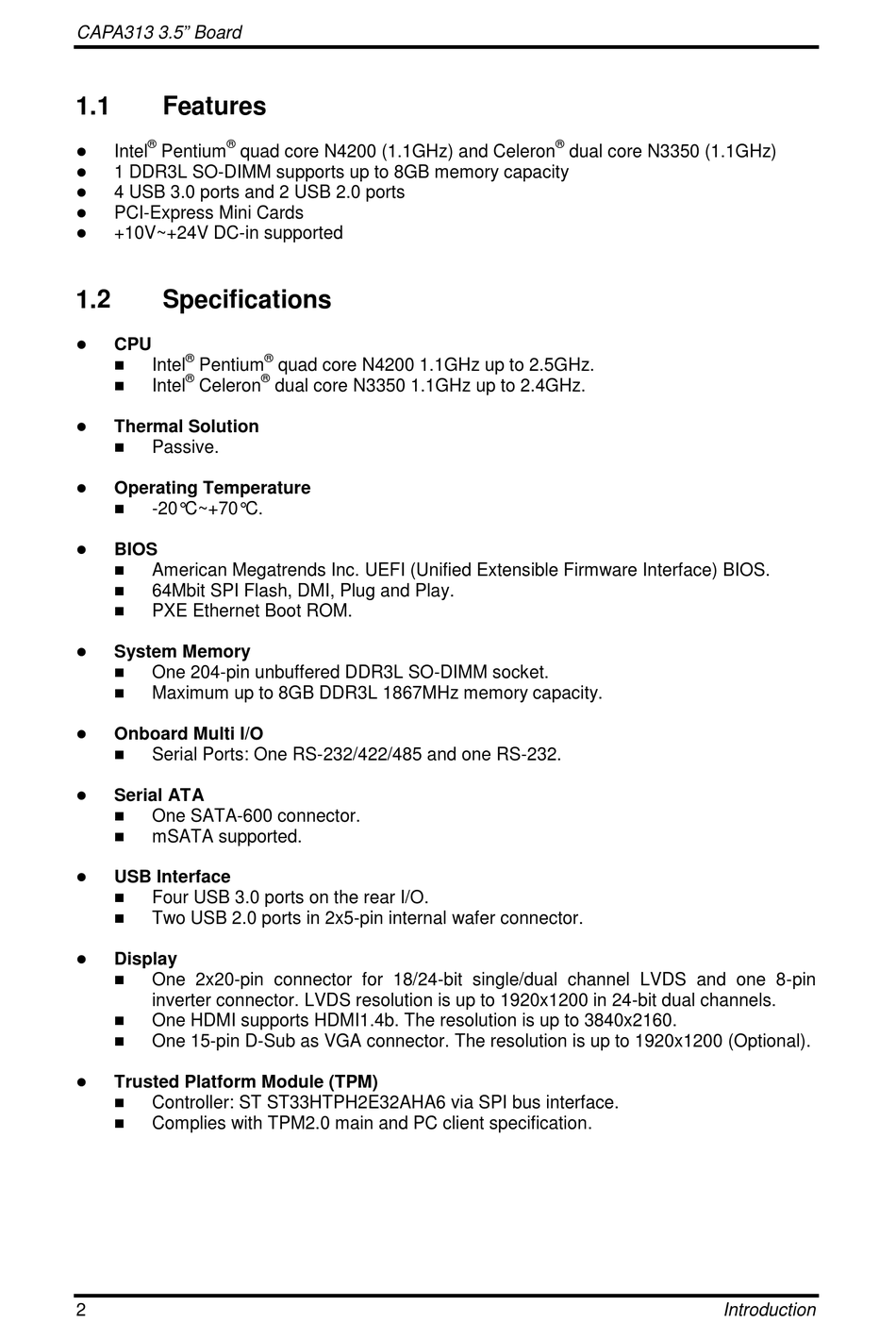

Features; Specifications - AXIOMTEK CAPA313 User Manual

CAPA313 3.5" Board
1.1

Features

® ®
 Intel Pentium quad core N4200 (1.1GHz) and Celeron
 1 DDR3L SO-DIMM supports up to 8GB memory capacity
 4 USB 3.0 ports and 2 USB 2.0 ports
 PCI-Express Mini Cards
 +10V~+24V DC-in supported
1.2

Specifications

 CPU
®

Intel Pentium
®
 Intel Celeron
 Thermal Solution
 Passive.

Operating Temperature
 -20°C~+70°C.
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
 64Mbit SPI Flash, DMI, Plug and Play.

PXE Ethernet Boot ROM.
 System Memory
 One 204-pin unbuffered DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1867MHz memory capacity.
 Onboard Multi I/O

Serial Ports: One RS-232/422/485 and one RS-232.
 Serial ATA
 One SATA-600 connector.
 mSATA supported.
 USB Interface

Four USB 3.0 ports on the rear I/O.
 Two USB 2.0 ports in 2x5-pin internal wafer connector.
 Display
 One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.

One HDMI supports HDMI1.4b. The resolution is up to 3840x2160.

One 15-pin D-Sub as VGA connector. The resolution is up to 1920x1200 (Optional).
 Trusted Platform Module (TPM)
 Controller: ST ST33HTPH2E32AHA6 via SPI bus interface.
 Complies with TPM2.0 main and PC client specification.
2
®
quad core N4200 1.1GHz up to 2.5GHz.
®
dual core N3350 1.1GHz up to 2.4GHz.
®
dual core N3350 (1.1GHz)
Introduction
