CAPA313 3.5" Board

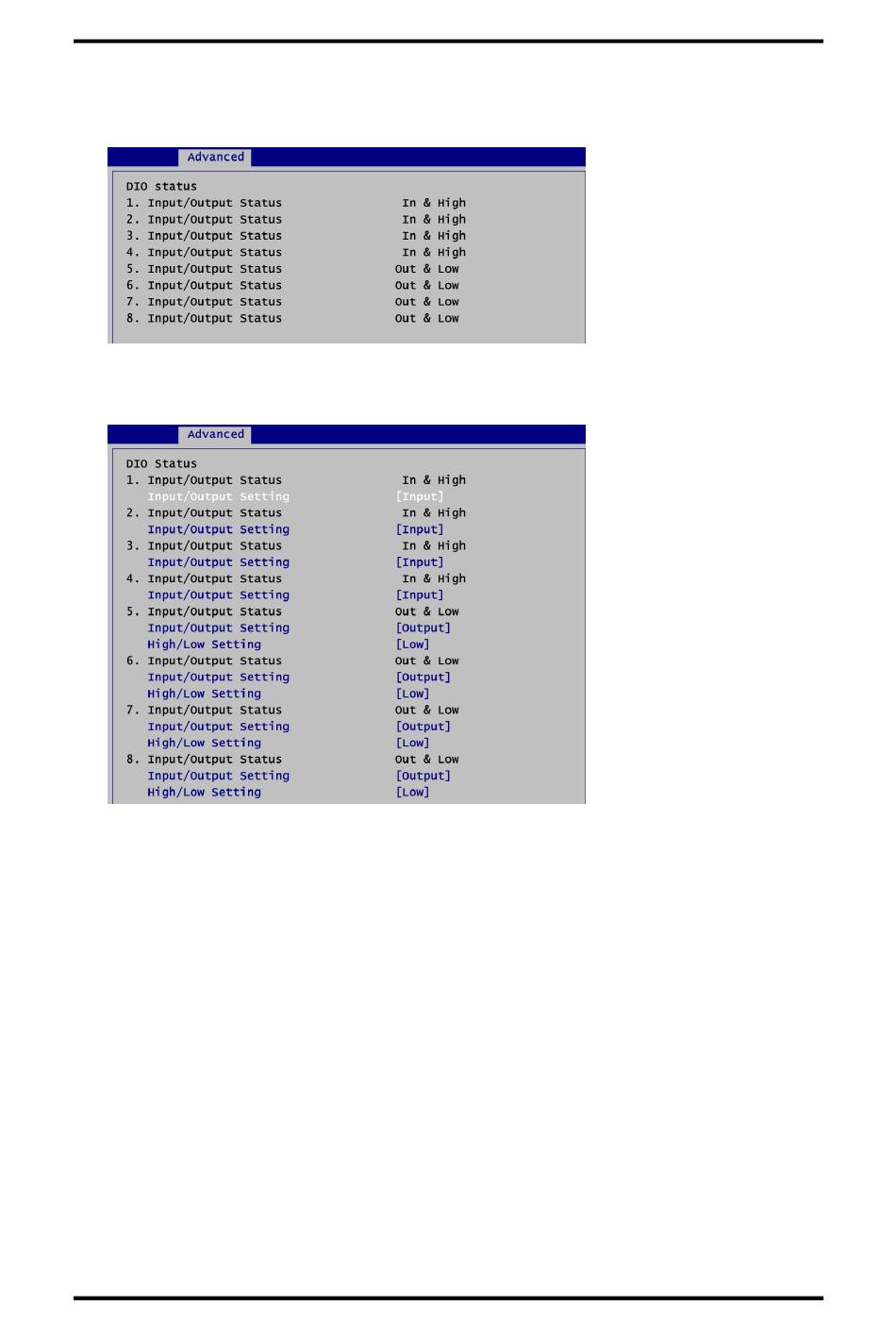

DIO Modification

Enable or disable digital I/O modification. If modification is disabled, the DIO status sub

screen is as follows:

Once it is enabled, you can load manufacture default and access to the DIO status sub

screen to set output or input, see image below.

AMI BIOS Setup Utility
