CAPA313 3.5" Board

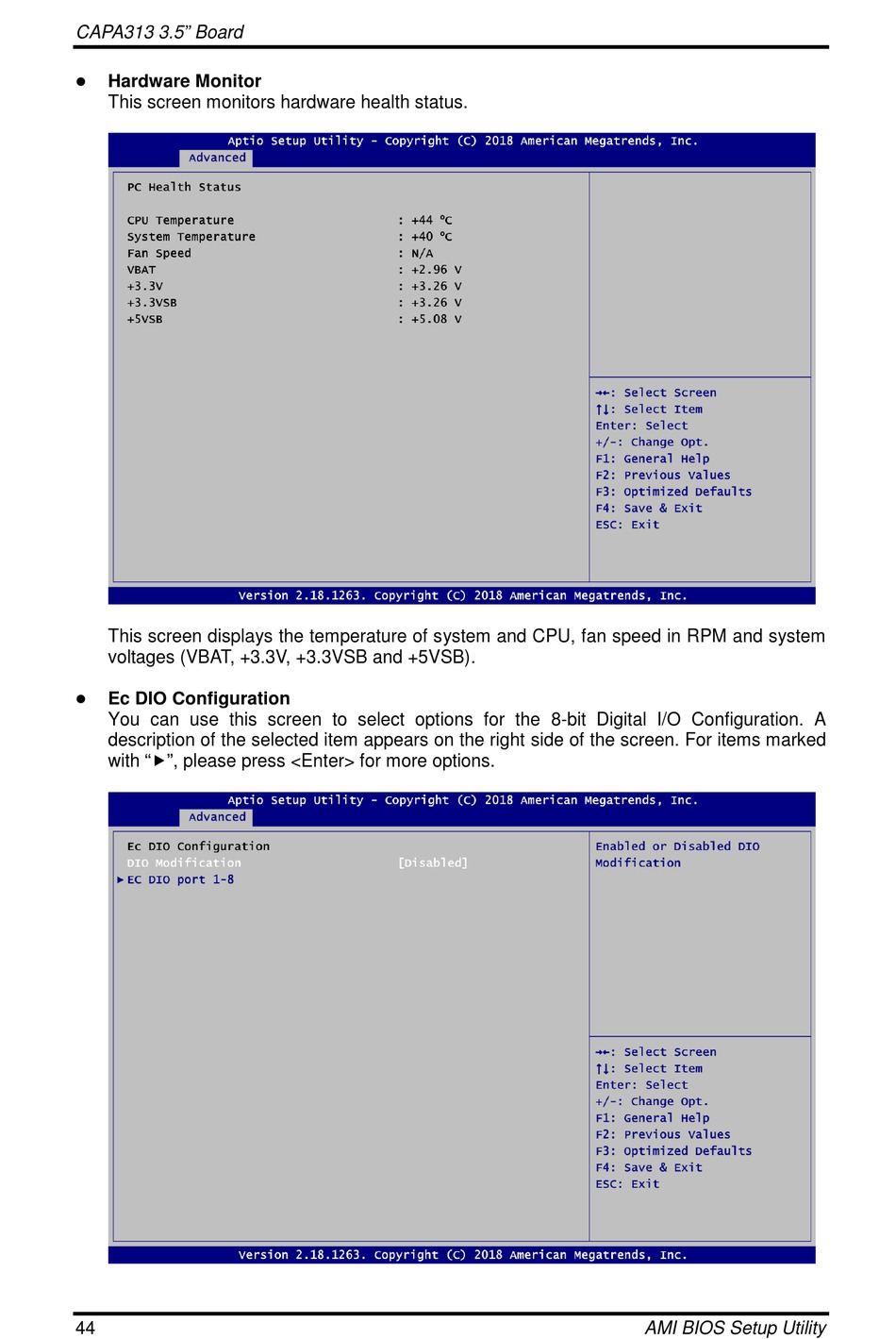

 Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, fan speed in RPM and system
voltages (VBAT, +3.3V, +3.3VSB and +5VSB).
 Ec DIO Configuration
You can use this screen to select options for the 8-bit Digital I/O Configuration. A
description of the selected item appears on the right side of the screen. For items marked
with "", please press <Enter> for more options.
44 AMI BIOS Setup Utility
