CAPA313 3.5" Board
Chapter 1
Introduction
® ® ®

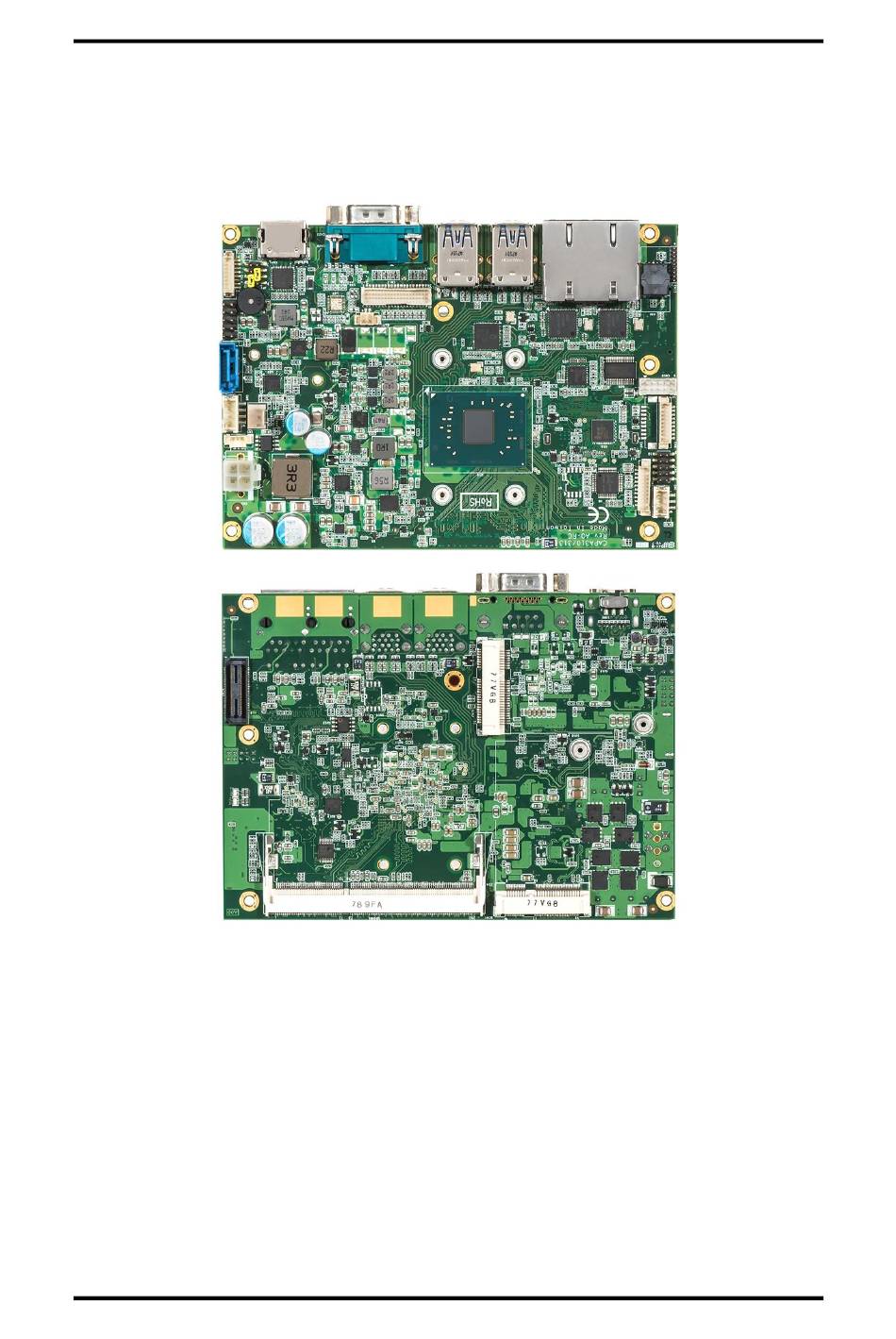

The CAPA313, a 3.5" board, supports Intel Pentium N4200 and Celeron N3350. It delivers
outstanding system performance through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions.
The CAPA313 has one 204-pin unbuffered SO-DIMM socket for single channel DDR3L
1867MHz memory with maximum memory capacity up to 8GB. There are two Gigabit/Fast
Ethernet ports, one SATA port with transfer rate up to 6Gb/s, four USB 3.0 ports, two USB 2.0
ports and built-in HD audio codec that can achieve the best stability and reliability for industrial
applications. Additionally, it provides you with unique embedded features, such as two serial
ports (one RS-232/422/485 and one RS-232) and 3.5" form factor that applies an extensive
array of PC peripherals.
Introduction 1
