CAPA313 3.5" Board
5.

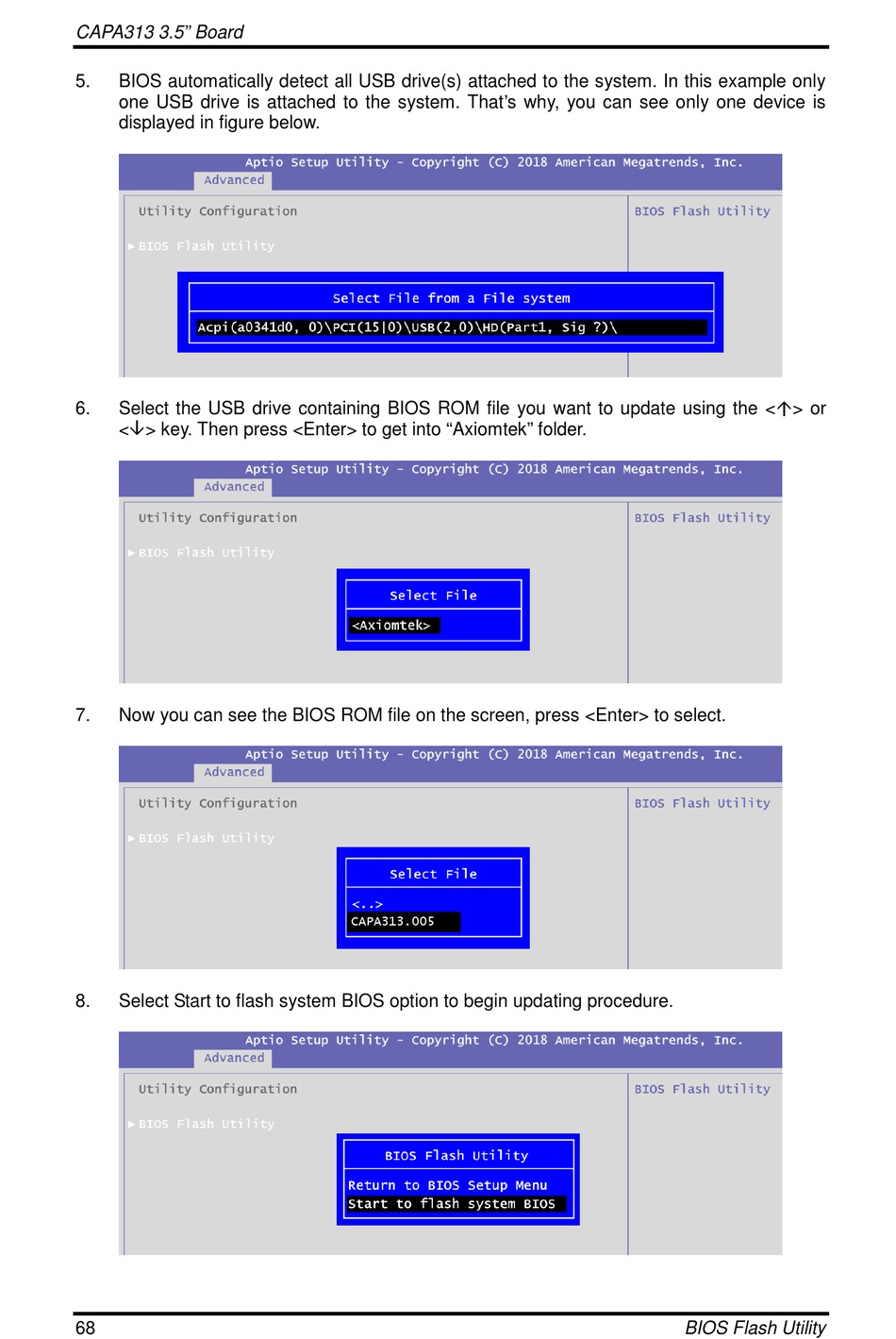

BIOS automatically detect all USB drive(s) attached to the system. In this example only
one USB drive is attached to the system. That's why, you can see only one device is
displayed in figure below.
6.
Select the USB drive containing BIOS ROM file you want to update using the <> or
<> key. Then press <Enter> to get into "Axiomtek" folder.
7.
Now you can see the BIOS ROM file on the screen, press <Enter> to select.
8.
Select Start to flash system BIOS option to begin updating procedure.
68
CAPA313.005
BIOS Flash Utility
