Vari Lite VL600 ACCLAIM CYC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

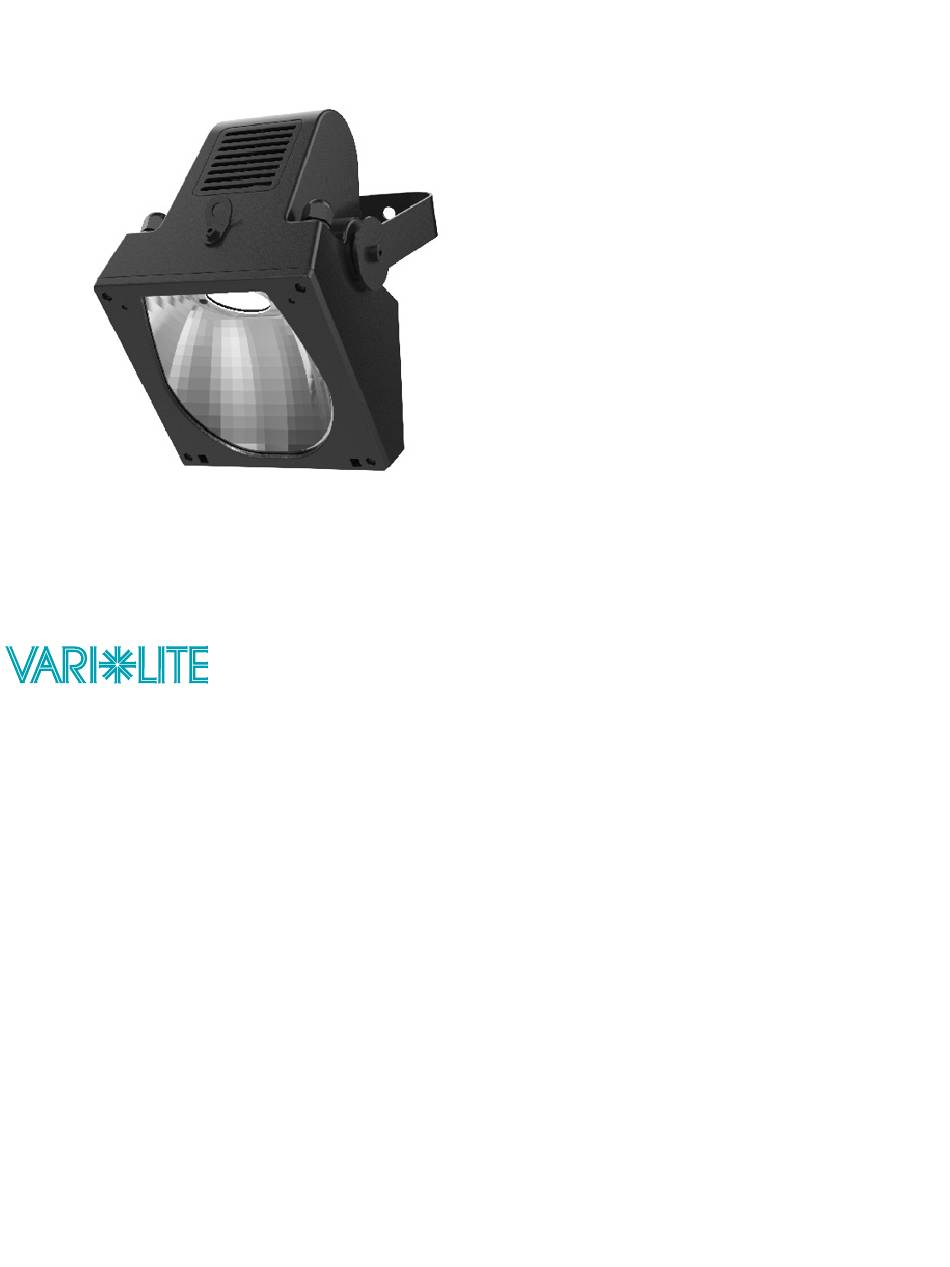

VL600 ACCLAIM CYC
User ManUal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL600 ACCLAIM CYC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vari Lite VL600 ACCLAIM CYC

Summary of Contents for Vari Lite VL600 ACCLAIM CYC

  • Page 1 VL600 ACCLAIM CYC User ManUal...

  • Page 2: Additional Documentation

    VL600 ACCLAIM CYC User MAnUAL INTRODUCTION OUR GOAL We are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer.

  • Page 3: Safety Warnings And Notices

    VL600 ACCLAIM CYC User MAnUAL SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and operation of the fi xture are to be performed by qualifi...
  • Page 4 VL600 ACCLAIM CYC User MAnUAL CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to e ciently focus the light energy from the lumi- naire’s lamp for maximum light output.

  • Page 5: Compliance Notice

    VL600 ACCLAIM CYC User MAnUAL COMPLIANCE NOTICE FCC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.

  • Page 6: How To Obtain Warranty Service

    VL600 ACCLAIM CYC User MAnUAL HOW TO OBTAIN WARRANTY SERVICE A copy of the Limited Warranty card was included in the shipping package for this product. To obtain warranty service, please contact customer service at 1-214-647-7880, or entertainment.service@signify.com and request a Return Material Authorization (RMA) for warranty service. You will need to provide the model and serial number of the item being returned, a description of the problem or failure and the name of the registered user or organization.

  • Page 7: Included Items

    DesCrIPTIOn shadows. The VL600 Acclaim Cyc Luminaire offers a simple spacing system and multiple mounting options, and it may be used for top or bottom lighting with units spaced on 1.2 meter (4ft) from the cyclorama @ 1.4 meter (4.5ft) centers for optimum performance and...

  • Page 8: Installation

    VL600 ACCLAIM CYC User MAnUAL InsTallaTIOn MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. When installing the fixture, always use a safety cable that certified to hold up to 12 times the fixture’s own weight.

  • Page 9: Control Panel

    VL600 ACCLAIM CYC User MAnUAL MenU OPeraTIOn CONTROL PANEL Press the MENU button to select any functions, until the required function is shown in the display. Select the desired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to change the mode. Once the required mode has been selected, press the ENTER button to accept the selection.

  • Page 10: Manual Control

    VL600 ACCLAIM CYC User MAnUAL Address 001~512 DMX Mode 8-bit (default) 16-bit Data Ch 1 - Intensity XXX (Value) Ch 2 - Intensity Fine XXX (Value) ……All functions DMX Fail DMX hold Blackout MANUAL CONTROL 0-255 (Default 0) Green 0-255 (Default 0)

  • Page 11: Manual Menu

    VL600 ACCLAIM CYC User MAnUAL DMX MENU Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 12 VL600 ACCLAIM CYC User MAnUAL menu mode. Reset Defaults To select Reset Defaults, press the ENTER button to confirm, Are You Sure? will show on the display, press the EN- TER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 13: Dmx Mapping

    VL600 ACCLAIM CYC User MAnUAL DMX MaPPInG The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence.

  • Page 14: Rdm Parameter Ids

    VL600 ACCLAIM CYC User MAnUAL rDM ParaMeTer IDs The following tables outline and describe all the RDM parameters IDs associated with the Acclaim LED Cyc luminaire. MODEL ID MANUFACTURER VENDOR ID MODEL DESCRIPTION PRODUCT CATEGORY 0x0314 Vari-lite 0x564C Vl600 aCClaIM CYC 0x0101 W W W .
  • Page 15 VL600 ACCLAIM CYC User MAnUAL ESTA REQUIRED / DMX / UI RDM PARAMETER IDS VALUE COMMENT ALLOWED ALLOWED STANDARD IMPLEMENTED DESCIPTION Category - network Management DIsC_UnIQUe_BranCH 0x0001 DIsC_MUTe 0x0002 DIsC_Un_MUTe 0x0003 PrOXIeD_DeVICes 0x0010 PrOXIeD_DeVICes_COUnT 0x0011 COMMs_sTaTUs 0x0015 Category - status Collection...
  • Page 16 VL600 ACCLAIM CYC User MAnUAL ESTA REQUIRED / DMX / UI RDM PARAMETER IDS VALUE COMMENT ALLOWED ALLOWED STANDARD IMPLEMENTED DESCIPTION sensOr_ValUe Fan Speed and Diagnostics 0x0201 Temperatures reCOrD_sensOrs 0x0202 Category - Dimmer Settings 0x03xx - FUTURE USE Dimmer Curve 0x0343  ...
  • Page 17 VL600 ACCLAIM CYC User MAnUAL ESTA REQUIRED / DMX / UI RDM PARAMETER IDS VALUE COMMENT ALLOWED ALLOWED STANDARD IMPLEMENTED DESCIPTION Value range Display On Display On Time 0x8AA0 depends on Time options Value range leD Dimming LED Dimmer Curve...

  • Page 18: Care And Maintenance

    VL600 ACCLAIM CYC User MAnUAL Appendix A CARE AND MAINTENANCE TROUBLeSHOOTinG Luminaire does not work; light and fan do not turn on. • Check power connection and main fuse. • Measure the mains voltage on the main connector. Not responding to DMX controller.

  • Page 19: Fan Speed And Control

    VL600 ACCLAIM CYC User MAnUAL Appendix B FAN SPEED AND CONTROL AddendUM FAn Speed And COnTROL All Vari-lite luminaires will be governed by the same Fan speed v Noise levels v Maximum power output rules as details below. These noises related to these levels will confi rm to Noise Criteria levels details of which are contained within the document.

  • Page 20: Technical Support

    Signify. Data subject to change. VL600 ACCLAIM CYC USER MANUAL VERSION DATE: MAY 30 2025...
