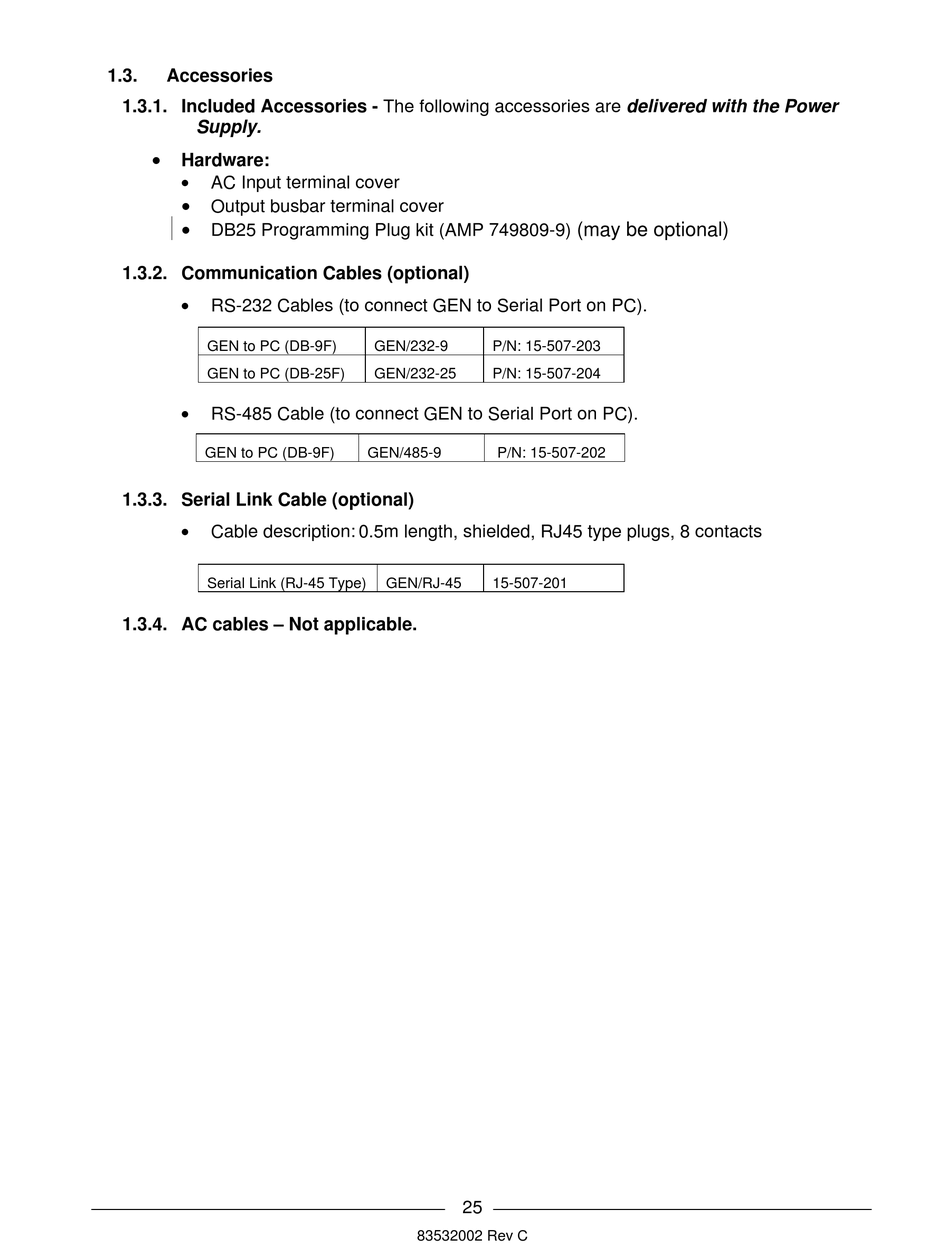

1.3.

Accessories

1.3.1. Included Accessories - The following accessories are delivered with the Power
Supply.

Hardware:

AC Input terminal cover

Output busbar terminal cover

DB25 Programming Plug kit (AMP 749809-9)
1.3.2. Communication Cables (optional)

RS-232 Cables (to connect GEN to Serial Port on PC).
GEN to PC (DB-9F)
GEN to PC (DB-25F)

RS-485 Cable (to connect GEN to Serial Port on PC).
GEN to PC (DB-9F)
1.3.3. Serial Link Cable (optional)

Cable description: 0.5m length, shielded, RJ45 type plugs, 8 contacts
Serial Link (RJ-45 Type)
1.3.4. AC cables – Not applicable.
GEN/232-9 P/N: 15-507-203
GEN/232-25 P/N: 15-507-204
GEN/485-9 P/N: 15-507-202
GEN/RJ-45 15-507-201
25
83532002 Rev C
(may be optional)
