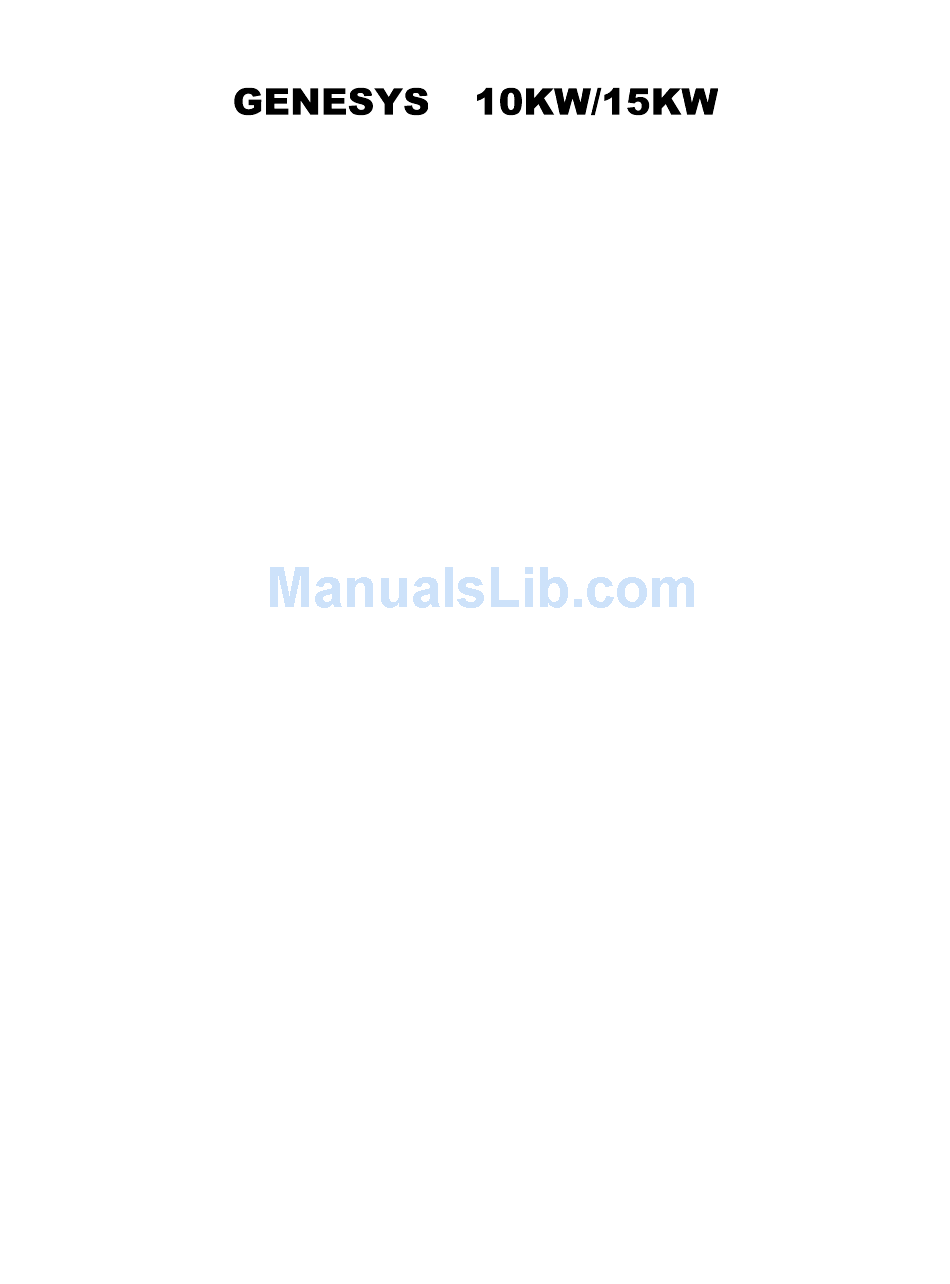

USER MANUAL FOR
Programmable DC Power Supplies
Document: 83532002 Rev C
TDK-Lambda Americas Inc.
High Power Division
405 Essex Road, Neptune, NJ 07753
Tel:
Fax:
www.us.TDK-Lambda.com/HP
TM
(732) 922-9300
(732) 922-9334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genesys and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDK-Lambda Genesys

Summary of Contents for TDK-Lambda Genesys

  • Page 1 USER MANUAL FOR Programmable DC Power Supplies Document: 83532002 Rev C TDK-Lambda Americas Inc. High Power Division 405 Essex Road, Neptune, NJ 07753 Tel: (732) 922-9300 Fax: (732) 922-9334 www.us.TDK-Lambda.com/HP...
  • Page 6 Genesys Manual Supplement For units equipped with the “IEMD” option, for IEEE-488 with Multi-drop, also refer to IEMD manual 83030200 For units equipped with the “LAN” option for Local Area Network with Multi-drop, also refer to LAN manual 83034100...

  • Page 7: Table Of Contents

    Table of Contents WARRANTY ............................4 SAFETY INSTRUCTIONS ........................5 1. GENERAL INFORMATION......................23 1.1. User Manual Content..........................23 1.2. Introduction............................23 1.3. Accessories ............................25 1.4. Model Number Format.......................... 26 2. SPECIFICATIONS ........................27 2.1. Output Rating (Duty Cycle Continuous Duty)..................27 2.2.
  • Page 8 5. LOCAL OPERATION........................54 5.1. Introduction............................54 5.2. Standard Operation ..........................54 5.3. Over Voltage Protection (OVP) ......................55 5.4. Under Voltage Limit (UVL)........................56 5.5. Foldback Protection..........................56 5.6. Output ON/OFF Control........................57 5.7. Output SHUT-OFF (SO) Control via Rear Panel J1 Connector ............57 5.8.
  • Page 9 9. ISOLATED ANALOG PROGRAMMING OPTION................ 95 9.1. Introduction............................95 9.2. Specifications ............................95 9.3. Isolated Programming & Monitoring Connector ................... 96 9.4. Setup and Operating Instructions......................97 10.MAINTENANCE..........................98 10.1. Introduction............................98 10.2. Units Under Warranty ........................... 98 10.3. Periodic Maintenance ........................... 98 10.4.

  • Page 10: Warranty

    QA seal has been removed or altered by anyone other than TDK-Lambda Americas Inc. authorized personnel. TDK-Lambda Americas Inc. does not warrant the buyer’s circuitry or malfunctions of TDK-Lambda Americas Inc.

  • Page 11: Safety Instructions

    Failure to comply with the safety precautions or warnings in this document violates safety standards of design, manufacture and intended use of this equipment and may impair the built- in protections within. TDK-Lambda Americas Inc. shall not be liable for user’s failure to comply with these requirements. INSTALLATION CATEGORY The Genesys power supply series has been evaluated to INSTALLATION CATEGORY II.
  • Page 12 PARTS SUBSTITUTIONS & MODIFICATIONS Parts substitutions and modifications are allowed by authorized TDK-Lambda Americas Inc. service personnel only. For repairs or modifications, the instrument must be returned to an authorized TDK-Lambda Americas Inc. Service facility. SAFETY INSTRUCTIONS ENVIRONMENTAL CONDITIONS The Genesys...
  • Page 13 FCC COMPLIANCE NOTICE: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 14 équipement et peut compromettre les protections incorporées en lui. TDK-Lambda Americas Inc. ne sera pas responsable des conséquences si l'utilisateur ne respecte pas ces consignes.
  • Page 15 Les substitutions et modifications de pièces ne peuvent être effectuées que par les techniciens d'entretien agréés TDK-Lambda Americas Inc. Pour les réparations ou les modifications, l'instrument doit être renvoyé à un centre d'entretien agréé TDK-Lambda Americas Inc. CONDITIONS ENVIRONNEMENTALES L'approbation sécurité des alimentations Genesys s'applique aux conditions opératoires...
  • Page 16 NOTE CONCERNANT LA CONFORMITE FCC : Nota : Cet équipement a été testé et s'est avéré conforme aux limites pour un appareil numérique Classe A selon la part 15 des règles FCC. Ces limites sont conçues pour assurer une protection raisonnable contre les interférences dangereuses lorsque l'équipement est utilisé...
  • Page 17 Warnhinweise aus diesem Handbuch führt zur Verletzung der bestehenden Sicherheitsstandards für Design, Produktion und der zweckbestimmten Verwendung der Anlage und kann die integrierten Schutzvorrichtungen beschädigen. TDK-Lambda Americas Inc. ist nicht haftbar für Schäden, die durch Missachtung dieser Sicherheitsvorschriften entstehen können. INSTALLATIONSKATEGORIE Die Genesys Reihe der Netzgeräte wurde in die INSTALLATIONSKATEGORIE II eingeteilt.
  • Page 18 SPANNUNGSFÜHRENDE TEILE Die Geräteabdeckung darf nicht durch Betriebspersonal entfernt werden. Interne Modifikationen sowie Bauteileaustausch sind nur durch von TDK-Lambda Americas Inc. qualifiziertes Personal erlaubt. Vor dem Austausch von Komponenten muss immer die Versorgungsspannung getrennt werden. Um Personenschäden zu vermeiden, muss vor dem Kontakt mit dem Gerät immer die Stromversorgung unterbrochen, die Stromkreise entladen und externe Spannungsquellen entfernt werden.
  • Page 19 SICHERHEITSVORSCHRIFTEN Das VORSICHTSYMBOL deutet auf eine Gefahr hin. Die Aufmerksamkeit wird auf ein Verfahren gelenkt. Eine Missachtung der korrekten Einhaltung des Verfahrens kann zu Materialschaden führen. Ein VORSICHTSYMBOL darf nicht übergangen werden bis alle angezeigten Umstände vollkommen verstanden und eingehalten werden. FCC EINHALTUNGSVERMERK: Hinweis: Das Gerät wurde geprüft und erfüllt die Grenzwerte für ein digitales Gerät der Klasse A gemäß...
  • Page 20 TDK-Lambda Americas Inc. non si assume alcuna responsabilità per il mancato rispetto di questi requisiti da parte dell'utente. CATEGORIA DI INSTALLAZIONE La serie di alimentatori Genesys™ è stata valutata e risulta conforme alla CATEGORIA DI INSTALLAZIONE II. Categoria di installazione (categoria di sovratensione) II: livello locale, elettrodomestici, apparecchiature portatili ecc.
  • Page 21 Lambda Americas Inc. Per riparazioni o modifiche, restituire lo strumento al centro assistenza di TDK-Lambda Americas Inc. CONDIZIONI AMBIENTALI L'approvazione della sicurezza della serie di alimentatori Genesys™ è valida in presenza delle condizioni d'uso seguenti: *Uso in interni *Temperatura ambiente: 0ºC - 50ºC *Umidità...
  • Page 22 NORME DI SICUREZZA AVVISO DI CONFORMITÀ FCC: NB: Questa apparecchiatura è stata testata ed è risultata conforme ai limiti per i dispositivi digitali di Classe A, ai sensi della parte 15 dei Regolamenti FCC. Tali limiti sono formulati per offrire ragionevole protezione dalle interferenze pericolose quando l'apparecchiatura viene azionata in ambienti commerciali.
  • Page 23 Não ligue a saída positiva à terra quando utilizar as portas RS-232/RS-485, LAN ou IEEE. FUSÍVEIS Os fusíveis apenas devem ser substituídos por pessoal de assistência autorizado da TDK-Lambda Americas Inc. Para obter uma protecção contínua contra o risco de incêndios, substitua sempre os fusíveis por outros do mesmo tipo e classificação.
  • Page 24 MODIFICAÇÕES E SUBSTITUIÇÕES DE PEÇAS As modificações e substituições de peças apenas são permitidas quando realizadas pelo pessoal de assistência da TDK-Lambda Americas Inc. Para a realização de reparações ou modificações, é necessário devolver o instrumento a uma unidade de serviço autorizada da TDK-Lambda Americas Inc.
  • Page 25 INSTRUÇÕES DE SEGURANÇA DECLARAÇÃO DE CONFORMIDADE FCC: Nota: Este equipamento foi testado e considerado estar dentro dos limites necessários para um dispositivo digital da Classe A, em conformidade com a parte 15 das normas da FCC. Estes limites estão concebidos de forma a fornecer uma protecção razoável contra interferências nocivas quando o equipamento é...
  • Page 26 No conecte la Salida Positiva a tierra si va a utilizar los puertos RS-232/RS-485, LAN o IEEE. FUSIBLES Los fusibles sólo pueden ser cambiados por el personal de servicio autorizado de TDK-Lambda Americas Inc. Para una protección permanente contra el peligro de incendios, utilice únicamente fusibles del mismo tipo y de la misma potencia nominal.
  • Page 27 El personal operativo no debe retirar la cubierta del aparato. Los ajustes internos o el reemplazo de componentes sólo pueden ser realizados por el personal cualificado de TDK-Lambda Americas Inc. Desenchufe siempre el cable de alimentación antes de reemplazar los componentes. Para evitar lesiones, desenchufe siempre el cable de alimentación, descargue los circuitos y...
  • Page 28 INSTRUCCIONES DE SEGURIDAD DECLARACIÓN DE CONFORMIDAD CON LA FCC: Nota: Este equipo ha sido ensayado y cumple con los límites establecidos para los dispositivos digitales de Clase A, de conformidad con lo dispuesto en el Apartado 15 de la normativa de la FCC. Estos límites han sido diseñados para proporcionar una protección razonable contra interferencias perjudiciales cuando el equipo se utilice en entornos comerciales.

  • Page 29: General Information

    1.1. User Manual Content This User’s Manual contains the operating instructions, installation instructions and specifications of the Genesys 10kW and 15kW Power Supply series. The instructions refer to the standard power supplies, including the built-in RS-232/RS-485 serial communication. For information related to operation with the optional IEEE programming interface, refer to User’s Manual for Power Supply IEEE/IEMD Programming Interface.
  • Page 30 1.2.8. Cooling and Mechanical Construction The Genesys Power Supply Series is cooled by internal fans. During installation, care must be taken to allow free airflow into the Power Supply via the front panel and out of the Power Supply via the rear panel.

  • Page 31: Accessories

    1.3. Accessories 1.3.1. Included Accessories - The following accessories are delivered with the Power Supply.  Hardware:  AC Input terminal cover  Output busbar terminal cover  (may be optional) DB25 Programming Plug kit (AMP 749809-9) 1.3.2. Communication Cables (optional) ...

  • Page 32: Model Number Format

    1.4. Model Number Format The model numbering system for Genesys Power Supply Series includes symbols for features and options. They are separated by dashes. The following chart explains the model number for the GEN Power Supply Family. GENXXXX—XXXX—XXXXX—XXXXX—XXXX DC OUTPUT...

  • Page 33: Specifications

    2. SPECIFICATIONS All specifications are subject to change without notice. Contact factory for specific model availability. 2.1. Output Rating (Duty Cycle Continuous Duty). 2.1.1. Standard Models – 10kW 1. Rated Output voltage 10 12.5 100 125 150 200 250 300 400 500 600 2.

  • Page 34: Protective Functions

    2.4. Protective Functions 10 12.5 100 125 150 200 250 300 400 500 600 0  100% 1. OCP 2. OCP Type Constant current 3. Knee point protection None, No damage at knee point operation 4. Short circuit protection 5. Foldback protection Output shut down when power supply changes from CV to CC mode, manual reset by front panel OUT button or Digital Communication, user-selectable.

  • Page 35: Remote Analog Control And Signals

    2.6. Remote Analog Control And Signals 1. Vout voltage programming 0100%, 05V or 010V, user selectable. Accuracy & Linearity +/-1% of Vo(rated). 2. Iout voltage programming 0100%, 05V or 010V, user selectable. Accuracy & Linearity +/-1% of Io(rated). 3. Vout resistor programming 0100%, 05/10kohm full scale, user selectable.

  • Page 36: Front Panel

    2.7. Front Panel 1. Control functions Vout/ Iout manual adjust by separate encoders (coarse and fine adjustment). OVP/UVL manual adjust by Voltage Adjust encoder. Address selection by Voltage adjust encoder. Range = 0 to 30 Go to Local control Output On/Off AC On/Off Foldback control (CV to CC) RS-232/RS-485, IEEE488.2, LAN selection by rear panel DIP-switch...

  • Page 37: Digitial Programming And Readback

    2.9. Digitial Programming And Readback 1. Vout programming accuracy +/-0.5% of rated Output voltage 2. Iout programming accuracy +/-0.5% of rated Output current for units with Io <187.5; +/-0.7% of rated output current for Io ≥187.5 3. Vout programming resolution 0.02% of full scale 4.

  • Page 38: Emc

    2.12. EMC CE Mark 1. ESD EN61000-4-2 (IEC 1000-4-2): Air-disch. +/-8kV, contact disch. +/-4kV 2. Fast transients EN61000-4-4 (IEC 1000-4-3): +/-2kV: AC Power, 2kV: DC Output 3. Surge immunity EN61000-4-5 (IEC 1000-4-5): 1kV line-to-line, 2kV line-to-ground 4. Conducted immunity EN61000-4-6 (IEC 1000-4-6): 10Vrms 5.

  • Page 39: J1 Connector

    2.14. J1 Connector J1-1 ENA_IN Enable/Disable Dry Contact with J1-14 (ENA_OUT) J1-2 IF_COM Isolated Interface Common. Return for SO, PS_OK, and optional IEEE interface. J1-3 IF_COM Isolated Interface Common. Return for SO, PS_OK, and optional IEEE interface. J1-4 J1-5 J1-6 J1-7 J1-8 LOC/REM...

  • Page 40: Installation

    3.1. General This Chapter contains instructions for initial inspection, preparation for use and repackaging for shipment. Connection to the PC, setting the communication port and linking Genesys power supplies are described in Chapter 8. NOTE Genesys power supplies generate magnetic fields, which might affect the operation of other instruments.

  • Page 41: Rack Mounting

    3.4. Rack Mounting The Genesys Power Supply Series is designed to fit in a standard 19” equipment rack. 3.4.1. To Install the Power Supply in a Rack: 3.4.1.1. Use the front panel rack-mount brackets to install the Power Supply in the rack.
  • Page 42 WARNING Some components inside the Power Supply are at AC/DC voltage even when the AC Input On/Off switch is in the “Off” position. To avoid electric shock hazard, disconnect the AC input and load (DC Output) and wait 15 minutes before removing any cover. The Power Supply AC On/Off switch is not the main disconnect device and does not completely disconnect all internal circuits from the AC power source.

  • Page 43: Turn-On Checkout Procedure

    The Protective Earth Ground must be connected before applying AC Line Power to the Power Supply. 3.8. Turn-On Checkout Procedure 3.8.1. General The following procedure ensures that the Power Supply is operational and may be used as a basic incoming inspection check. Refer to Fig. 4-1 and Fig. 4-2 for the location of the controls indicated in the procedure.
  • Page 44 c) Press the front panel AC ON/OFF switch to the On position. d) Turn On the output by pressing the OUT pushbutton (the front panel OUT LED should illuminate). e) Observe the Power Supply CURRENT display and rotate the CURRENT encoder. Ensure that the Output current varies while the CURRENT encoder is rotated.

  • Page 45: Connecting The Load

    a) Connect a variable load across the unit output that ranges from 5-15% of rated Output current. Set the load current to 5% of rated Output current. b) Ensure that the Output voltage is set to approximately 10% of the unit Output voltage rating.
  • Page 46 these requirements could cause substantial voltage-drop power losses, terminal over- heating, and insulation degradation. The Output styles vary depending on the Output voltage range:  Platform A & B (Output Voltage Range: 7.5V-80V &100V-300V). – Vertical Bus Bar Configuration – 0.422 inch mounting hole o 7.5V-25V models have two mounting holes o 30V-300V models have one mounting hole...
  • Page 47 Twisting the load wires reduces the parasitic inductance of the cable, which could produce high frequency voltage spikes at the load and the Output of the Power Supply (because of current variation in the load itself). The impedance introduced between the Power Supply output and the load could make the ripple and noise at the load worse than the noise at the power supply rear panel output.
  • Page 48 Fig. 3-3: Single load connection, local sensing 3.9.7. Connecting Single Loads, Remote Sensing Fig.3-4 shows the recommended remote sensing connection for single loads. Remote sensing is used when, in Constant-Voltage mode, the load regulation is important at the load terminals. Use twisted or shielded wires to minimize any noise pick-up. If shielded wires are used, the shield should be connected to the ground at one point, either at the Power Supply chassis or the load ground.

  • Page 49: Local And Remote Sensing

    3.9.9. Multiple Load Connection with Distribution Terminals If remotely located output distribution terminals are used, the Power Supply output terminals should be connected to the distribution terminals by a pair of twisted and/or shielded wires. Each load should be separately connected to the remote distribution terminals (see Fig.3-6).
  • Page 50 3.10.1. Sense Wiring WARNING There is a potential shock hazard at the sense connector. Local sense and remote sense wires should have a minimum insulation rating equivalent or greater than the maximum Output voltage of the Power Supply. Ensure that the connections at the load end are shielded to prevent accidental contact with hazardous voltages.

  • Page 51: Repackaging For Shipment

    Tightening torque: 0.22-0.25Nm (1.95-2.21Lb-Inch.) 3.11. Repackaging for Shipment To ensure safe transportation of the instrument, contact the TDK-Lambda Americas Inc. Sales or Service facility near you for Return Authorization and shipping information. Please attach a tag to the power supply describing the problem and specifying the owner, model number and serial number of the Power Supply.

  • Page 52: Front And Rear Panel Controls And Connectors

    Section 4.3: Rear Panel Connections and Controls. 4.2. Front Panel Controls and Indicators See Figure 4-1 to review the controls, indicators and meters located on the Power Supply front panel. GENESYS POWER SUPPLY VOLTAGE CU RR ENT DC VOLTS DC AMPS...
  • Page 53 Table 4-1: Front Panel Controls and Indicators Number Control/Indicator Description Section 5.2.1 VOLTAGE control High resolution rotary encoder for adjusting the Output voltage. Also 5.3.1 adjusts the OVP/UVL levels and selects the Address 5.4.1 8.2.2 VOLTAGE indicator Green LED, lights for Constant-Voltage mode operation. VOLTAGE display 4 digit, 7-segment LED display.

  • Page 54: Rear Panel Connections And Controls

    Table 4-1: Front Panel Controls and Indicators (Cont.) Number Control/Indicator Description Section OVP/UVL button Over Voltage Protection and Under Voltage limit setting. -Press once to set OVP using the VOLTAGE encoder (the current display shows “OUP”) -Press again to set the UVL using the VOLTAGE encoder (the current display shows “UUL”).
  • Page 55 10kW Platform A Output Range: 7.5V-25V Safety (PE) GND must be 10kW/15kW Platform A & B Output Range: 30V-300V connected. Safety (PE) GND must be connected. 10kW/15kW Platform C Output Range: 400V-600V Safety (PE) GND must be connected. Figure 4-2: Rear Panel Connections and Switches 83532002 Rev C...
  • Page 56 Table 4-2: Rear Panel Connections and Controls Section Number Item Description AC input M6x10mm Stud terminal suitable for ring lugs. DC output Bus-bars (7.5V < Vout < 300V models). M6x10mm threaded-stud terminals (300V < Vout < 600V models). 3.9.1 Remote-In RJ-45 type connector, use for connecting power supplies to RS-232 connector or RS-485 port of computer for remote control purposes.

  • Page 57: Rear Panel Sw1 Setup Switch

    4.4. Rear Panel SW1 Setup Switch The SW1 Setup switch (see Fig.4-3) is a 9-position DIP-switch that allows the user to choose the following: – Internal or remote programming of Output voltage and Output current. – Remote voltage or resistive programming of Output voltage and Output current. –...

  • Page 58: Rear Panel J1 Programming And Monitoring Connector

    4.4.2. Resetting the SW1 switch Before making any changes to the SW1 switch setting, disable the Power Supply output by pressing the front panel OUT button. Ensure that the Output voltage falls to zero and the OUT LED is Off. Then use any small flat-bladed screwdriver to change the SW1 switch setting.
  • Page 59 Table 4-4: J1 Connector Terminals and Functions J1 contact Signal name Function Section J1-1 ENA_IN Enable/Disable the Power Supply output by dry-contact (short/open) with ENA_OUT. J1-2 IF_COM Isolated Interface Common. Return for the SO control, PS_OK signal J1-3 and for the optional IEEE interface. 5.10 J1-47 No Connection...

  • Page 60: Local Operation

    5. LOCAL OPERATION 5.1. Introduction This Chapter describes the operating modes that are not involved in programming and monitoring the Power Supply via its serial communication port (RS-232/RS-485) or by Remote Analog signals. Ensure that the REM/LOC LED on the front panel is Off, indicating Local mode.

  • Page 61: Over Voltage Protection (Ovp)

    5.2.2. Constant Current Mode a) In Constant-Current mode, the Power Supply regulates the Output current at the selected value, while the voltage varies with the load requirement. b) While the Power Supply is operating in Constant-Current mode, the CURRENT LED on the front panel is illuminated. c) Adjustment of the Output current can be made when the power supply output is enabled (Output On) or disabled (Output Off).

  • Page 62: Under Voltage Limit (Uvl)

    5.3.2. Activated OVP Protection Indications When the OVP is activated the Power Supply output shuts down, the VOLTAGE display shows “OUP” and the ALARM LED blinks. 5.3.3. Resetting the OVP Circuit To reset the OVP circuit after it activates: a) Reduce the Power Supply Output voltage setting below the OVP set point. b) Ensure that the load and the sense wiring are connected properly.

  • Page 63: Output On/Off Control

    5.5.2. Resetting Activated Foldback Protection There are four methods to reset an activated Foldback protection. a) Press the OUT button. The Power Supply output is enabled and the Output voltage and Output current will return to their last settings. In this method, the Foldback protection remains armed;...

  • Page 64: Enable/Disable Control Via Rear Panel J1 Connector

    Table 5-1: SO Logic Selection 5.8. Enable/Disable Control via Rear Panel J1 Connector J1-1 and J1-14 (Fig.4-4) serve as the Output Enable/Disable terminals by switch or relay. This function is enabled or disabled by SW1-9. Refer to Table 5-2 for the Enable/Disable function and SW1 settings.

  • Page 65: Safe Start And Auto-Restart Modes

    5.11. Safe Start and Auto-Restart Modes When turning on the Power Supply, it can start to its last setting of Output voltage and Output Current limit with the output enabled (Auto-Restart mode) or start with the output disabled (Safe-Start mode). Press and hold the OUT button to select between Safe-Start and Auto-Restart modes.

  • Page 66: Over Temperature Protection (Otp)

    5.13. Over Temperature Protection (OTP) The OTP circuit shuts down the Power Supply before any internal components can exceed their safe internal operating temperature. When an OTP shutdown occurs, the display shows “OTP” and the ALARM LED blinks. Resetting the OTP circuit can be automatic (non-latched) or manual (latched) depending on the Safe-Start or Auto-Restart mode.

  • Page 67: Series And Parallel Operation

    6. SERIES AND PARALLEL OPERATION Users may connect the outputs of Genesys™ Power Supplies together to produce: ▬ Voltages greater than any one supply rating (series connection). ▬ Plus and minus polarity (series connection). ▬ More current than any one supply rating (parallel connection).
  • Page 68 POWER POWER SUPPLY SUPPLY LOAD LOAD (*) Diodes are POWER POWER user supplied. SUPPLY SUPPLY Fig. 6-1: Series connection, local sensing Fig. 6-2: Series connection, remote sensing Remote programming in series operation for increased Output voltage: Programming by external voltage: The Remote Analog programming circuits of this Power Supply are referenced to the negative local sense (-LS) potential.
  • Page 69 6.1.2. Series Connection for Positive and Negative Output Voltage In this mode, two units are configured as a positive and negative output. Set the Current limit of each power supply to the maximum that the load can handle without damage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start-up or in case one of the units shuts down.

  • Page 70: Parallel Operation (Single-Wire/Two-Wire Method)

    6.2. Parallel Operation (Single-Wire/Two-Wire Method) Up to four units of the SAME VOLTAGE and CURRENT RATING can be connected in parallel to provide up to four times the Output current capability of one power supply. One of the units operates as a Master and the remaining units are Slaves. The Slave units are Remote Analog programmed by the Master unit.
  • Page 71 2. Setting up the Slave Units Two-Wire method 1. The Output Voltage of the Slave units should be programmed 2-5% higher than the Output Voltage of the Master unit to prevent interference with the Master unit’s control. The Output Current setting of each Slave unit is programmed by the Master unit to the desired load current divided by the number of parallel units.
  • Page 72 3. Daisy-Chain Connection for Shut-Off This set up and connections are optional but are strongly recommended. It will shut down all power supplies when a fault condition occurs in any single power supply (see Figure 6-6).  Switch SW1-5 should be in its DOWN position for all power supplies. ...
  • Page 73 6. Connection to the Load Two-Wire Method In parallel operation, power supplies can be connected for local or remote sensing. Refer to Fig. 6-7 and 6-8 for typical connections of parallel power supplies. The figures show the connections for two (2) units, however the same connection method applies for up to four (4) units.
  • Page 74  Connect J1-25 (IPGM) of the Master unit to J1-10 (P) of all Slave units.  Connect J1-12 (COM) of the Master unit to J1-23 (IPGM_RTN) of all Slave units. Single-Wire Method  Set SW1-2 to the DOWN position for the Master unit and UP for all Slave units.
  • Page 75 CURRENT Display Operating Mode Single supply (default) Master supply with 1 Slave supply Master supply with 2 Slave supplies Master supply with 3 Slave supplies Slave supply Table 6-1: Setting Mode of Operation (Advanced Parallel Mode) 4. Master and Slave Units Default Operation a) When a unit is programmed to Slave mode, it enters the Remote mode with Local Lockout.
  • Page 76  Programmed Voltage to zero.  Programmed Current to zero.  UVL to zero volts  OVP to its maximum value  AST OFF  OUT OFF  Foldback Protection OFF  Locked Front Panel NOTE With local sensing it is important to minimize the wire length and resistance. Also, the positive and negative wire resistance should be as close as possible to each other to achieve current balance between the power supplies.
  • Page 77 Figure 6-9: Parallel Connection with Local Sensing (Single-Wire Method) Figure 6-10: Parallel Connection with Remote Sensing (Single-Wire Method) 83532002 Rev C...

  • Page 78: Remote And Analog Programming

    7. REMOTE AND ANALOG PROGRAMMING 7.1. Introduction The rear panel connector J1 allows the user to program the power supply Output voltage and Output current limit with an analog device. J1 also provides monitoring signals for Output voltage and Output current. The programming range and monitoring signals range can be selected between 0-5V or 0-10V using the setup switch SW1.

  • Page 79: Local/Remote Analog Indication

    7.3. Local/Remote Analog Indication J1-21 (Fig. 4-4) is an open collector output that indicates if the Power Supply is in Local mode or in Remote Analog mode. To use this output, connect a pull-up resistor to a voltage source of 30VDC maximum. Choose the pull-up resistor so that the sink current will be less than 5mA when the output is in the low state.
  • Page 80 Output Voltage programming Current limit programming SW1-3 setting VPGM (J1-9) IPGM (J1-10) 0-10V 0-10V DOWN 0-5V 0-5V Table 7-3: SW1-3 Setting and Programming Range (Remote Voltage PGM) J1 connector, rear panel view OUTPUT OUTPUT CURRENT PROGRAMMING PROGRAMMING Fig. 7-1: Remote voltage programming connection NOTE Use a shielded cable (refer to Section 4.4) 83532002 Rev C...

  • Page 81: Resistive Programming Of Output Voltage And Current Limit

    7.5. Resistive Programming of Output Voltage and Current Limit For Remote Resistive programming, internal current sources, for Output voltage and/or Output current control, supply 1mA of current through external programming resistors connected between J1-9, -22 and J1-10, -23. The voltage across the programming resistors is used as a programming voltage for the Power Supply.

  • Page 82: Remote Monitoring Of Output Voltage And Current

    J1 connector, rear panel view OUTPUT CURRENT OUTPUT VOLTAGE PROGRAMMING PROGRAMMING PROGRAMMING PROGRAMMING RESISTOR RESISTOR OPTIONAL SETS OPTIONAL SETS LOWER LIMIT LOWER LIMIT OPTIONAL SETS OPTIONAL SETS UPPER LIMIT UPPER LIMIT Fig.6-2: Remote resistive programming Fig 7-2: Remote Resistive programming 7.6.

  • Page 83: Rs-485 Remote Control

    8. RS-232 & RS-485 REMOTE CONTROL 8.1. Introduction This Chapter describes the operation of the Genesys 10kW and 15kW power supplies via the serial communication port. Details of the initial set-up, operation via RS-232 or RS-485, the command set and the communication protocol are described in this Chapter.

  • Page 84: Rear Panel Rs-232/Rs-485 Connector

    8.2.5. Setting the Unit into Remote or Local Mode The unit will be put into Remote mode only via serial communication command. Commands that will put the unit into Remote mode are: PV n RMT n OUT n PC n (for values of “n”, see Tables 7-4, 7-5 and 7-6) There are two Remote modes: a) Remote: In this mode, return to Local can be made by the front panel REM/LOC...

  • Page 85: Connecting Power Supplies To The Rs-232 Or Rs-485 Bus

    8.4. Connecting Power Supplies to the RS-232 or RS-485 Bus 8.4.1. Single Power Supply a) Select the desired interface, RS-232 or RS-485, using the rear panel setup switch SW1-6 (Section 4.3).  SW1-6 DOWN: RS-232  SW1-6 UP: RS-485 b) Connect the rear panel J3-IN connector to the controller RS-232 or RS-485 Digital communication port using a suitable shielded cable.

  • Page 86: Communication Interface Protocol

    8.4.2. Multi Power Supply Connection to RS-232 or RS-485 Bus Up to 31 units (0 - 30) can be connected to the the RS-232 or RS-485 Digital communication bus. The first unit connects to the controller via RS-232 or RS-485 (J3-IN) and the other units are connected with the RS-485 bus.

  • Page 87: Error Messages

    8.5.5. Checksum The user may add a checksum (optional) to the end of the command. The checksum is “$” followed by two hex characters. If a command or a query has a checksum, the response will also have a checksum. There is no CR between the command string and the “$”...

  • Page 88: Command Set Description

    8.7.4. ID Control Commands Command Description IDN? Returns the power supply model identification as an ASCII string: TDK-Lambda, GENX-Y REV? Returns the software version as an ASCII string. Returns the unit serial number. Up to 12 characters. DATE? Returns date of last test. Date format: yyyy/mm/dd...
  • Page 89 8.7.5. Output Control Commands Command Description Sets the Output voltage value in Volts. The range of voltage value is described in Table 8- PV n 6. The maximum number of characters is 12. See the following examples for PV n format: PV 12, PV 012, PV 12.0, PV 012.00, etc…...
  • Page 90 Command Description Returns the setting “n” where “n” is the exact string in the user’s “UVL n”. When in Local UVL? mode, returns the last setting from the front panel in a 4 digit string. Sets the Auto-restart mode to ON or OFF. AST n AST 1 (or AST ON): Auto-Restart On.

  • Page 91: Global Output Commands

    8.8. Global Output Commands 8.8.1. Description Global commands are a way to quickly set all power supplies on the RS-232/RS-485 Digital communication bus to the same setting. For example, sending “GOUT OFF” is one way to turn a whole group of supplies OFF at nearly the same time. CAUTION After sending a global command, it is important that the controller wait 200 mSec before sending any more RS-232/RS-485 messages.
  • Page 92 Table 8-6: Voltage Programming Range Table 8-7: Current programming range (10kW) (10kW/15kW) Model Minimum Maximum Model Minimum Maximum Rated Output Voltage (VDC) (VDC) (VDC) 7.5-1000 100.0 10.0 10-1000 100.0 12.5 12.5 12.5-800 800.0 20.0 20-500 500.0 25.0 25-400 400.0 30.0 30-333 333.0 40.0...
  • Page 93 Table 8-10: Current programming range (15kW) Model Minimum Maximum 30-500 500.0 40-375 375.0 50-300 300.0 60-250 250.0 80-187.5 187.5 100-150 150.0 125-120 120.0 150-100 100.0 200-75 75.0 250-60 60.0 300-50 50.0 400-37.5 37.5 500-30 30.0 600-25 25.0 Table 8-11: OVP Programming Range (15kW) Table 8-12: UVL Programming Range (15kW) Model Minimum...

  • Page 94: Fast Queries

    8.9. Fast Queries These are commands that read a response very quickly from the Power Supply. They use unprintable character codes. They allow the Power Supply to avoid the normal command processing delays. The processing time for these queries is typically 2ms, so total query speed is 2ms plus the RS-232/RS-485 transmission time.

  • Page 95: Status And Error Commands

    Carriage-return terminator 8.9.4. Service Request Messages A Genesys™ power supply can automatically send messages over the RS-232/RS-485 lines when there is a change in operating mode or if a fault occurs. These messages are called Service Requests or SRQs. They are setup with the RS-232/RS-485 status registers (see Section 8.11 and 8.12).

  • Page 96: Status, Error, And Srq Registers

    Refer to Fig. 8-7 for the Status and Error Registers Diagram. NOTE: these registers operate in a way that is similar to the IEEE-488 and SCPI registers (as used by the Genesys™ with the “-IEMD” option), but the structure and command set is different.
  • Page 97 Conditional Registers The fault Condition Register and the Status Condition Register are read only registers that the user may read to see the condition of the Power Supply. Refer to Table 8-8 for description of the Fault Condition Register bits and Table 8-9 for the Status Condition register bits.
  • Page 98 A. Fault Enable Register (FENA nn, FENA?) The Fault Enable Register is set to the enable faults SRQs. Table 8-12: Fault Enable Register Enable Fault symbol Bit Set condition Bit reset condition bit name 0 (LSB) Spare bit SPARE User command: User command: “FENA nn”...

  • Page 99: Serial Communication Test Set-Up

    8.12. Serial Communication Test Set-Up Use the following instructions as basic set-up to test the serial communication operation. 8.12.1. Equipment: PC with Windows Hyper Terminal, software installed, Genesys Power supply, RS-232 cable. 8.12.2. PC set-up: 2.1 Open Hyper Terminal…………………….New Connection 2.2 Enter a name...
  • Page 100 8.12.4. Communication Test: Select a power supply at address 6: PC: write: ADR 06 Power supply response: “OK” Command test: PC write: OUT 1 Power supply response: “OK” PC write: PV 5.0 Power supply response: “OK” PC write: PC 10.0 Power supply response: “OK”...

  • Page 101: Isolated Analog Programming Option

    Introduction Isolated Analog Programming is an internal option card for Remote Analog programming of the Genesys power supply series. The option is factory installed and cannot be obtained with IEMD or LAN Interfaces. Output Voltage and Current Limit can be programmed and read back through optically isolated signals which are isolated from all other ground references in the power supply.

  • Page 102: Isolated Programming & Monitoring Connector

    9.3. Isolated Programming & Monitoring Connector Refer to Table 9-1 for a detailed description of the rear panel Isolated Programming & Monitoring connector. To provide the lowest noise performance, it is recommended to use shielded-twisted pair wiring. Refer to Fig.9-1 for description of the connector. Isolated programming plug P/N: MC1.5/8-ST-3.81, Phoenix.

  • Page 103: Setup And Operating Instructions

    9.4. Setup and Operating Instructions CAUTION To prevent damage to the unit, do not program the Output voltage and Output current to higher then the power supply ratings. 9.4.1. Setting up the power supply for 0-5V/0-10V Isolated Programming and Monitoring Perform the following procedure to configure the power supply.

  • Page 104: Maintenance

    This Chapter provides information about maintenance, calibration and troubleshooting. 10.2. Units Under Warranty Units requiring repair during the warranty period should be returned to a TDK-Lambda Americas Inc. Authorized Service Facility. Refer to the addresses listing on the back cover of this user manual.
  • Page 105 Table 10-1: Troubleshooting Guide SYMPTOM CHECK ACTION Is the AC power cord defective? Check continuity, replace if No output. All displays and indicators necessary. are blank. Is the AC input voltage within Check AC input voltage. range? Connect to appropriate voltage source.
