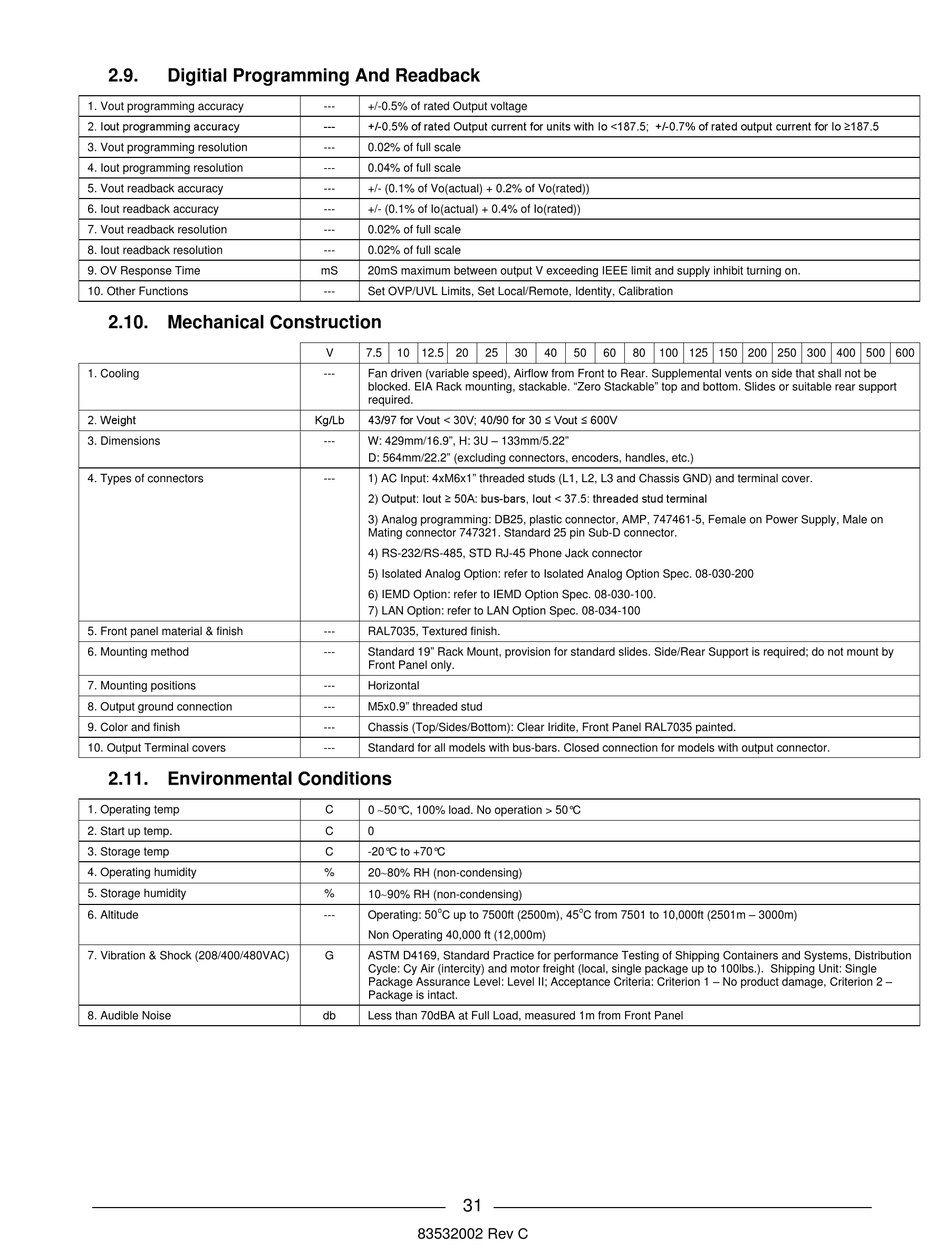

2.9.

Digitial Programming And Readback

1. Vout programming accuracy
2. Iout programming accuracy
3. Vout programming resolution
4. Iout programming resolution
5. Vout readback accuracy
6. Iout readback accuracy
7. Vout readback resolution
8. Iout readback resolution
9. OV Response Time
10. Other Functions

2.10. Mechanical Construction

1. Cooling
2. Weight
3. Dimensions
4. Types of connectors
5. Front panel material & finish
6. Mounting method
7. Mounting positions
8. Output ground connection
9. Color and finish
10. Output Terminal covers

2.11. Environmental Conditions

1. Operating temp
2. Start up temp.
3. Storage temp
4. Operating humidity
5. Storage humidity
6. Altitude
7. Vibration & Shock (208/400/480VAC)
8. Audible Noise
--- +/-0.5% of rated Output voltage
--- +/-0.5% of rated Output current for units with Io <187.5; +/-0.7% of rated output current for Io ≥187.5
--- 0.02% of full scale
--- 0.04% of full scale
--- +/- (0.1% of Vo(actual) + 0.2% of Vo(rated))
--- +/- (0.1% of Io(actual) + 0.4% of Io(rated))
--- 0.02% of full scale
--- 0.02% of full scale
mS 20mS maximum between output V exceeding IEEE limit and supply inhibit turning on.
--- Set OVP/UVL Limits, Set Local/Remote, Identity, Calibration
V 7.5 10 12.5 20 25
--- Fan driven (variable speed), Airflow from Front to Rear. Supplemental vents on side that shall not be
blocked. EIA Rack mounting, stackable. "Zero Stackable" top and bottom. Slides or suitable rear support
required.
Kg/Lb 43/97 for Vout < 30V; 40/90 for 30 ≤ Vout ≤ 600V
--- W: 429mm/16.9", H: 3U – 133mm/5.22"
D: 564mm/22.2" (excluding connectors, encoders, handles, etc.)
--- 1) AC Input: 4xM6x1" threaded studs (L1, L2, L3 and Chassis GND) and terminal cover.
2) Output: Iout ≥ 50A: bus-bars, Iout < 37.5: threaded stud terminal
3) Analog programming: DB25, plastic connector, AMP, 747461-5, Female on Power Supply, Male on
Mating connector 747321. Standard 25 pin Sub-D connector.
4) RS-232/RS-485, STD RJ-45 Phone Jack connector
5) Isolated Analog Option: refer to Isolated Analog Option Spec. 08-030-200
6) IEMD Option: refer to IEMD Option Spec. 08-030-100.
7) LAN Option: refer to LAN Option Spec. 08-034-100
--- RAL7035, Textured finish.
--- Standard 19" Rack Mount, provision for standard slides. Side/Rear Support is required; do not mount by
Front Panel only.
--- Horizontal
--- M5x0.9" threaded stud
--- Chassis (Top/Sides/Bottom): Clear Iridite, Front Panel RAL7035 painted.
--- Standard for all models with bus-bars. Closed connection for models with output connector.
0 50°C, 100% load. No operation > 50°C
C
C 0
C -20°C to +70°C
%
2080% RH (non-condensing)
%
1090% RH (non-condensing)
o
--- Operating: 50 C up to 7500ft (2500m), 45
Non Operating 40,000 ft (12,000m)
G ASTM D4169, Standard Practice for performance Testing of Shipping Containers and Systems, Distribution
Cycle: Cy Air (intercity) and motor freight (local, single package up to 100lbs.). Shipping Unit: Single
Package Assurance Level: Level II; Acceptance Criteria: Criterion 1 – No product damage, Criterion 2 –
Package is intact.
db Less than 70dBA at Full Load, measured 1m from Front Panel
31
83532002 Rev C
30 40 50 60 80 100 125 150 200 250 300 400 500 600
o
C from 7501 to 10,000ft (2501m – 3000m)
