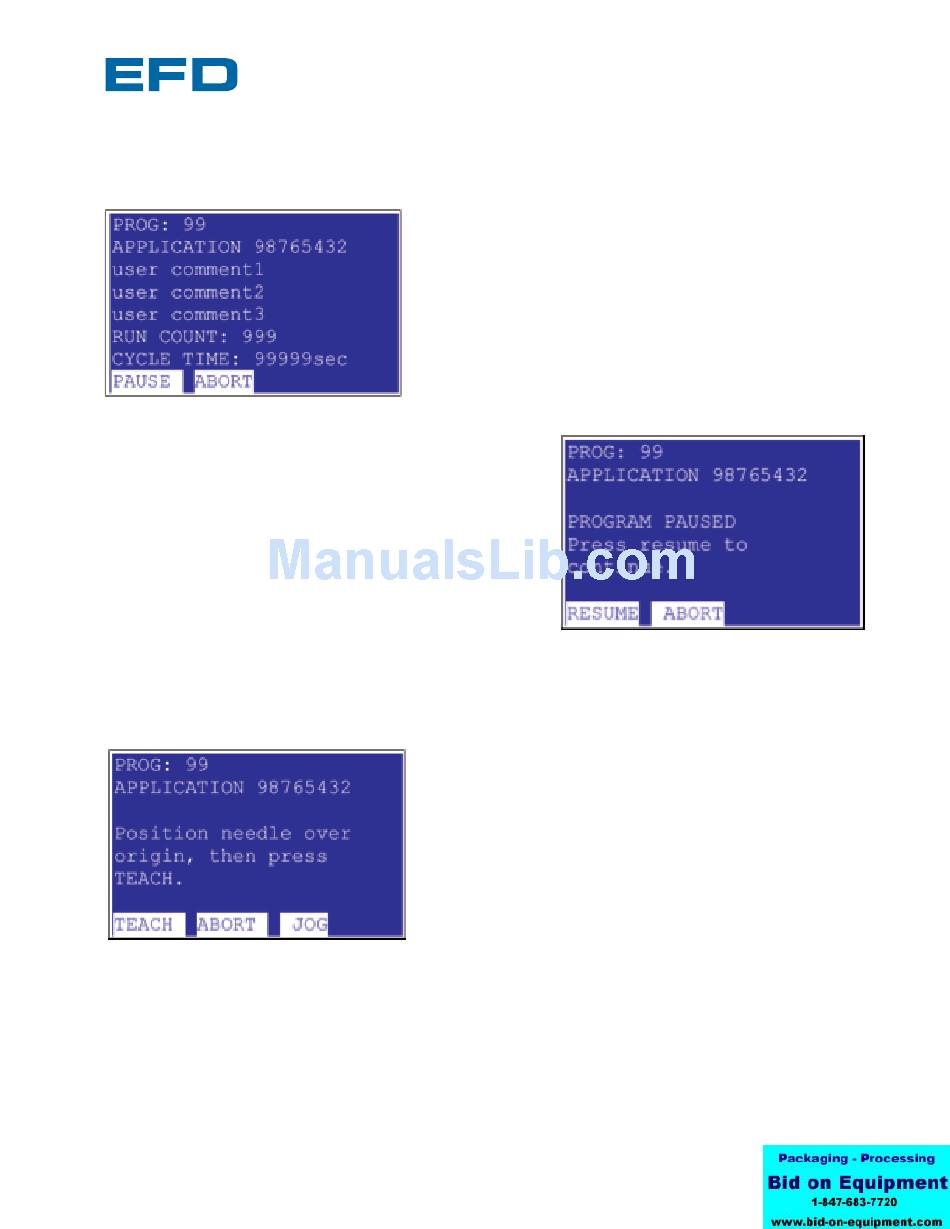

To pause or abort a program while it is running, press the button beneath the respective word.
To resume a paused program, press the button beneath
the word "RESUME". This will re-start the program at
the point in the program after the Pause signal was
received.
Note: Aborted programs cannot be resumed.
7.4

TIP OFFSET/RELOCATE

To relocate the tip, press the "JOG" button and then use the arrow keys on the front panel to
adjust tip to the desired position before pressing the "TEACH" button.
During a pause or abort command, the machine will
complete its current dispensing instruction before
turning the dispenser off. An aborted program ends
the cycle and sends the machine to the park location.
The Ultra TT System manages tip offset by adjusting the
position of the program origin. The offset manager can
be set to run automatically every time a program is
cycled or the User can use the PDA to change origin
when desired.
If selected to teach at run-time from the program origin
teach window, the User will be required to verify the
dispense tip location and re-teach the origin if necessary.
Ultra TT User's Guide
Version 1.2
56
