Configuration Resistors
Configuration Resistors
This section describes the configuration resistors of the two TigerSHARC
processors. The locations of the configuration resistors and their respective
default settings are shown in

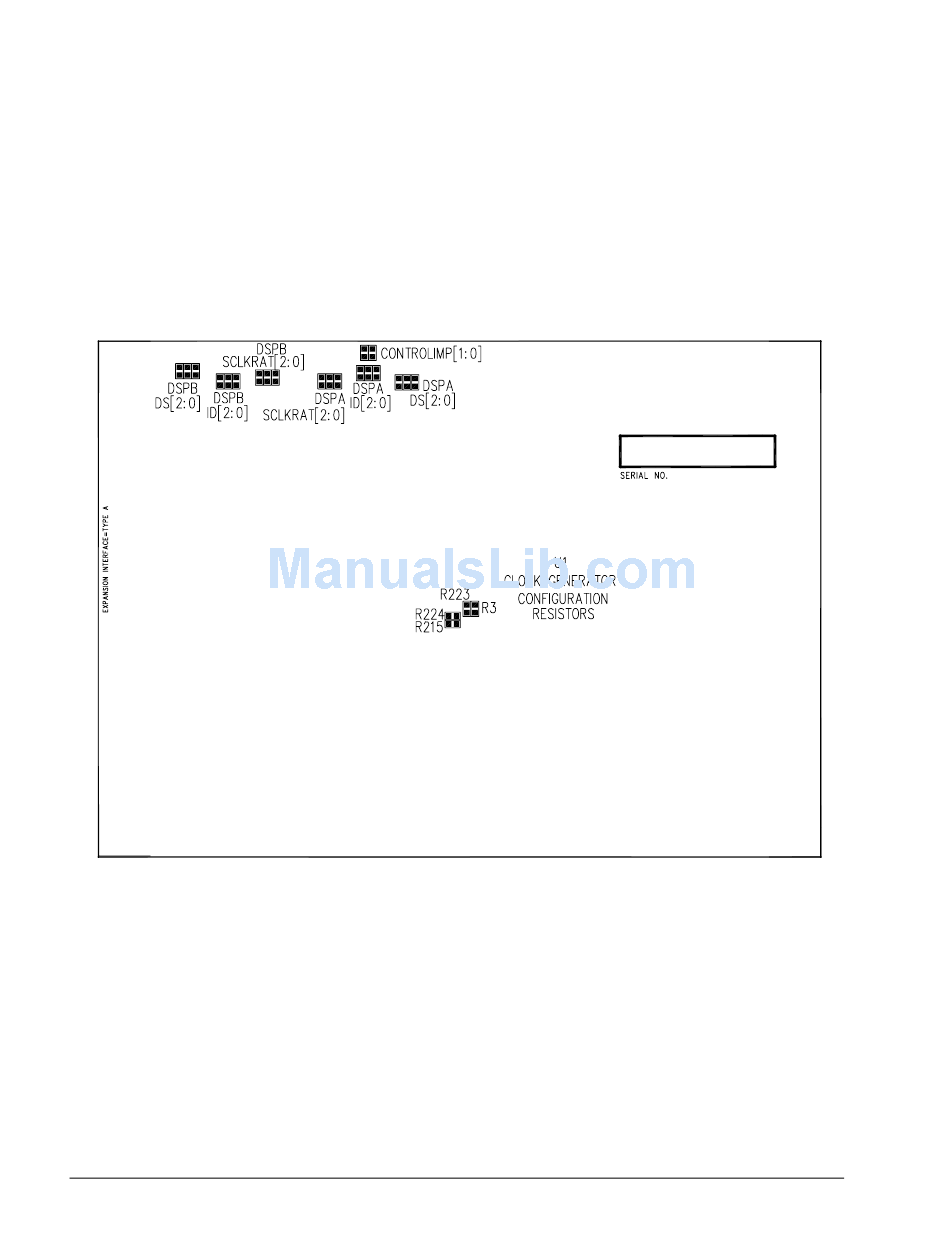

Figure 2-3. Resistor Locations (Bottom View of the Board)
Processor ID Settings
The two ADSP-TS201S processors on the EZ-KIT Lite are factory-config-
ured to set the processor A to an ID value of zero and processor B to an ID
value of one. This means that in the cluster, processor A is the master.
2-10
Figure
ADSP-TS201S EZ-KIT Lite Evaluation System Manual
2-3.
