Replacement of CPE400 Mounting Bracket
When shipped, the CPE400 is attached to the DIN-rail mounting bracket. The panel-mount bracket is
supplied in the shipping carton, unattached. If the application requires panel-mounting rather than DIN-
Rail mounting, exchange the mounting brackets, as follows.
1. Using a T10 TORX screwdriver, remove the four machine screws (Figure 16) that secure the DIN-
Rail Mounting Bracket to the CPE400 chassis.
2. Keep the DIN-Rail Mounting Bracket and its four screws together in case of future need;
otherwise discard.
3. Install the panel-mount bracket as shown in Figure 17, using the four machine screws supplied
with that bracket. Note that the closed eyelet is towards the top of the chassis.
4. Using a T10 TORX screwdriver, torque these four machine screws to 0.6Nm (0.44 ft-lbs) in order
to securely attach the bracket to the CPE400 chassis.
5. If reversing the bracket switch, note that each bracket requires its own set of machine screws.
Torque requirements are the same.

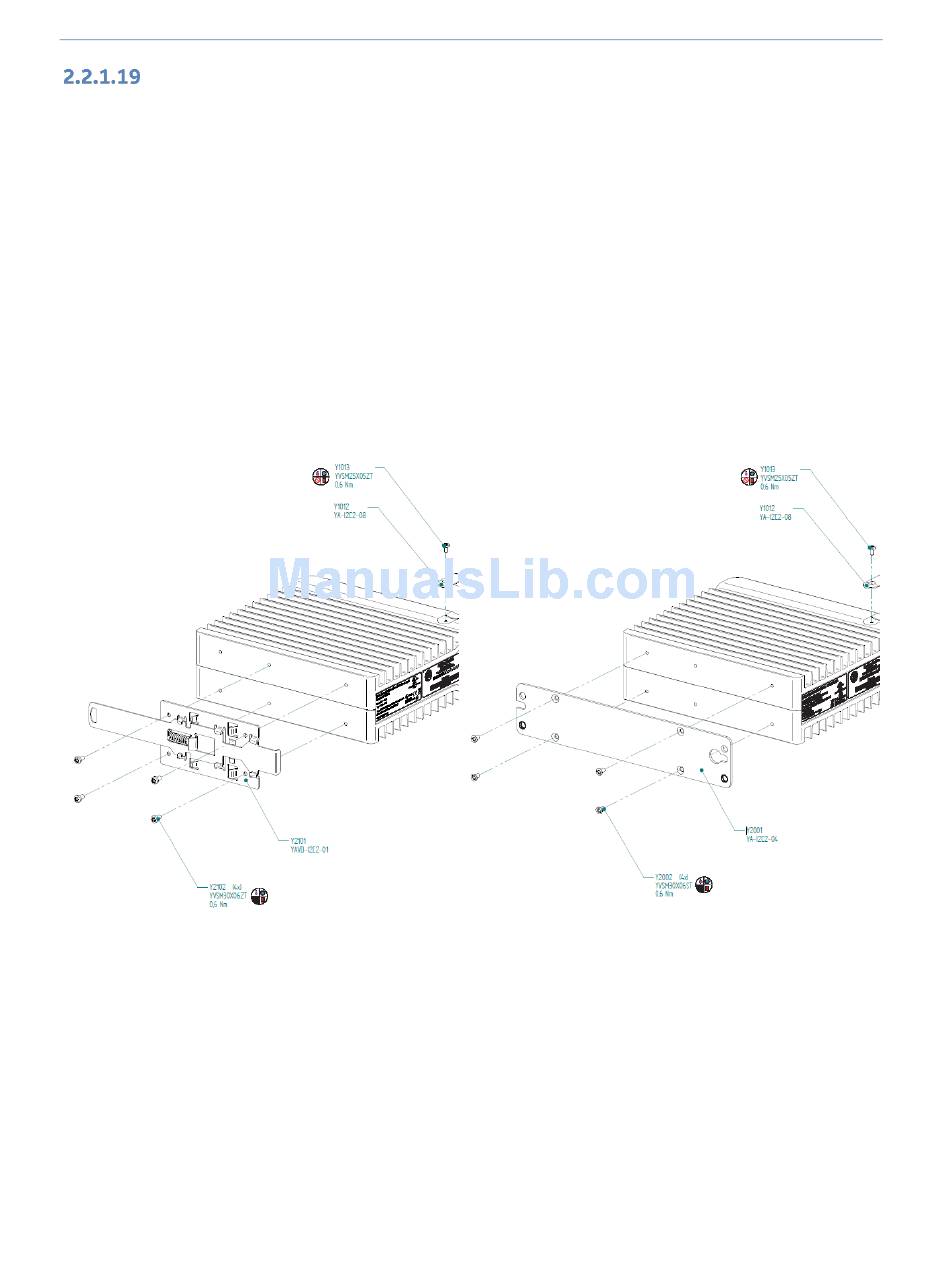

Figure 16: DIN-Rail Mount Bracket Assembly
CPE400
