Chapter 2. CPU Features & Specifications
Micro-SD Card Interface
The Micro SD Card slot is located on the right-hand side of the equipment (Figure 2), level with the OLED
display. This port is not functional at time of publication. Once functional, it will support the Removable
Data Storage Device features discussed in Section 2.1.8.
The interface supports SD, SDHC and SDXC µSD-Cards up to Version 3.0.
Insert the card into to slot, oriented as described below. Apply pressure it until you feel some resistance.
The card will latch into place and can then be read by the equipment. Apply pressure again to remove
the card from the slot.

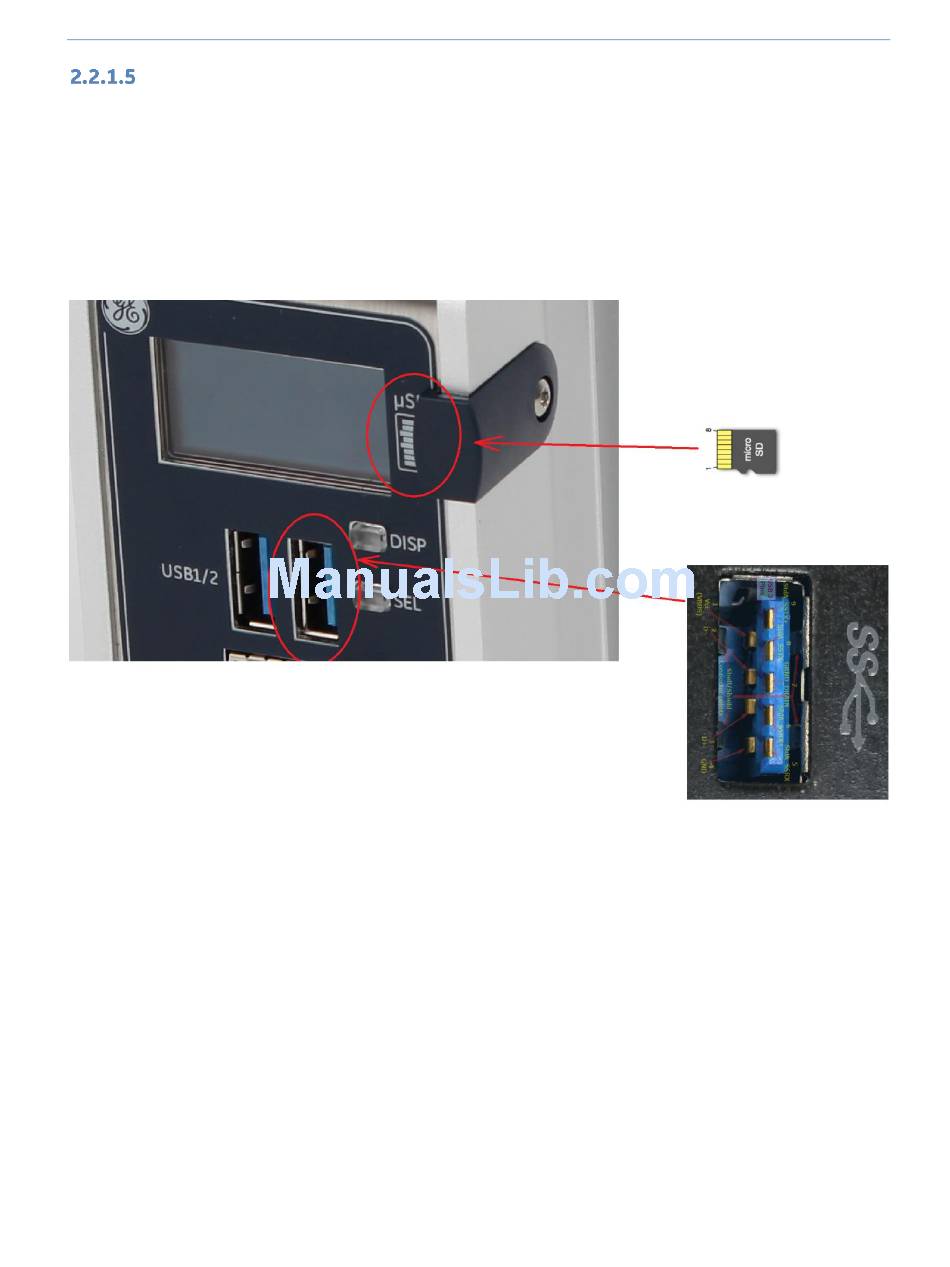

Figure 4: CPE400 Micro-SD & USB Pinouts
Note that the µSD-Card needs to be inserted in the slot with the correct orientation. The pins of the card
need to face towards the front of the equipment (Figure 4).
A cover and screw are provided. To minimize CPE400 susceptibility to electrical noise interference, keep
the cover in place during normal operation.
GFK-2222AD April 2018 41
