two internal components. From the main control box extract a power cable
Connect the
(red and black) which is attached at one end. Plug the other end into the ancillary board

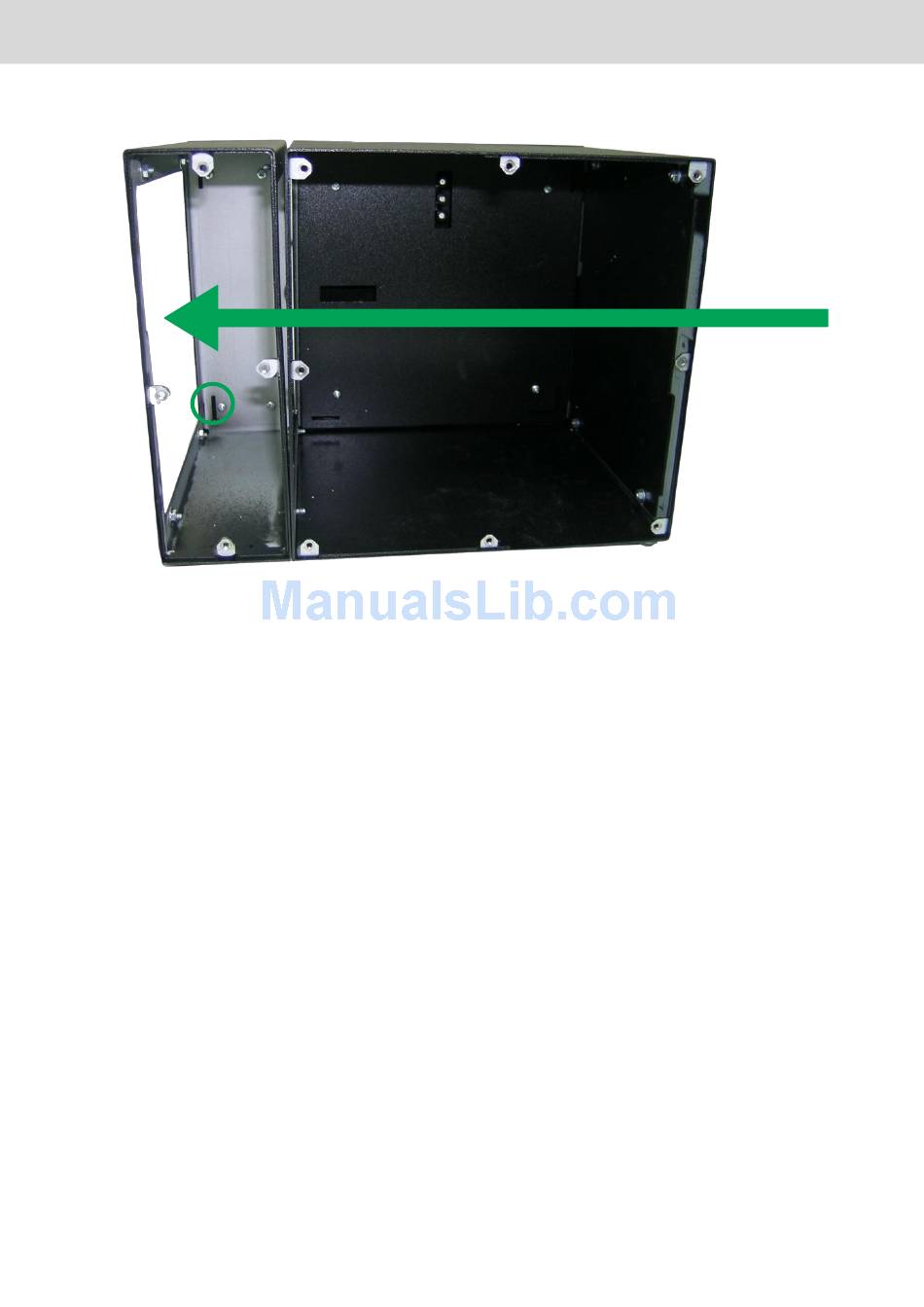

(see green circles on the next page). It can go into either one of the sockets than will
accept it. On the ancillary board there is a yellow and white cable, connected at both
ends. Undo one of these connectors (it does not matter which) and connect it to the
spare connector next to the white and yellow cable on the main box (see orange circles
on the next page). Ensure that the cables are threaded through the opening between the
two cases; otherwise it will not be possible to place the boards back into their cases.
