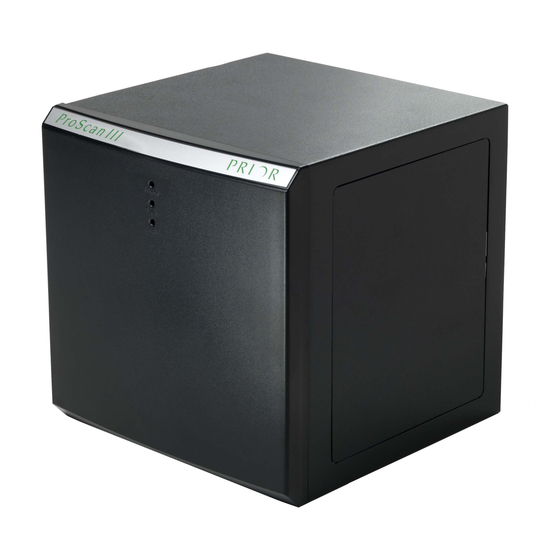

Prior Scientific PROSCAN III Manual

IMPORTANT SAFETY
INFORMATION
PLEASE READ THE MANUAL BEFORE USING!
THE MANUAL IS AVAILABLE FROM PRIOR SCIENTIFIC AND
SHOULD BE READ AND UNDERSTOOD BEFORE INSTALLATION
AND USE. THE MANUAL IS AVAILABLE FROM WWW.PRIOR.COM
• Adhere to all warnings on the product and in the user manual.
• This product MUST NOT be exposed to open flames extremely hot
or cold temperature, water or moisture. DO NOT allow objects to
fall, or liquids to spill, on the product.
• The ProScan III is a Class 1 system and must be grounded.
• Connect the AC power cord only to designated power sources as
marked on the product. Make sure the electrical cord is located so
that it will not be subject to damage.
• Ensure the connection to the power source and the front panel
power switch are easily accessible.
• Do not connect or disconnect anything to or from the ProScan III
unless the controller is turned off first.
• DANGER – Never alter the AC cord or plug. The power cord set
must be an appropriately rated and approved cord set in accordance
in the regulations of the country it is used in. If the supplied plug
adapter is not the correct fitting for your geographic area or if you
are unsure about the relevant regulations, please contact your
supplier for advice.
• Do not attempt to disassemble, tamper or repair this product; it
contains NO user serviceable parts and doing so may void the
warranty. Service should be performed ONLY by authorized service
centers.
• Clean only the exterior of this product using a damp, lint free cloth.
• Installing older revision firmware is never recommended and may
render unit inoperable.
• Please contact Prior for information on updating controller firmware
if deemed necessary. New units ship with the latest firmware and
should not need updating.
• Please contact Prior Scientific at 781-878-8442 or an approved
representative if you have any questions or comments.
ALWAYS MAKE SURE THE POWER TO THE PROSCAN III IS OFF
BEFORE CONNECTING OR DISCONNECTING ANY COMPONENTS
Focus Encoder Z Encoder Y
RS232-1 RS232-2

Power On/Off

Power Socket
CONNECTIONS
Stage
Encoder X A Axis
USB Joystick
CANBUS
Filter 1 Filter 2
Shutter
2
