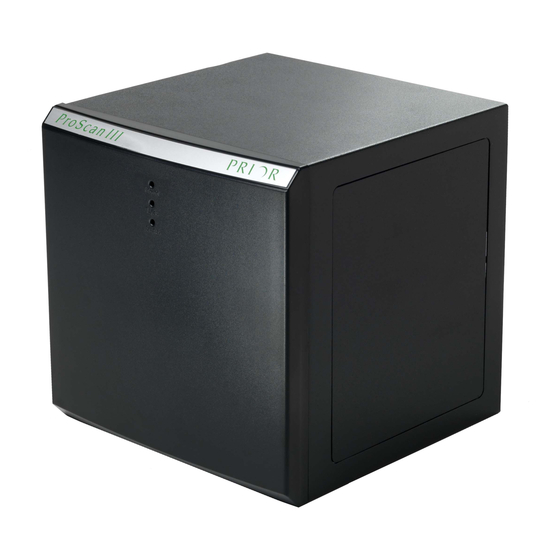

Prior Scientific PROSCAN III Manual

IMPORTANT SAFETY
INFORMATION
PLEASE READ THE MANUAL BEFORE USING!
THE MANUAL IS AVAILABLE FROM PRIOR SCIENTIFIC AND SHOULD BE
READ AND UNDERSTOOD BEFORE INSTALLATION AND USE.
THE MANUAL IS AVAILABLE FROM WWW.PRIOR.COM
• Adhere to all warnings on the product and in the user manual.
• This product MUST NOT be exposed to open flames, extremely hot or cold
temperature, water or moisture. DO NOT allow objects to fall, or liquids to spill,
on the product.
• The ProScan III is a Class 1 system and must be earthed.
• Connect the AC power cord only to designated power sources as marked
on the product. Make sure the electrical cord is located so that it will not be
subject to damage.
• Ensure the connection to the power source and the front panel power switch
are easily accessible.
• Do not connect or disconnect anything to or from the ProScan III unless the
controller is turned off first.
• DANGER – Never alter the AC cord or plug. The power cord set must be an
appropriately rated and approved cord set in accordance in the regulations of
the country it is used in. If the supplied plug adapter is not the correct fitting
for your geographic area or if you are unsure about the relevant regulations,
please contact your supplier for advice.
• Do not attempt to disassemble, tamper or repair this product; it contains
NO user serviceable parts and doing so may void the warranty. Service
should be performed ONLY by authorised service centres.
• Clean only the exterior of this product using a damp, lint free cloth.
• Please contact Prior or an approved representative if you have any
questions or comments.
PROSCAN III CONNECTIONS
Filter 2 A Axis
Filter 1
Encoder X
Encoder Y
Encoder Z
Focus
RS232-2
RS232-1
Power on/off
switch
Power Socket
The ProScan III now utilises Win. 7, 8 and 10 compatible driver
which automatically install.
Shutter 3 Shutter 2 Shutter 1
Stage
USB
Joystick
CANBUS
TTL
