3 Installation
3.5 Installation of hardware

3.5.1 Attaching the camera head

3.5.1 Attaching the camera head

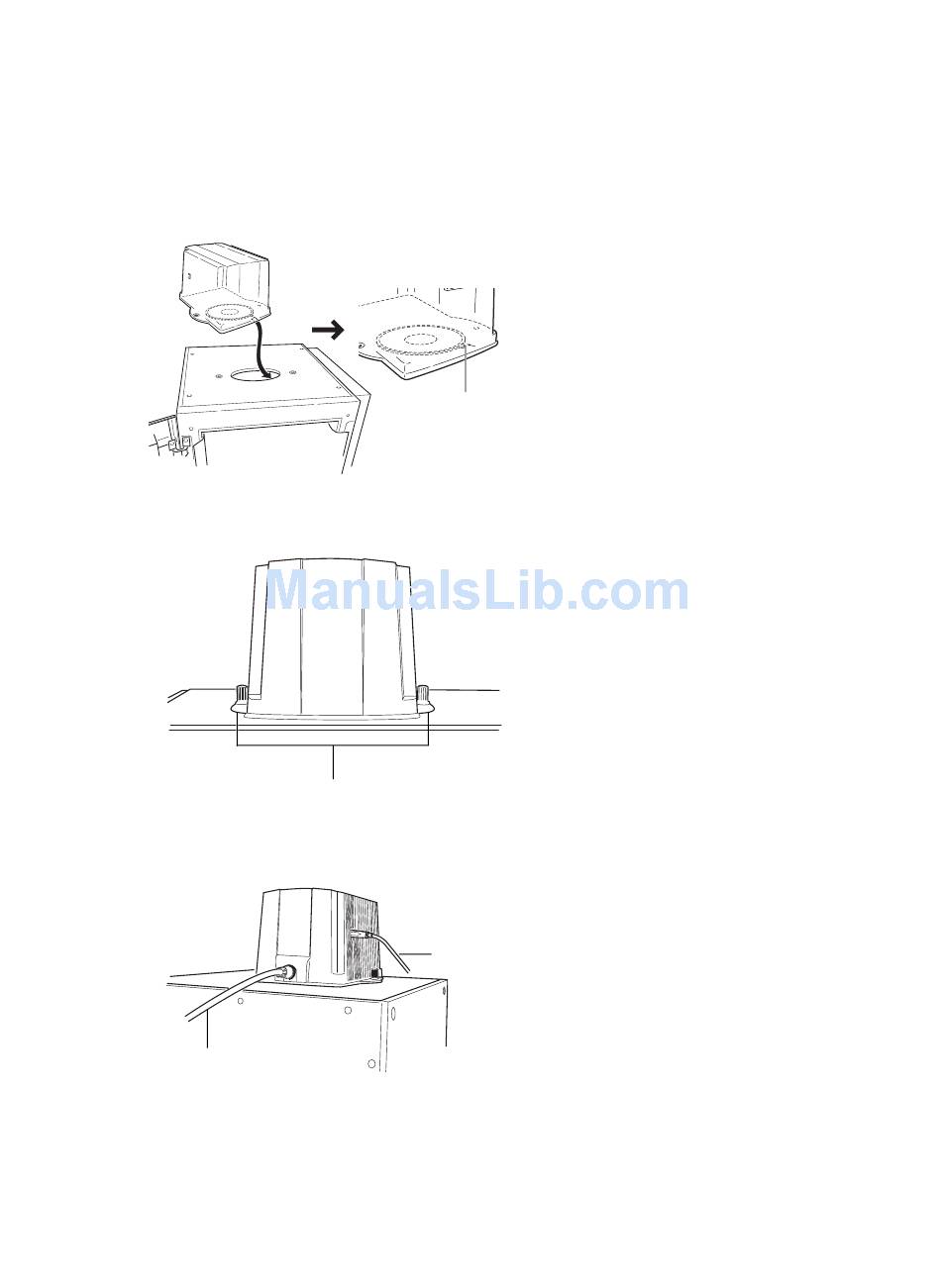

The camera head is attached to the IDX as follows:
1 Install the camera head while pushing the lens release button against this side's wall surface of
the camera hole.
2 Attach the two screws fixing the camera head.
3 Connect the camera cable and USB cable.
Camera cable
4 Proceed to install the lens. See Section 3.5.3 Installing the lens, on page 35.
34
Lens release button
Two screws
USB cable
Getting Started with ImageQuant LAS 4000 28-9607-59 AB
