• Image capture and analysis is simplified using the ImageQuant LAS 4000 Control Software in
combination with GE Healthcare's analysis software, ImageQuant TL.
ImageQuant LAS 4000 hardware components

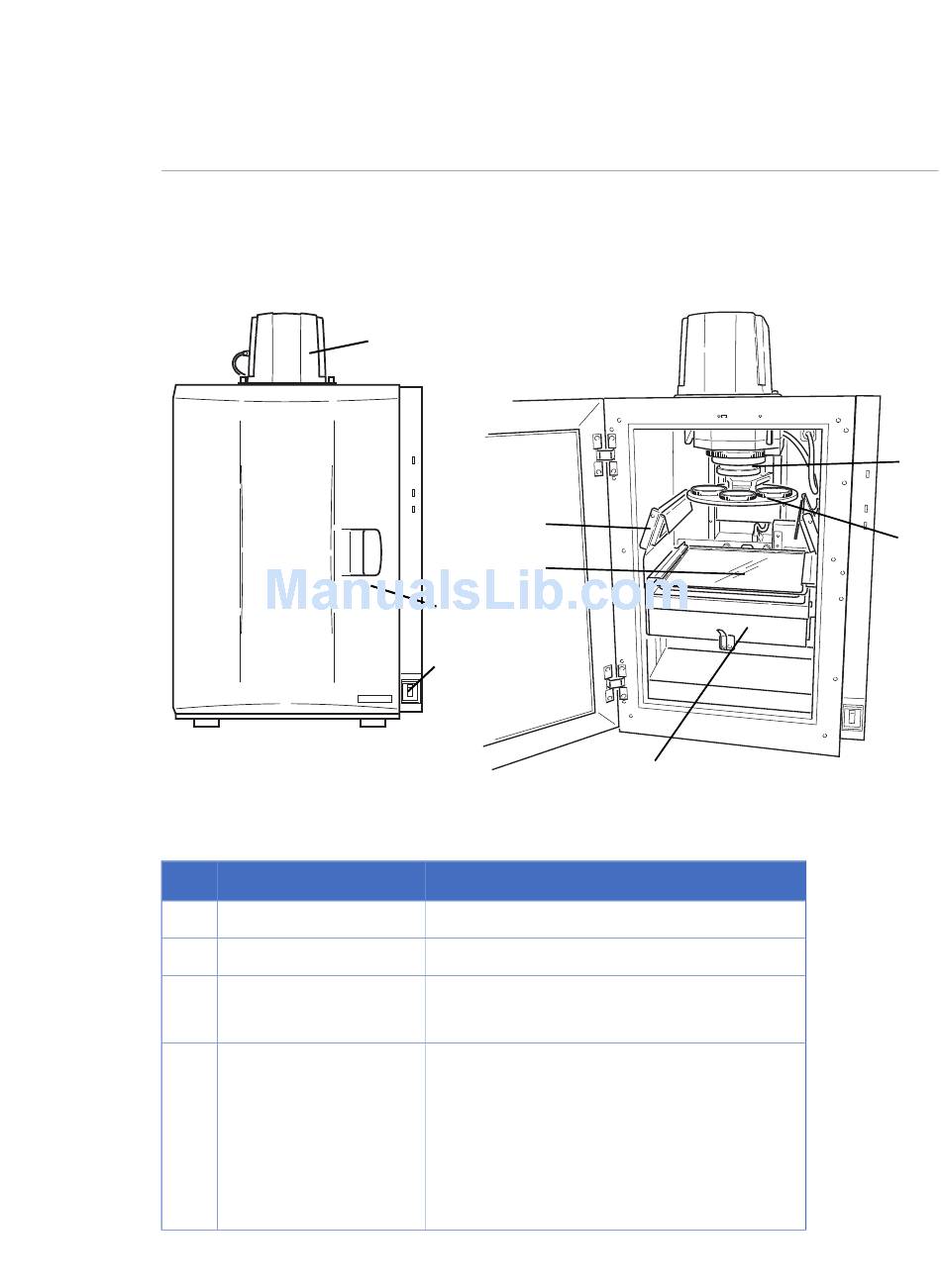

The following illustrations and table show the main hardware components of the ImageQuant LAS
4000.
Intelligent dark box (IDX)
Part
1
2
3
4
Getting Started with ImageQuant LAS 4000 28-9607-59 AB
1
Name
Camera head
Intelligent dark box (IDX)
Lens
Epi light source
4
7
2
8
Description
CCD cooling and image data output
Dark box
F0.85/43 mm LAS High Sens. lens, or
F1.8/24 mm wide view lens
NIR Epi light (710 nm)
Red Epi light (630 nm)
Green Epi light (520 nm)
Blue Epi light (460 nm)
UV Epi light (365 nm)
White Epi light
1.3 The ImageQuant LAS 4000
5
IDX interior
1 Introduction
3
6
9
