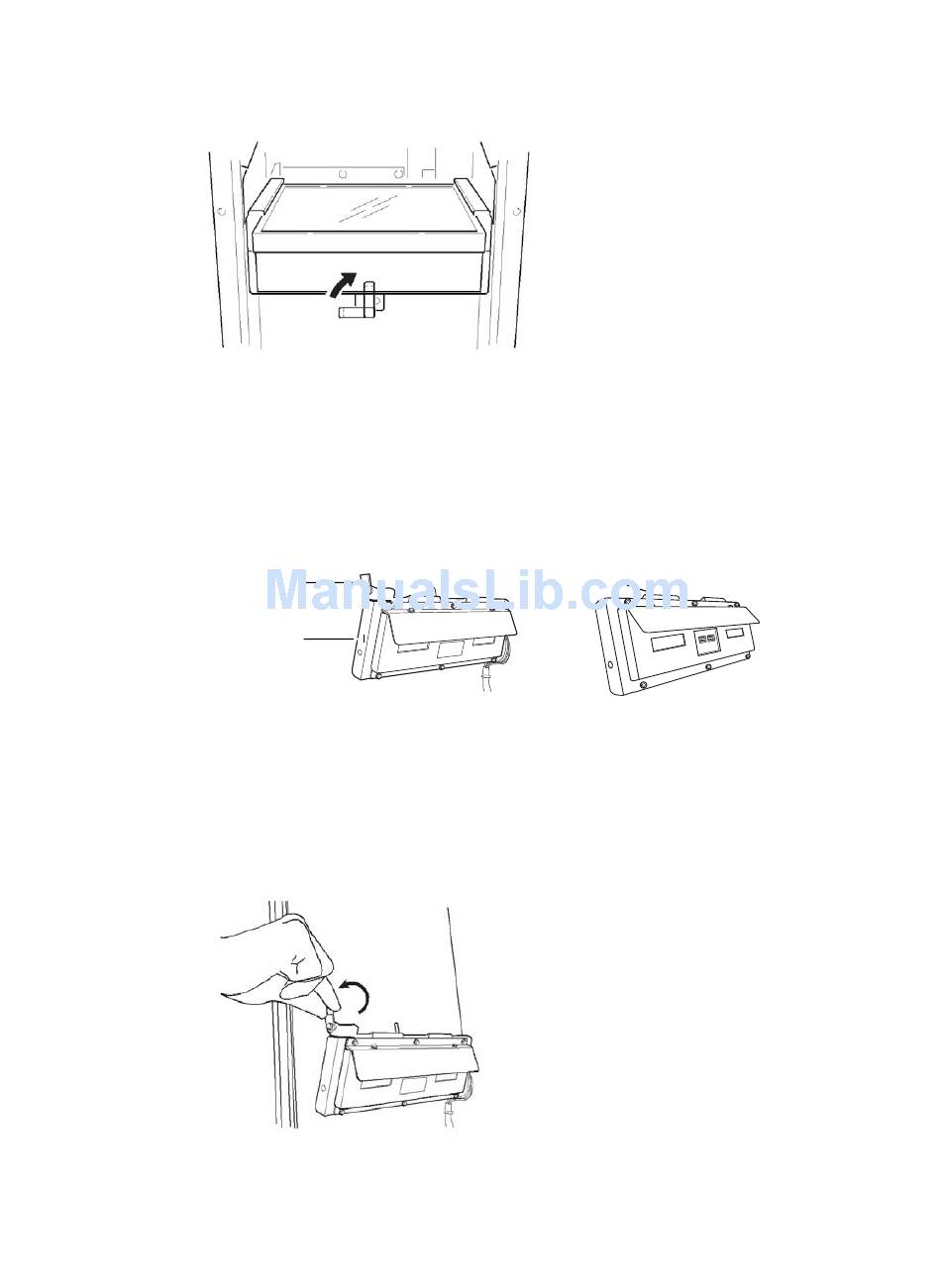

5 Turn the lever at the front to lock the light source into position.
Changing the Epi lights
This section describes how to change a set of Epi lights.
Note:
1 If the tray is at Tray position 4, proceed to step 3. Otherwise, close the IDX door.
2 Click on Method/Tray position, set Tray position to 4, and click the OK button.
3 Open the IDX door. If no Epi light is currently in place inside the instrument, proceed to step 7.
4 Spring up the latch to unlock the Epi light.
Getting Started with ImageQuant LAS 4000 28-9607-59 AB
The tray should be at tray position 4 before installing Epi lights. If the tray is higher, then
it should be lowered to tray position 4 using the ImageQuant LAS 4000 Control Software
before attaching the lights, as described below.
Latch
Epi light base
4.2.2 Preparing the ImageQuant LAS 4000 for exposure
Hook
4 Operation
4.2 Preparation
