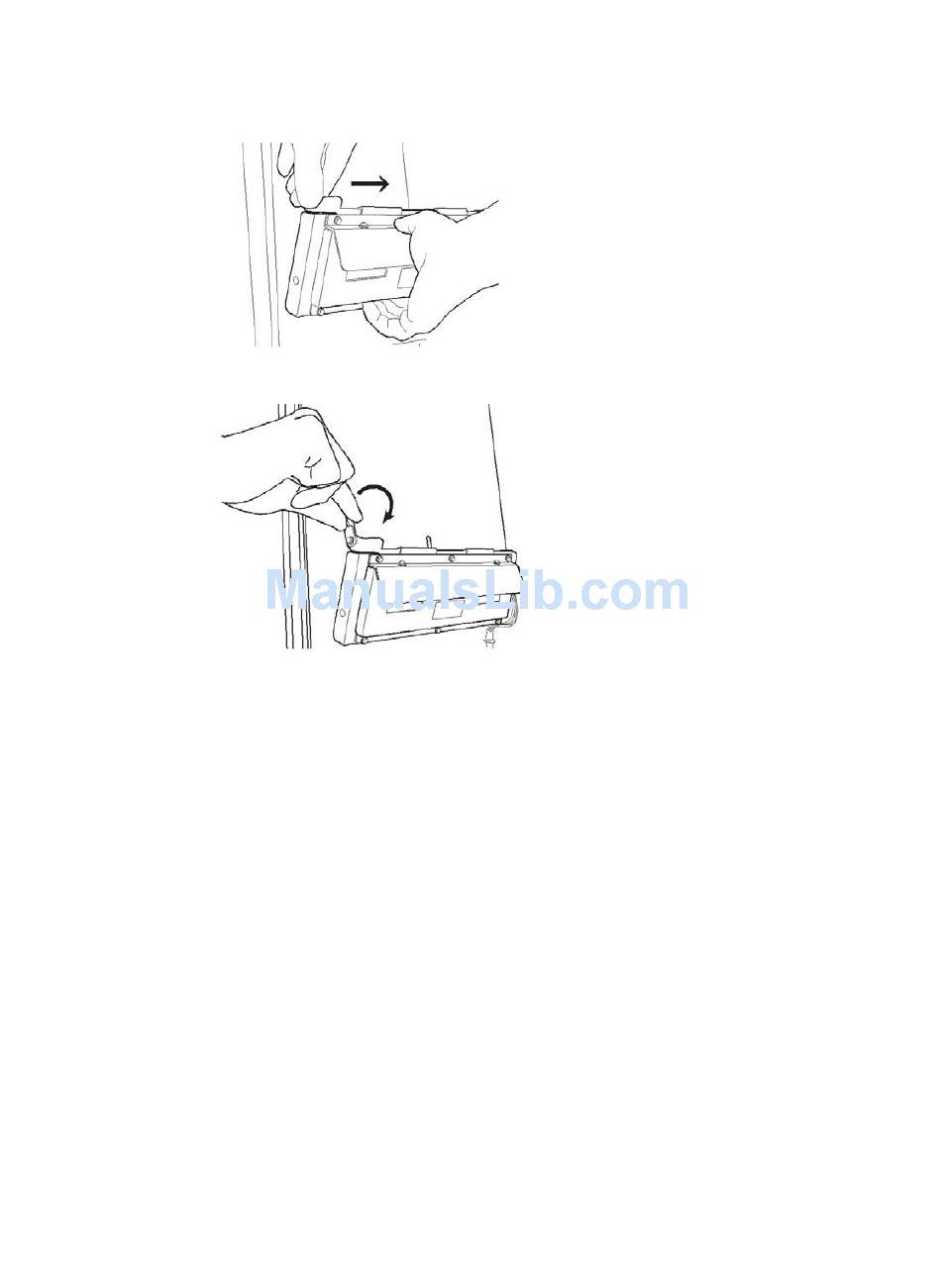

9 Push the Epi light while holding the latch open, and slide it inwards until a click sound is heard.
10 Lower the latch to lock the Epi light in place.
11 Repeat this process for the opposite side.
Note:
Getting Started with ImageQuant LAS 4000 28-9607-59 AB
• The Epi lights are clearly labelled L for the left and R for the right sides.
• Install the Epi lights in matching pairs only. If Epi lights with different wavelengths
are used, the intended image will not be obtained.
4.2.2 Preparing the ImageQuant LAS 4000 for exposure
4 Operation
4.2 Preparation
