4.1.9 FC 51 IP21 Kit Mounting Instruction

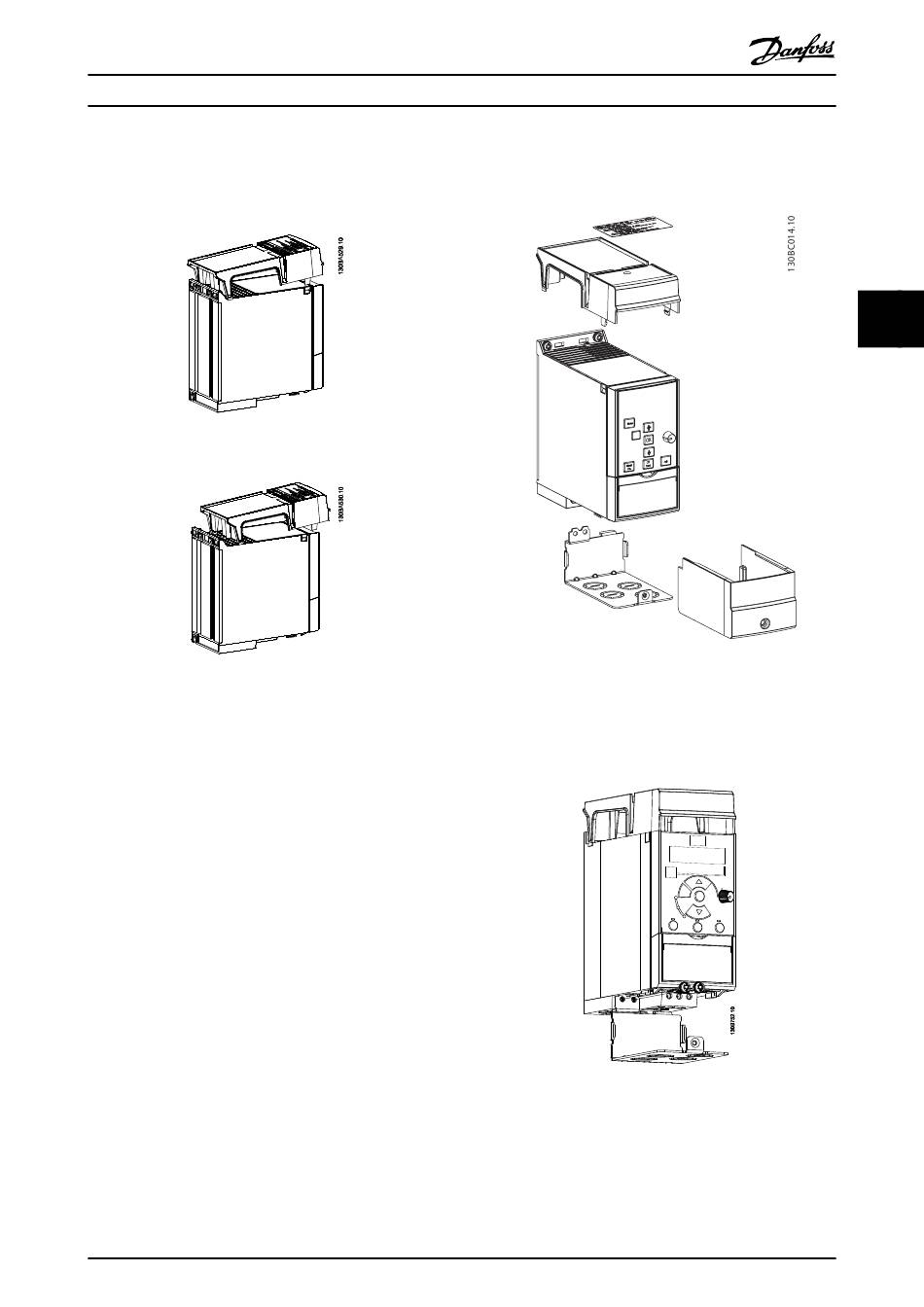

Step 1
Fit top cover on frequency converter.
Illustration 4.14
Illustration 4.15
Step 2
Remove knockouts on metal plate and fit rubber
grommets.
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
®
VLT
Micro Drive FC 51 Design Guide
Illustration 4.16
Step 3
Mount metal plate on frequency converter and tighten
screws. Tightening torque: 2 Nm.
Illustration 4.17
®
MG02K202 - VLT
