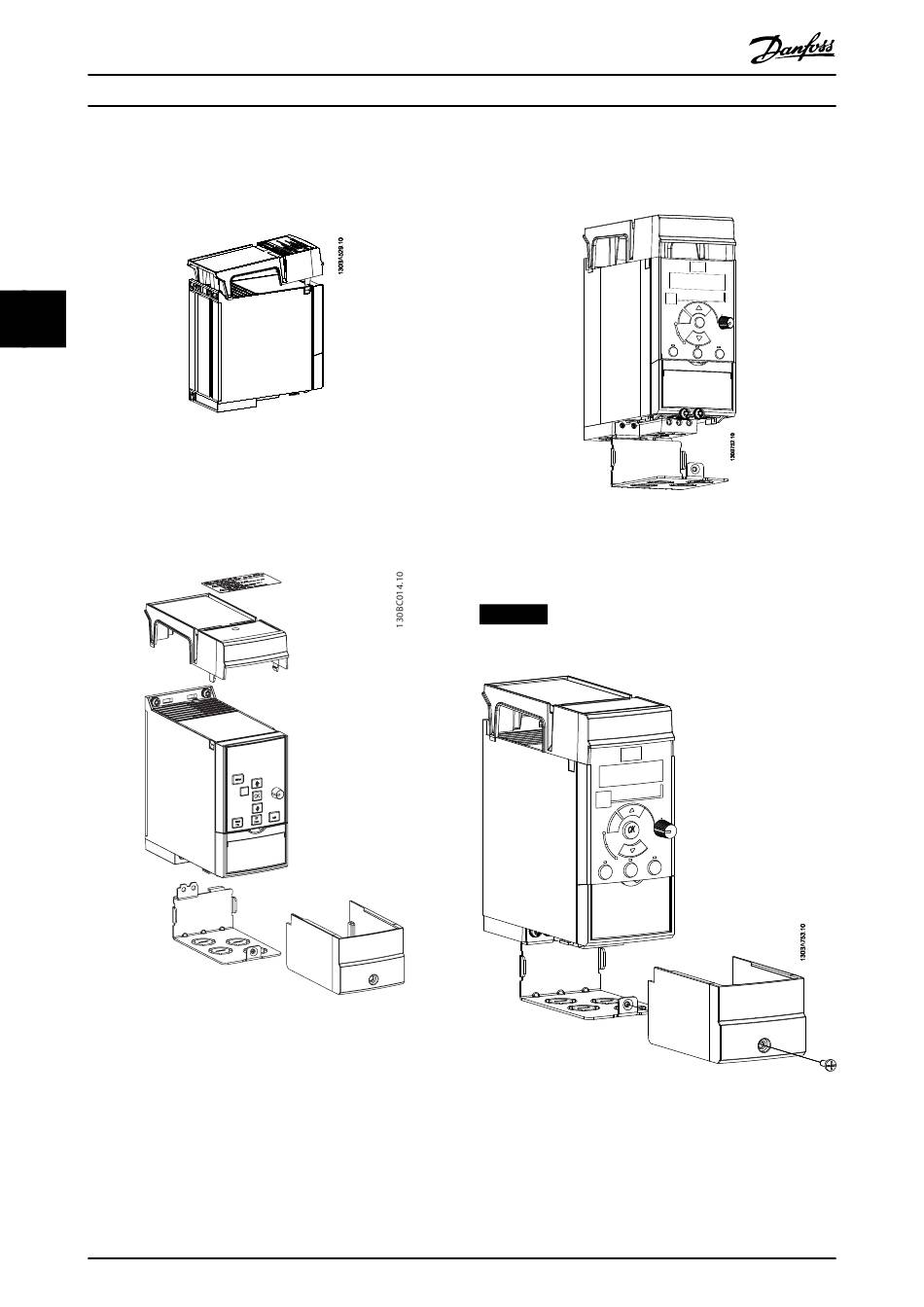

4.1.9 FC 51 IP21 Kit Mounting Instruction
Step 1
Fit top cover on frequency converter.
4
4
Illustration 4.12 Fit Top Cover on Frequency Converter
Step 2
Remove knockouts on metal plate and fit rubber
grommets.
Illustration 4.13 Remove Knockouts and Fit Rubber Grommets
30
®
VLT
Micro Drive FC 51
Step 3
Mount metal plate on frequency converter and tighten
screws. Tightening torque: 2 Nm (18 in-lb).
Illustration 4.14 Mount Metal Plate on Frequency Converter
Step 4
Fit base cover on frequency converter and tighten screw.
NOTICE
IP21 is only achieved with LCP 11 or LCP 12 mounted.
Illustration 4.15 Fit Base Cover on Frequency Converter
