Figure 1-1: Block Diagram Of The Cpci-8168 - ADLINK Technology cPCI-8168 User Manual

tions are performed internally by the ASIC, thus it can save CPU
loading.

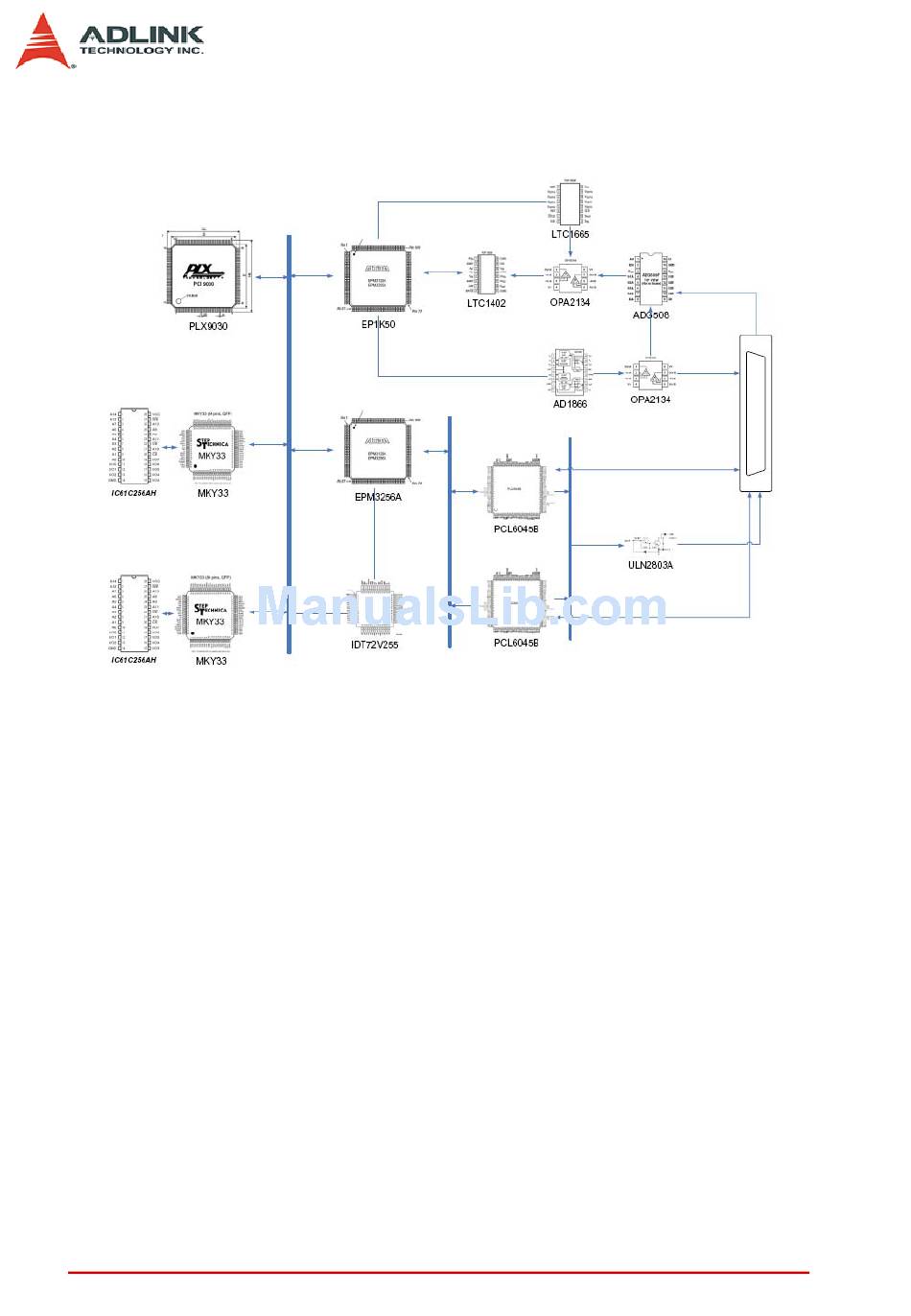

Figure 1-1: Block Diagram of the cPCI-8168

MotionCreator is a Windows-based application development soft-
ware package included with the cPCI-8168. MotionCreator is use-
ful for debugging a motion control system during the design phase
of a project. An on-screen display lists all installed axes informa-
tion and I/O signal status of the cPCI-8168.
Windows programming libraries are also provided for C++ com-
piler and Visual Basic. Sample programs are provided to illustrate
the operations of the functions.
2 Introduction
