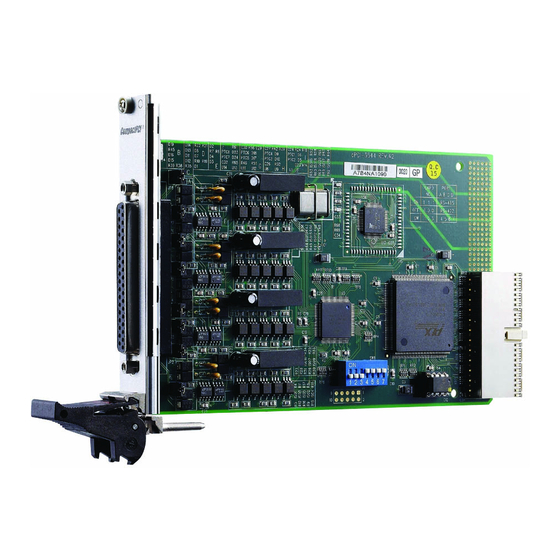

ADLINK Technology cPCI-3534 User Manual

4/8 ports serial communication modules
Hide thumbs Also See for cPCI-3534:
Table of Contents

Advertisement

Quick Links

Download this manual
ADLINK Technology cPCI-3534 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-3534 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology cPCI-3534

Summary of Contents for ADLINK Technology cPCI-3534

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 4/8 Ports Serial Communication Modules User’s Guide Recycled Paper Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 4 Trademarks cPCI-3534, cPCI-3544 and cPCI-3538 are registered trademarks of ADLINK TECHNOLOGY INC., MS-DOS, Windows 95, Windows NT are registered trademark of Microsoft Corporation. Intel is a registered trademark of Intel Corporation.
  • Page 5 Getting service from ADLINK ♦Customer Satisfaction is always the most important thing for ADLINK TECHNOLOGY INC. If you need any help or service, please contact us and get it. ADLINK TECHNOLOGY INC. Web Site http://www.adlink.com.tw Sales and service@adlink.com.tw Service Technical NuDAQ nudaq@adlink.com.tw...
  • Page 6 ADLINK cPCI Multi-port Communication Module Comparison Chart 3534 3544 3538 Serial port per system 4~32 8~16 RS-232 port per module RS-422/485 per module Serial communication 16C554 16C554 16C554 controller MAX System throughput 115.2K*4 115.2K*4 115.2K*8 Hardware compatibility cPCI bus cPCI bus cPCI bus DOS Windows DOS Windows...
  • Page 7 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 8: Table Of Contents

    Overview of cPCI-3534 ............2 1.2.1 What is cPCI-3534?..............2 1.2.2 Feature of cPCI-3534..............2 1.2.3 Specification of cPCI-3534 ............3 1.2.4 Connector Pin Assignment of cPCI-3534 ........4 Overview of cPCI-3544 ............8 1.3.1 What is cPCI-3544?..............8 1.3.2 Feature of cPCI-3544..............8 1.3.3 Specification of cPCI-3544 ............9 1.3.4...
  • Page 9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 10: Chapter 1 Introduction

    Introduction 1.1 About the Serial Communication Modules ♦ serial communication modules intelligent serial input/output multi-port controller modules, which go with the new generation of PC platform CompactPCI. The modules can reduce the frequency for serial communication controller to interrupt main CPU on the mainboard to improve the whole system performance.

  • Page 11: Overview Of Cpci-3534

    1.2 Overview of cPCI-3534 1.2.1 What is cPCI-3534? The cPCI-3534 is an enhanced four ports serial communication module used for Compact-PCI platform. It includes a PGA(Programmable Gate Array) to support the serial communication controller and a 37-pin connector to connect external I/O port from the front panel or using the rear The expansion cable has four standard DB25 or DB9 connectors and one DB37 connector to connect with cPCI-3534 interface card.

  • Page 12: Specification Of Cpci-3534

    1.2.3 Specification of cPCI-3534 ♦ Compliant with PCI Spec.2.1 ♦ Serial communication controller: • 16C550A compatible • 1.8432 ~ 7.3728 MHz ♦ System IO mapping: • Assigned by PCI BIOS • Shared IRQ ♦ Flow control • Xon/Xoff control •...

  • Page 13: Connector Pin Assignment Of Cpci-3534

    Dimension: 160 x 100 mm (6.3 x 3.9 in. ) 3U • Power consumption: +5V @ 1400mA typical 1.2.4 Connector Pin Assignment of cPCI-3534 DB37 female connector pin assignment for cPCI-3534. DB37 Pin No. Signal Name DB37 Pin No. Signal Name RXD1(IN) TXD1(OUT)
  • Page 14 DB25 male connector pin assignment in cPCI-3534 module for RS-232 interface (port A, B and C). DB25 Pin No. Signal Name TXD(OUT) RXD(IN) RTS(OUT) CTS(IN) DSR(IN) DCD(IN) DTR(OUT) DB25 male connector pin assignment in cPCI-3534 module for RS-422/485 interface (port D).
  • Page 15 J2 connector pin assignment in cPCI-3534 module for RS-232/422/485 interface. TXD+ TXD- RXD+ RXD- GND DSRŽ SGŽ DCDŽ DTRŽ FGŽ TXŽ RXŽ RTSŽ CTSŽ GND GND DSR• SG• DCD• DTR• FG• TX• RX• RTS• CTS• GND GND DSRŒ SGŒ DCDŒ DTRŒ...
  • Page 16 RXD+ Receive Data Positive RXD- Receive Data Negative RS-485 D+ : Data Signal Positive Data Signal Negative R-3534 Rear IO Daughter Board The R-3534 rear I/O daughter board provides a rear I/O connection transition, the connector and cable used in the rear is the same as the front.

  • Page 17: Overview Of Cpci-3544

    1.3 Overview of cPCI-3544 1.3.1 What is cPCI-3544? The cPCI-3544 is an enhanced four ports serial communication module for industry communication interface RS-422/485 by Compact-PCI platform. It includes a PGA(Programmable Gate Array) to support the serial communication controller and a 37-pin connector to connect external I/O port from the front panel or using the rear IO.

  • Page 18: Specification Of Cpci-3544

    1.3.3 Specification of cPCI-3544 ♦ Compliant with PCI Spec.2.1 ♦ Serial communication controller: ♦ 16C550A compatible ♦ 1.8432 ~ 7.3728 MHz ♦ System IO mapping: • Assigned by PCI BIOS • Shared IRQ ♦ Flow control • RS-485 auto direction ♦...
  • Page 19 ♦ Storage temperature: -20 ~ 65 °C ♦ Humidity: 10% ~ 95%, non-condensing ♦ Dimension: 160 x 100 mm (6.3 x 3.9 in. ) 3U ♦ Power consumption: +5V @ 1400mA typical 10 • Introduction Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 20: Connector Pin Assignment Of Cpci-3544

    1.3.4 Connector Pin Assignment of cPCI-3544 DB37 female connector pin assignment for cPCI-3544. DB37 Pin No. Signal Name DB37 Pin No. Signal Name 422_RXD1+(IN) 422_TXD1+(OUT) 485_D1+(I/O) 422_RXD1-(IN) 422_TXD1-(OUT) 485_D1-(I/O) GND1 422_RXD2+(IN) 422_TXD2+(OUT) 485_D2+(I/O) 422_RXD2-(IN) 422_TXD2-(OUT) 485_D2-(I/O) GND2 GND3 485_D3-(I/O) 422_TXD3-(OUT) 422_RXDC-(IN) 485_D3+(I/O) 422_TXD3+(OUT)
  • Page 21 J2 connector pin assignment in cPCI-3544 module for RS-422/485 interface. TXD-• TXD+• GND GND• D-• RXD-• D+• RXD+• GND TXD-Ž TXD+Ž GND GNDŽ D-Ž RXD-Ž D+Ž RXD+Ž GND TXD-• TXD+• GND GND• D-• RXD-• D+• RXD+• GND TXD-Œ TXD+Œ GND GNDŒ D-Œ...
  • Page 22 R-3544 Rear IO Daughter Board The R-3544 rear I/O daughter board provides a rear I/O connection transition, the connector and cable used in the rear is the same as the front. DIP Switch and Jumper Setting CARD NO. Port Select SW1-3 PortA PortB PortC PortD...

  • Page 23: Overview Of Cpci-3538

    1.4 Overview of cPCI-3538 1.4.1 What is cPCI-3538? The cPCI-3538 is an enhanced eight ports serial communication card used for cPCI platform. It includes a PGA(Programmable Gate Array), which supports the serial communication controller, and a 62-pin connector which connects external I/O port on the front panel or the rear IO. The expansion cable has eight standard DB25 connectors and one DB62 connector to connect to cPCI-3538 interface card.

  • Page 24: Specification Of Cpci-3538

    1.4.3 Specification of cPCI-3538 ♦ Compliant with PCI Spec.2.1 ♦ Serial communication controller: • 16C550A compatible • 1.8432 ~ 7.3728 MHz ♦ System IO mapping: • Assigned by PCI BIOS • Shared IRQ ♦ Flow control • Xon/Xoff control • RTS/CTS control ♦...
  • Page 25 ♦ Storage temperature: -20 ~ 65 °C ♦ Humidity: 10% ~ 95%, non-condensing ♦ Dimension: 160 x 100 mm (6.3 x 3.9 in. ) 3U ♦ Power consumption: +5V @ 1400mA typical 16 • Introduction Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 26: Connector Pin Assignment Of Cpci-3538

    1.4.4 Connector Pin Assignment of cPCI-3538 DB62 female connector pin assignment for cPCI-3538. DB62 Pin Signal DB62 Pin Signal DB62 Pin Signal Name Name Name TXD1(OUT) TXD2(OUT) RXD1(IN) RXD2(IN) RTS1(OUT) RTS2(OUT) CTS1(IN) CTS2(IN) TXD4(OUT) DSR1(IN) DSR2(IN) RXD4(IN) DTR1(OUT) DTR2(OUT) RTS4(OUT) DCD1(IN) DCD2(IN) CTS4(IN)
  • Page 27 DB9 male connector pin assignment in cPCI-3538 module for RS-232 interface (port A~H). DB25 Pin No. Signal Name TXD(OUT) RXD(IN) RTS(OUT) CTS(IN) DSR(IN) DCD(IN) DTR(OUT) J2 connector pin assignment in cPCI-3538 module for RS-232 interface. DSR“ DCD“ DTR“ RTS“ CTS“ FG“...
  • Page 28 RS-232 Frame Ground Transmit Data Receive Data Request to Send Clear to Send Data Set Ready Signal Ground Data Carrier Detect Data Terminal Ready R-3538 Rear IO Daughter Board The R-3538 rear I/O daughter board provides a rear I/O connection transition, the connector and cable used in the rear are the same as the front.

  • Page 29: Chapter 2 Installation

    2.1 What You Have In addition to this User's Manual, the package includes the following items: ♦ cPCI-3534/3544/3538 Serial Communication Interface Module ♦ Expansion Cable (C425M, C409M or C825M, C809M) ♦...

  • Page 30: Unpacking

    2.2 Unpacking Your serial communication module contains sensitive electronic components that can be easily damaged by static electricity. The module should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat.

  • Page 31: Installation Procedure

    2.3 Installation Procedure Turn off your cPCI computer system. Turn off all accessories (printer, modem, monitor, etc.) connected to computer. Select a cPCI slot. Before handling the serial communication module, discharge any static buildup on your body by touching the metal case of the computer.

  • Page 32: Hardware Configuration

    BIOS. The address assignment is done on a board-by-board basis for all serial communication cards in the system. The jumper SW1-1 for cPCI-3534 and the JP1 for cPCI-3538 is used for the system to recognize the first or second card of the same model in the system if there are two cards of the same on board.

  • Page 33: Software Installation

    <Other> requires disk from manufacturer. When prompted for the path, specify the drive and directory where the NCPA can find the new driver for the card you install. For cPCI-3534, we may specify as follow: X:\NuCOM\CPCI3534\NT4 For cPCI-3544, we may specify as follow:...
  • Page 34 When you need to install two same type serial communication cards in one NT system, you must confirm to let one card’s SW1-1 is ON while the other card’s SW1-1 is OFF for cPCI-3534 and JP1 is ON while the other card’s JP1 is OFF for cPCI-3538. The same manner can be apply to cPCI-3544 with SW1-3 adjusting to different number.

  • Page 35: Windows 95/98 Installation

    You do not have to install the driver again, Windows 95/98 will add the COM port automatically. You can install up to two cPCI-3534/3538 cards in one 95/98 system. When you need to install two same type cards in one 95/98 system, you must confirm to let one card’s switch is ON, and the other...

  • Page 36: For Unix, Linux And Qnx User

    assigned to serial communication card, you might have wrong operation. 2.5.3 For UNIX, LINUX and QNX user You can download the .tar driver from ADLINK website or contact the dealer near you for service and support. Installation • 27 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 37: Windows 95/98/Nt Utility Diagram For Cpci-3544

    2.5.4 Windows 95/98/NT Utility Diagram for cPCI-3544 The cPCI-3534/3538 doesn’t need any configuration utility. It just likes the system COM ports. The cPCI-3544 is a 4-Port RS-422/485 serial communication module. It supports the software configuration for RS-422/485. When choosing the RS-422 mode, the RS-485 port would be disabled automatically.
  • Page 38 Existing Cards and its port distribution The first one port maps to system port. Port mode When checked, the configuration will be true after rebooting. If it was not checked, after rebooting, the port mode will follow the DIP switch configuration. Installation •...

  • Page 39: Ap Examples

    Please follow the installation guide above first. 2.6.1 Dos Environment For cPCI-3534/3538, please refer to the README file includes in the driver. The cPCI-3544 doesn’t provide the DOS library, if you want to program by yourself. Contact the dealer from whom you purchase the product, or the service mailbox in ADLink.

  • Page 40: Product Warranty/Service

    Product Warranty/Service ADLINK warrants that equipment furnished will be free from defects in material and workmanship for a period of one year from the date of shipment. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation. This warranty shall not apply to equipment that has been previously repaired or altered outside our plant in any way as to, in the judgment of the manufacturer, affect its reliability.
  • Page 41 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
