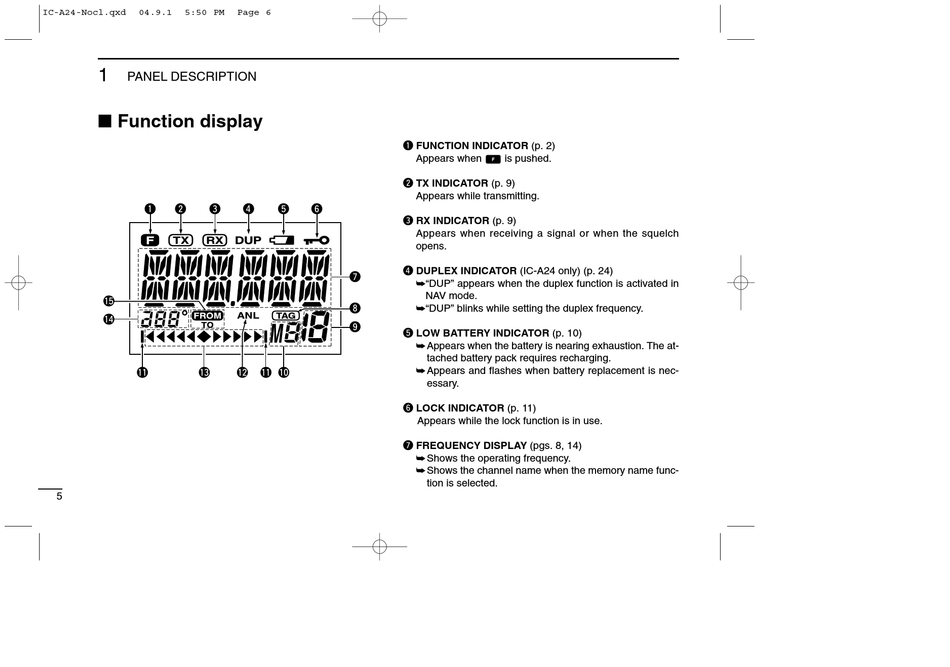

PANEL DESCRIPTION

I Function display

q w e
!5
!4
!1 !3
5
Page 6
q FUNCTION INDICATOR (p. 2)
w TX INDICATOR (p. 9)
r t y
e RX INDICATOR (p. 9)
r DUPLEX INDICATOR (IC-A24 only) (p. 24)
u
i
o
t LOW BATTERY INDICATOR (p. 10)
!2 !1 !0
y LOCK INDICATOR (p. 11)
u FREQUENCY DISPLAY (pgs. 8, 14)
Appears when is pushed.
Appears while transmitting.
Appears when receiving a signal or when the squelch
opens.
➥"DUP" appears when the duplex function is activated in
NAV mode.
➥"DUP" blinks while setting the duplex frequency.
➥ Appears when the battery is nearing exhaustion. The at-
tached battery pack requires recharging.
➥ Appears and flashes when battery replacement is nec-
essary.
Appears while the lock function is in use.
➥ Shows the operating frequency.
➥ Shows the channel name when the memory name func-
tion is selected.
