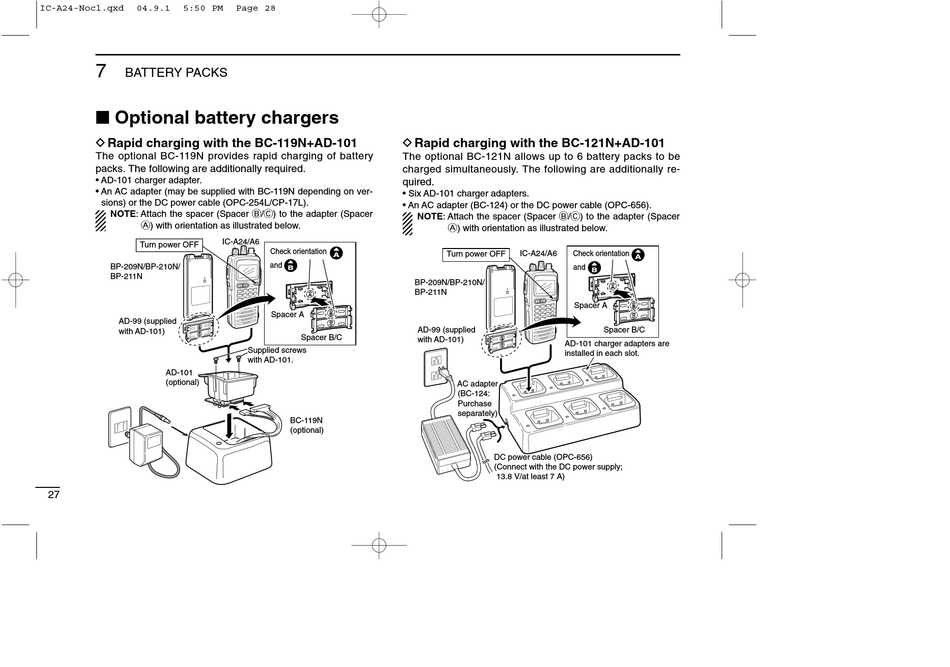

BATTERY PACKS

I Optional battery chargers

D Rapid charging with the BC-119N+AD-101
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-101 charger adapter.
• An AC adapter (may be supplied with BC-119N depending on ver-
sions) or the DC power cable (OPC-254L/CP-17L).
NOTE: Attach the spacer (Spacer B/C) to the adapter (Spacer
A) with orientation as illustrated below.
Turn power OFF
BP-209N/BP-210N/
BP-211N
AD-99 (supplied
with AD-101)
AD-101
(optional)
27
Page 28
IC-A24/A6
Check orientation
and
Spacer A
Spacer B/C
Supplied screws
with AD-101.
BC-119N
(optional)
D Rapid charging with the BC-121N+AD-101
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-101 charger adapters.
• An AC adapter (BC-124) or the DC power cable (OPC-656).
NOTE: Attach the spacer (Spacer B/C) to the adapter (Spacer
A) with orientation as illustrated below.
IC-A24/A6 Check orientation
Turn power OFF
and
BP-209N/BP-210N/
BP-211N
Spacer A
AD-99 (supplied
with AD-101)
AD-101 charger adapters are
installed in each slot.
AC adapter
(BC-124:
Purchase
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
Spacer B/C
