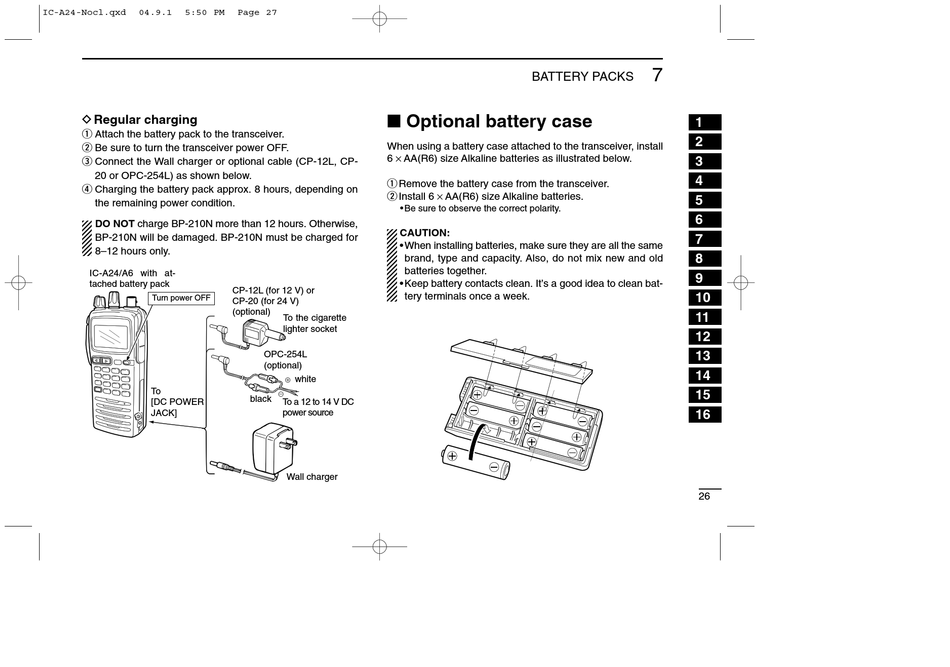

D Regular charging
q Attach the battery pack to the transceiver.
w Be sure to turn the transceiver power OFF.
e Connect the Wall charger or optional cable (CP-12L, CP-
20 or OPC-254L) as shown below.
r Charging the battery pack approx. 8 hours, depending on
the remaining power condition.
DO NOT charge BP-210N more than 12 hours. Otherwise,
BP-210N will be damaged. BP-210N must be charged for
8–12 hours only.
IC-A24/A6 with at-
tached battery pack
Turn power OFF
To
[DC POWER
JACK]
Page 27

I Optional battery case

When using a battery case attached to the transceiver, install
6 × AA(R6) size Alkaline batteries as illustrated below.
q Remove the battery case from the transceiver.
w Install 6 × AA(R6) size Alkaline batteries.
• Be sure to observe the correct polarity.
CAUTION:
• When installing batteries, make sure they are all the same
brand, type and capacity. Also, do not mix new and old
batteries together.
• Keep battery contacts clean. It's a good idea to clean bat-
CP-12L (for 12 V) or
tery terminals once a week.
CP-20 (for 24 V)
(optional)
To the cigarette
lighter socket
OPC-254L
(optional)
white
black
To a 12 to 14 V DC
power source
Wall charger
