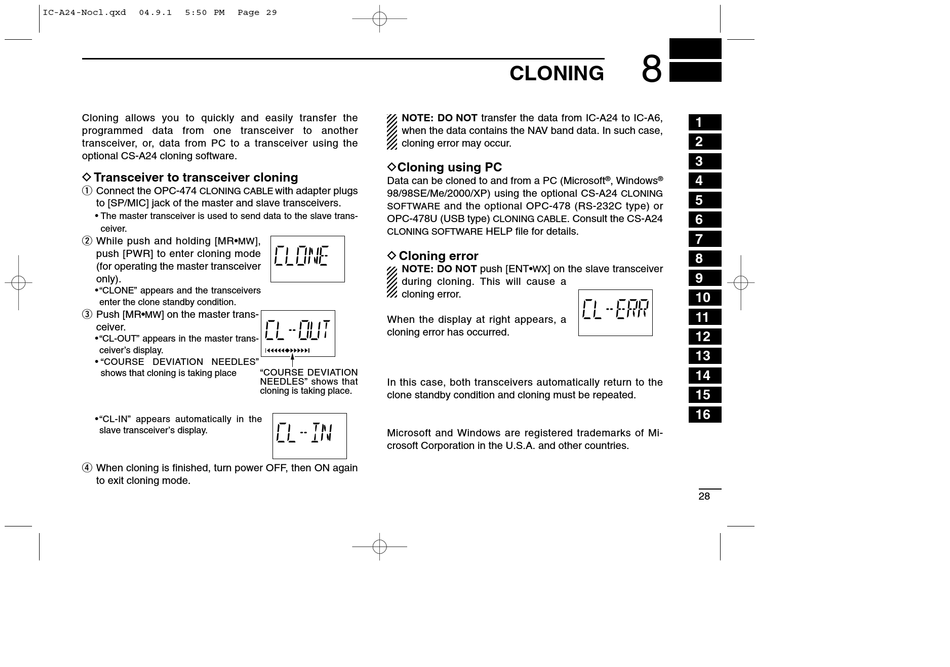

Cloning allows you to quickly and easily transfer the
programmed data from one transceiver to another
transceiver, or, data from PC to a transceiver using the
optional CS-A24 cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474
CLONING CABLE
to [SP/MIC] jack of the master and slave transceivers.
• The master transceiver is used to send data to the slave trans-
ceiver.
w While push and holding [MR•
push [PWR] to enter cloning mode
(for operating the master transceiver
only).
• "CLONE" appears and the transceivers
enter the clone standby condition.
e Push [MR•
] on the master trans-
MW
ceiver.
• "CL-OUT" appears in the master trans-
ceiver's display.
• "COURSE DEVIATION NEEDLES"
shows that cloning is taking place
• "CL-IN" appears automatically in the
slave transceiver's display.
r When cloning is finished, turn power OFF, then ON again
to exit cloning mode.
Page 29
NOTE: DO NOT transfer the data from IC-A24 to IC-A6,
when the data contains the NAV band data. In such case,
cloning error may occur.
DCloning using PC
Data can be cloned to and from a PC (Microsoft
with adapter plugs
98/98SE/Me/2000/XP) using the optional CS-A24
SOFTWARE
OPC-478U (USB type)
CLONING SOFTWARE
],
MW
D Cloning error
NOTE: DO NOT push [ENT•
during cloning. This will cause a
cloning error.
When the display at right appears, a
cloning error has occurred.
"COURSE DEVIATION
NEEDLES" shows that
In this case, both transceivers automatically return to the
cloning is taking place.
clone standby condition and cloning must be repeated.
Microsoft and Windows are registered trademarks of Mi-
crosoft Corporation in the U.S.A. and other countries.

CLONING

®
, Windows
CLONING
and the optional OPC-478 (RS-232C type) or
. Consult the CS-A24
CLONING CABLE
HELP file for details.
] on the slave transceiver
